Section 476 (Power Steering)
>>
Power Steering Link ASSY
>>
Components
Power Steering Link ASSY: Components
WARNING:
This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

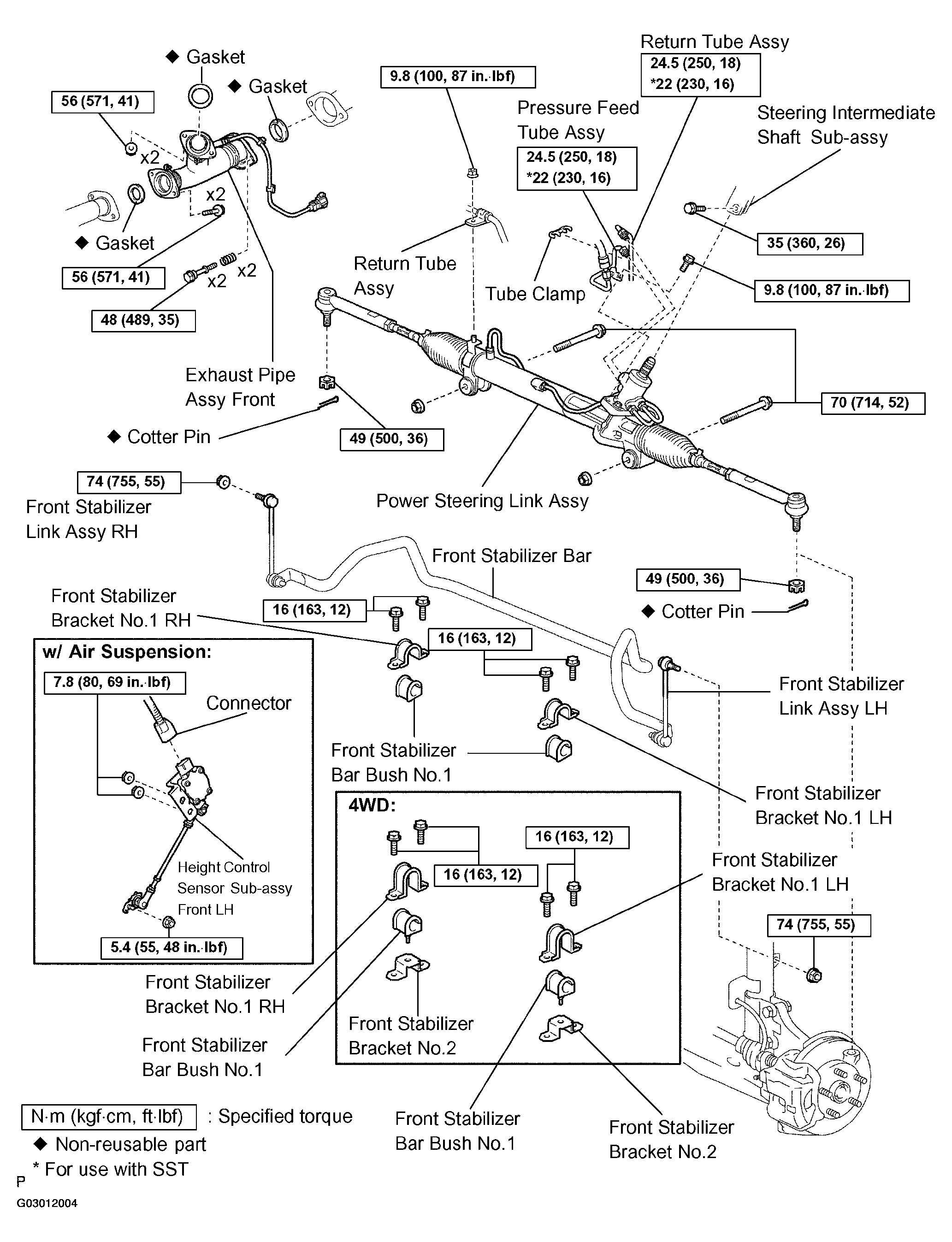

Fig 1: Identifying Power Steering Link Assy Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

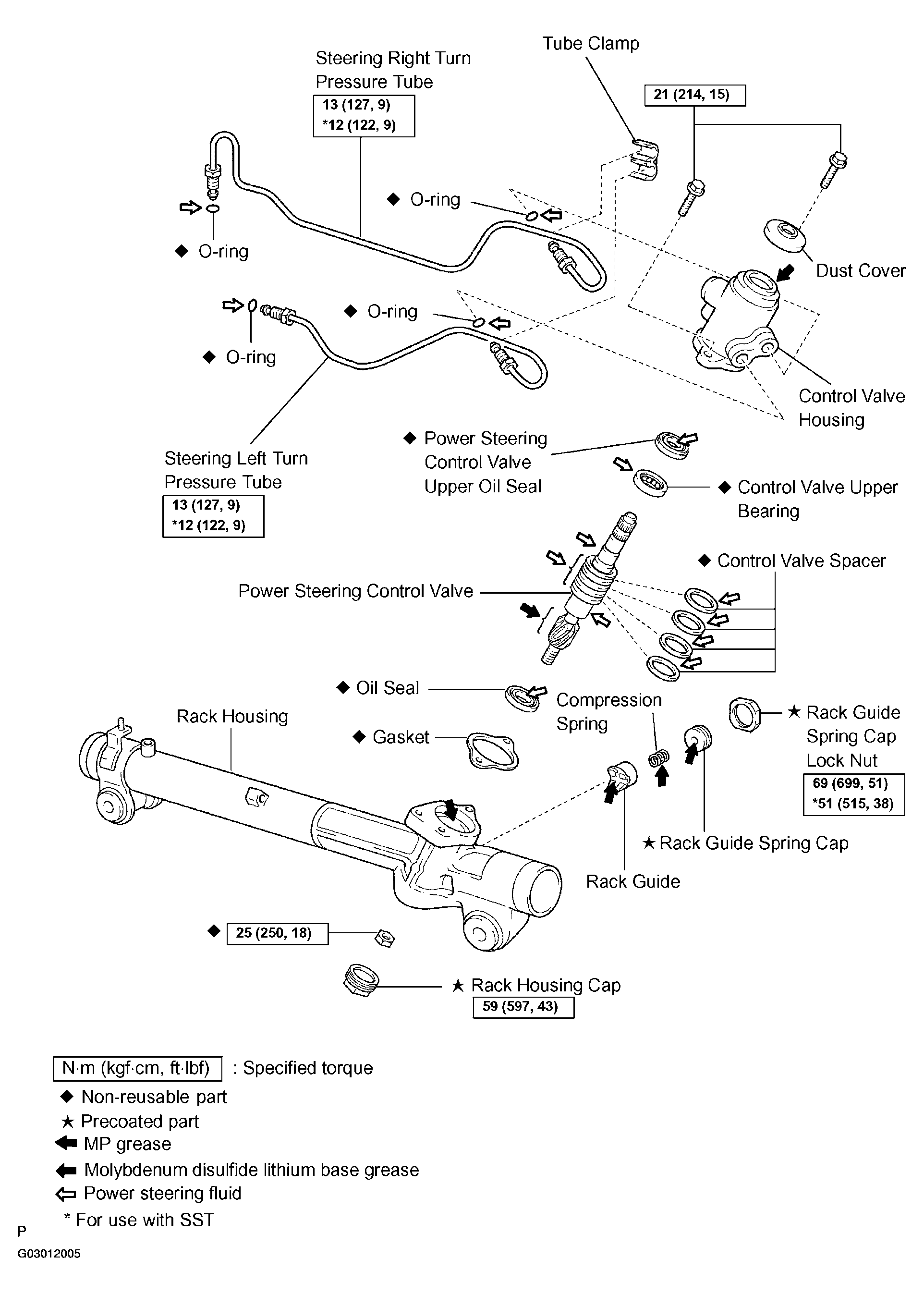

Fig 2: Identifying Power Steering Link Assy Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

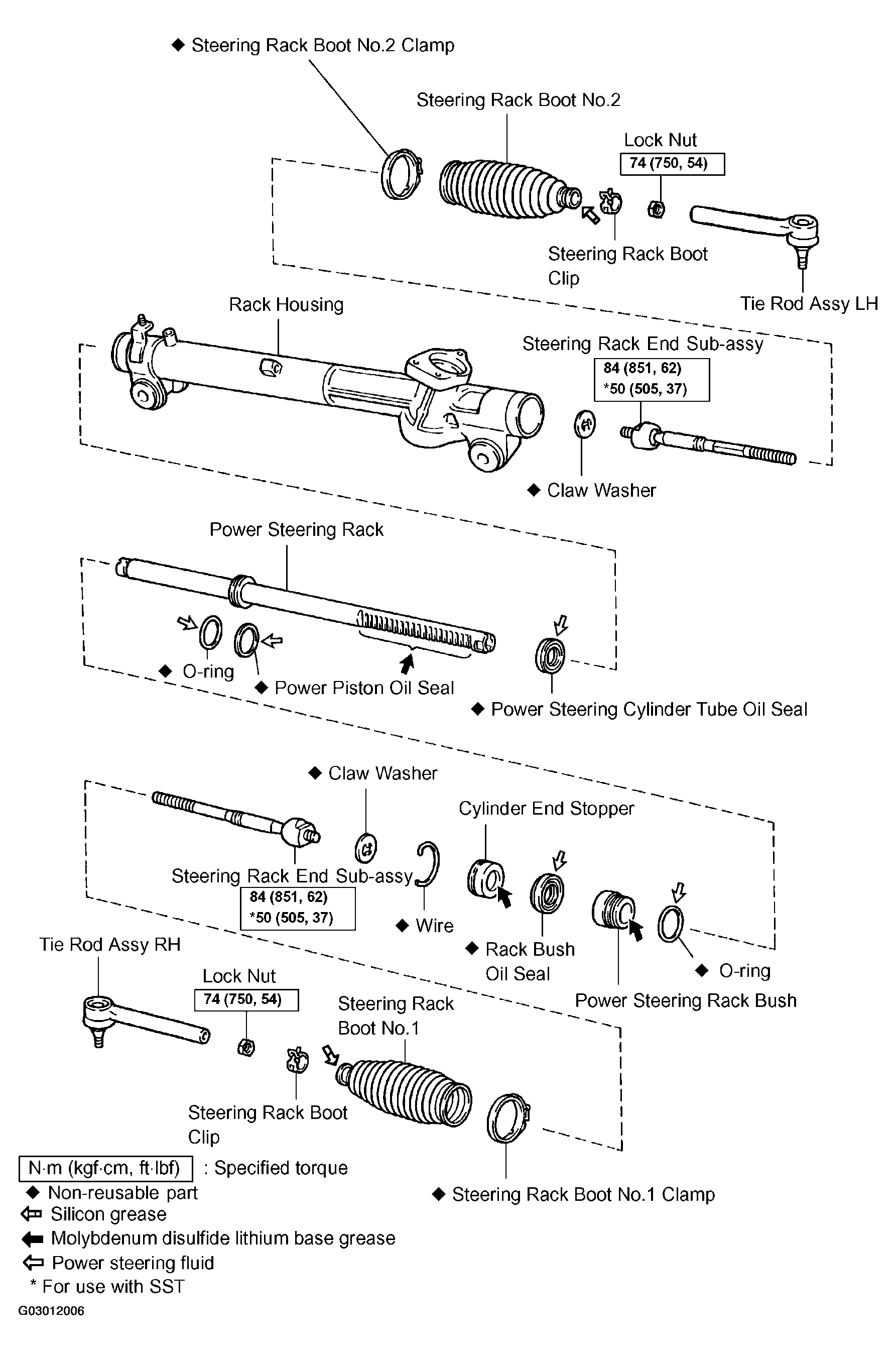

Fig 3: Identifying Power Steering Link Assy Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
