Section 130 (Power Door Lock Control System - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

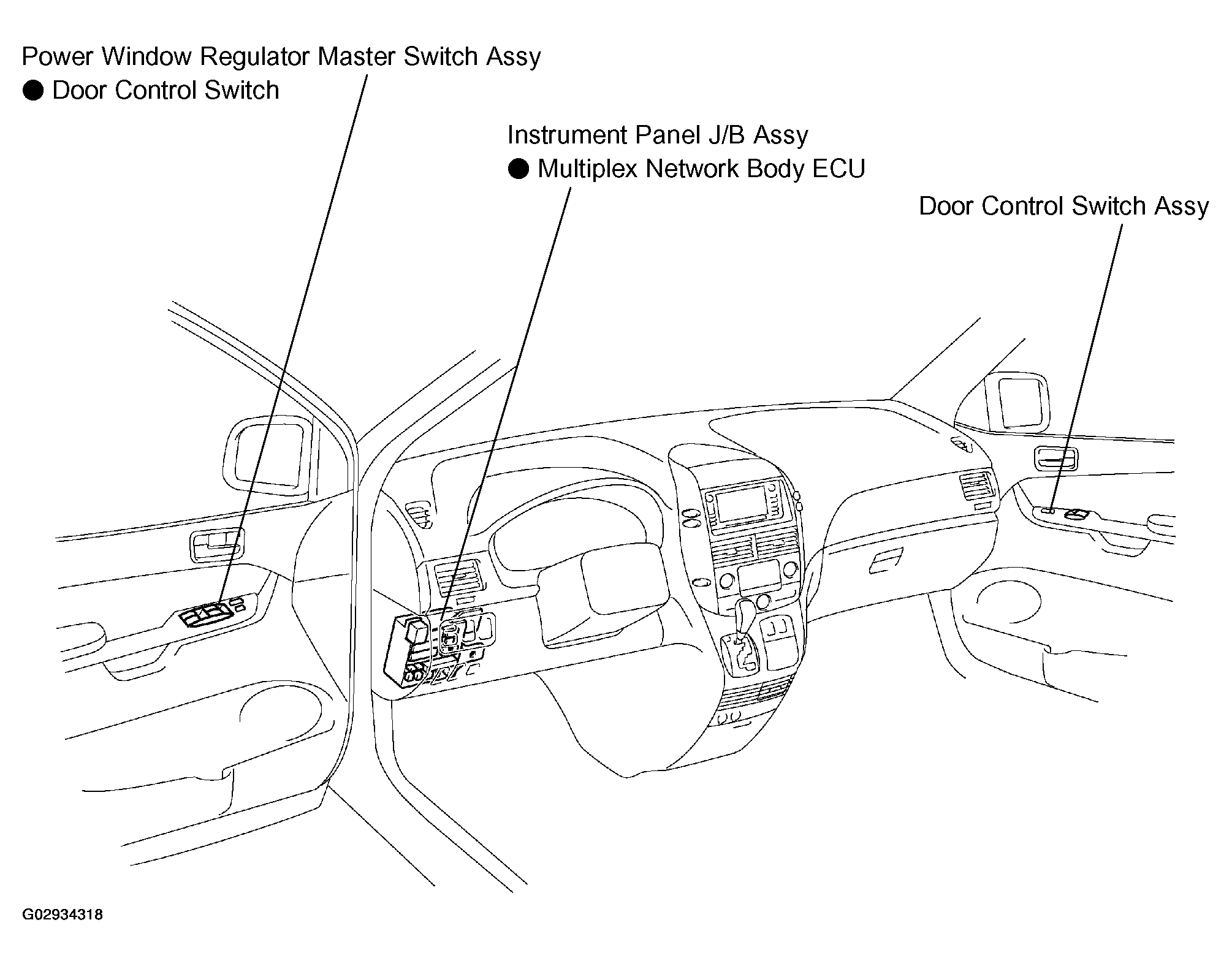

Fig 1: Identifying Power Door Lock Control System Components (1 Of 2)
G02934318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

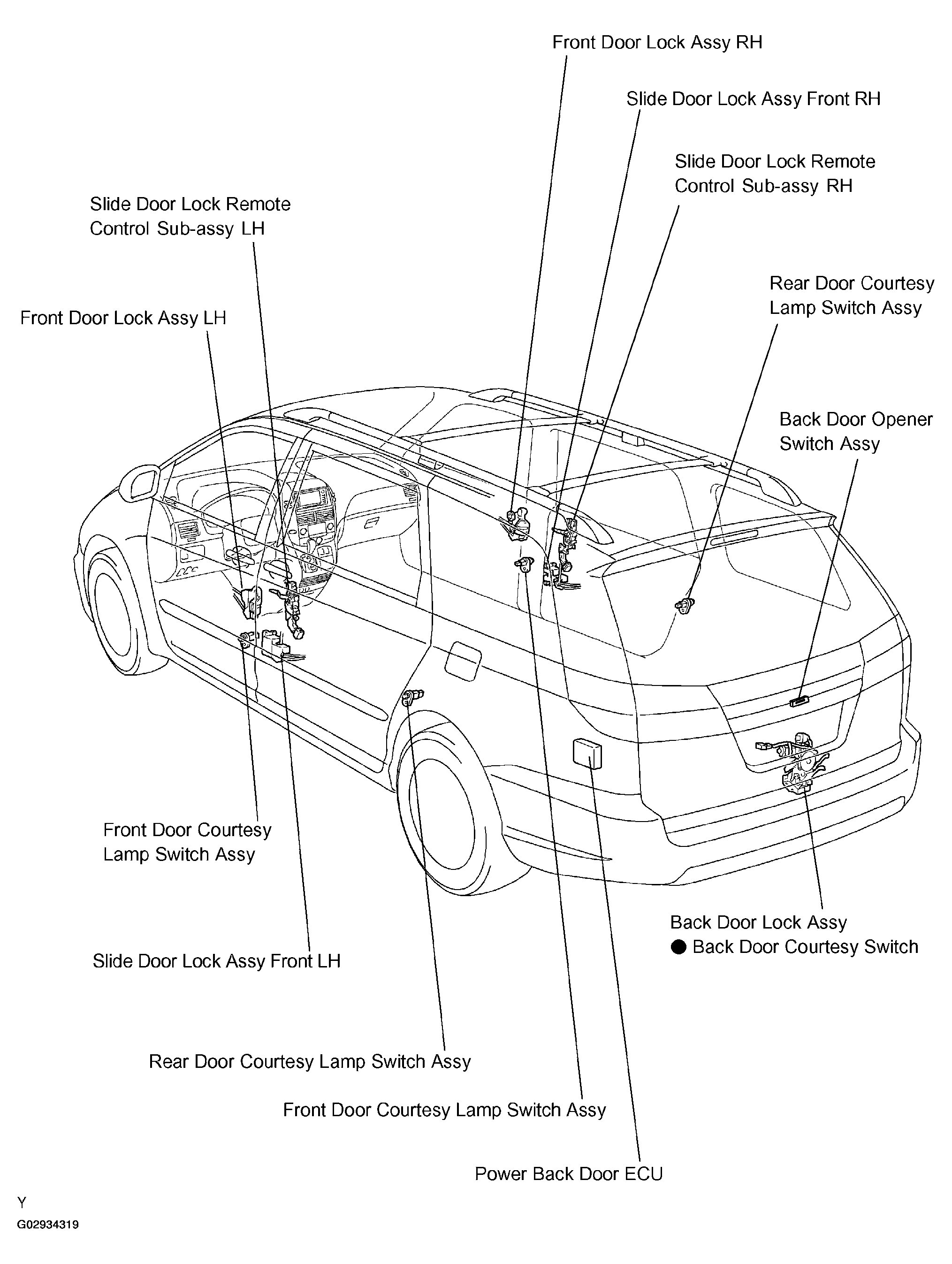

Fig 2: Identifying Power Door Lock Control System Component (2 Of 2)
G02934319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
