Engine Compartment Junction & Relay Blocks
NOTE:

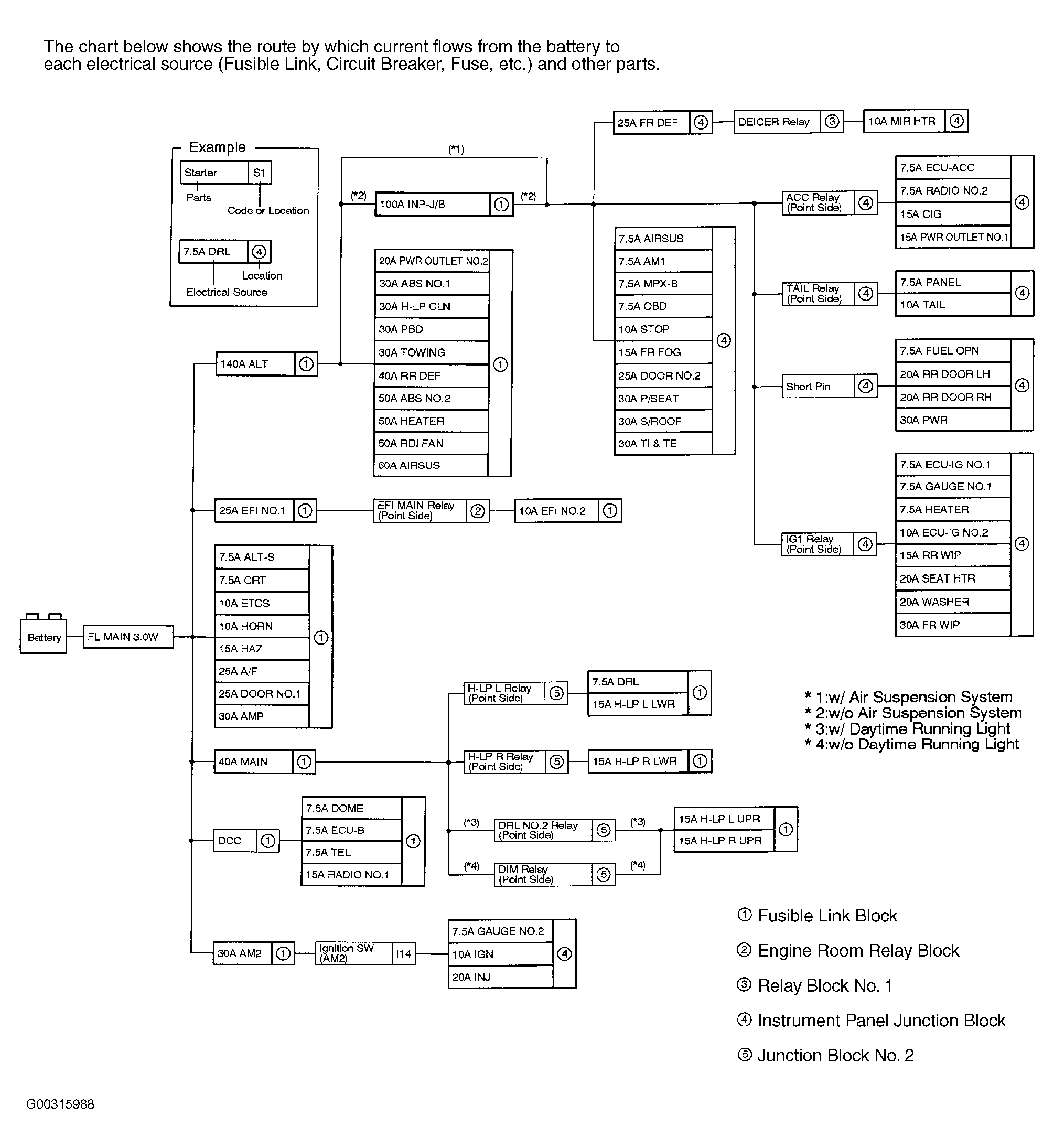

For engine compartment fusible link and relay block locations, see Fig 1. For description of electrical power distribution, see Fig 2.
Component Locations

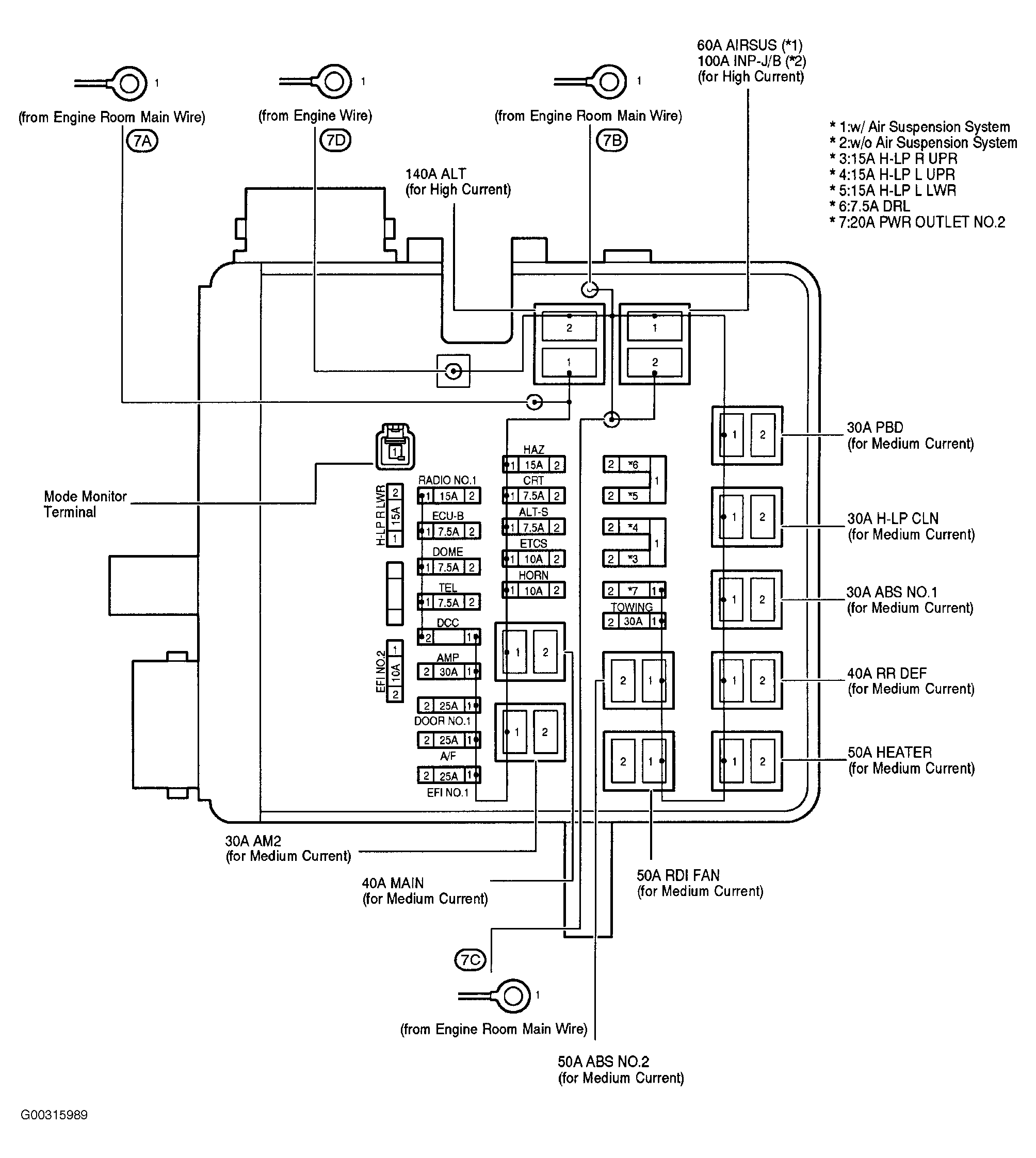

- Engine compartment fusible link block is located at left inner fender panel. For identification of fuses and relays, see Fig 3. For identification of protected circuits, see table below. For wiring diagrams of circuits, see POWER DISTRIBUTION in appropriate SYSTEM WIRING DIAGRAMS article.

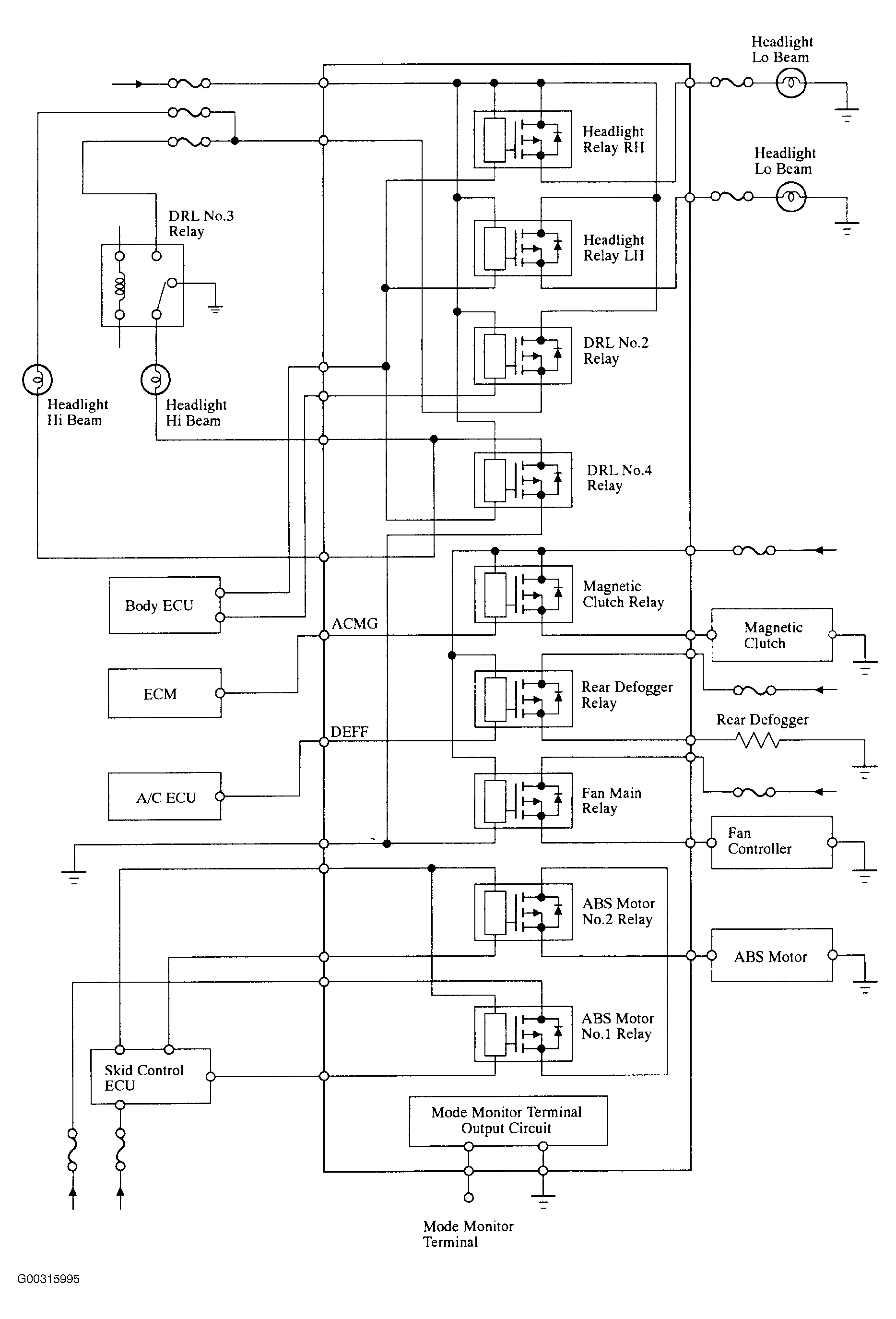

- Engine compartment junction block No.2 (power distributor) is located at left inner fender panel. For identification of semiconductor relays, see Fig 4. For wiring diagrams of circuits, see POWER DISTRIBUTION in appropriate SYSTEM WIRING DIAGRAMS article.
- Engine compartment relay block is located at left inner fender panel. For identification of relays, see Fig 5. For wiring diagrams of circuits, see POWER DISTRIBUTION in appropriate SYSTEM WIRING DIAGRAMS article.
- Engine compartment relay block No. 3 is located at right inner fender panel. For identification of relays, see Fig 6. For wiring diagrams of circuits, see POWER DISTRIBUTION in appropriate SYSTEM WIRING DIAGRAMS article.
NOTE:
In 2004, manufacturer converted some circuits to semiconductor relays that are located in the power distributor. Power distributor has a protective mode that engages when overcurrent or overheating is sensed. Protective mode stops operation of all semiconductor relays while protective mode is engaged. Except for the rear defrost relay circuit, when protective mode disengages, all operation returns to normal until protective mode is reengaged. When protective mode engages, rear defrost circuit remains off until switch is manually powered on in the passenger compartment. To test for protective mode, locate the mode monitor terminal in fusible link block and monitor voltage. See Fig 3. Zero volts protective mode is engaged. 6 Volts is normal mode.
ENGINE COMPARTMENT RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Headlight Cleaner Control Relay |
ENGINE COMPARTMENT FUSIBLE LINK BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | CRT | Audio System (Except MARK LEVINSON) Audio System (MARK LEVINSON) LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) Seat Belt Warning |
| 7.5A | DOME | Air Suspension System Combination Meter Headlight Illumination Interior Light Key Reminder Multiplex Communication System (BEAN) Theft Deterrent Wireless Door Lock Control |
| 7.5A | DRL | Headlight Multiplex Communication System (BEAN) |
| 7.5A | ECU-B | Automatic Air Conditioning Automatic Light Control Back Door Opener (w/o Power Back Door) Combination Meter Door Lock Control Dynamic Laser Cruise Control Front Fog Light Front Wiper and Washer (w/ Auto Wiper System) Garage Door Opener Headlight Illumination Interior Light Key Reminder LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) Light Auto Turn Off System Moon Roof Multi Display (w/o LEXUS Navigation System) Multiplex Communication System (BEAN) Multiplex Communication System (CAN) Power Back Door Power Seat (Driver's Seat w/ Driving Position Memory) Power Tilt and Power Telescopic Power Window Remote Control Mirror and Mirror Heater (w/ Driving Position Memory) |
| 7.5A | ECU-B | SRS Theft Deterrent Trailer Towing VSC and Tire Pressure Warning System Wireless Door Lock Control |
| 7.5A | TEL | LEXUS Link System (Mayday System) |
| 10A | EFI NO.2 | Electronically Controlled Transmission and A/T Indicator Engine Control |
| 10A | ETCS | Cruise Control Dynamic Laser Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control |
| 10A | HORN | Horn Multiplex Communication System (BEAN) Theft Deterrent |
| 15A | HAZ | Trailer Towing Turn Signal and Hazard Warning Light |
| 15A | H-LP L LWR | Headlight Multiplex Communication System (BEAN) |
| 15A | H-LP L UPR | Headlight Multiplex Communication System (BEAN) |
| 15A | H-LP R LWR | Headlight Multiplex Communication System (BEAN) |
| 15A | H-LP R UPR | Headlight Multiplex Communication System (BEAN) |
| 15A | RADIO NO.1 | Audio System (Except MARK LEVINSON) Audio System (MARK LEVINSON) LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) |
| 20A | PWR OUTLET NO.2 | Power Outlet |
| 25A | A/F | Engine Control |
| 25A | DOOR NO.1 | Automatic Light Control Back Door Opener (w/o Power Back Door) Door Lock Control Front Fog Light Front Wiper and Washer (w/ Auto Wiper System) Headlight Interior Light Key Reminder Light Auto Turn Off System Moon Roof Multi Display (w/o LEXUS Navigation System) Multiplex Communication System (BEAN) Power Back Door |
| 25A | DOOR NO.1 | Power Seat (Driver's Seat w/ Driving Position Memory) Power Tilt and Power Telescopic Power Window Remote Control Mirror and Mirror Heater (w/ Driving Position Memory) Theft Deterrent Wireless Door Lock Control |
| 25A | EFI NO.1 | Cruise Control Dynamic Laser Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control |
| 30A | ABS NO.1 | Dynamic Laser Cruise Control VSC and Tire Pressure Warning System |
| 30A | AMP | Audio System (Except MARK LEVINSON) Audio System (MARK LEVINSON) |
| 30A | AM2 | Ignition Starting |
| 30A | H-LP CLN | Headlight Cleaner |
| 30A | PBD | Power Back Door |
| 30A | TOWING | Trailer Towing |
| 40A | MAIN | Adaptive Front-Lighting System Automatic Light Control Headlight Headlight Beam Level Control Headlight Cleaner Light Auto Turn Off System Multiplex Communication System (BEAN) |
| 40A | RR DEF | Rear Window Defogger |
| 50A | ABS NO.2 | Dynamic Laser Cruise Control VSC and Tire Pressure Warning System |
| 50A | HEATER | Automatic Air Conditioning |
| 50A | RDI FAN | Radiator Fan |
| 60A | AIRSUS | Air Suspension System |
| 100A | INP-J/B | Automatic Light Control Illumination Light Auto Turn Off System Multiplex Communication System (BEAN) Starting Taillight Theft Deterrent Trailer Towing |
| 140A | ALT | Automatic Air Conditioning Automatic Light Control |
| 140A | ALT | Charging Dynamic Laser Cruise Control Illumination Light Auto Turn Off System Multiplex Communication System (BEAN) Radiator Fan Starting Taillight Theft Deterrent Trailer Towing VSC and Tire Pressure Warning System |
POWER DISTRIBUTOR SEMICONDUCTOR RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| DRL No. 3 Relay |
| Headlight Relay RH |
| Headlight Relay LH |
| DRL No. 2 Relay |
| DRL No. 4 Relay |
| Magnetic Clutch Relay |
| Rear Defogger Relay |
| Fan Main Relay |
| ABS Motor No. 2 Relay |
| ABS Motor No. 1 Relay |
ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| EFI Main Relay |
| Horn Relay |
| Starter Relay |
| BRK Relay |
| A/F Relay |
| Air SUS Relay |
ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Heater Relay |
| DRL No.3 Relay |
