Steering Pad Switch LH: Replacement

HINT:

• COMPONENTS: See AIR BAG RESTRAINT SYSTEMS
• LOCATION : See

1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG RESTRAINT SYSTEMS  )
2. REMOVE HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
3. REMOVE STEERING PAD SWITCH LH

1. Disconnect the connector.
2. Remove the screw.

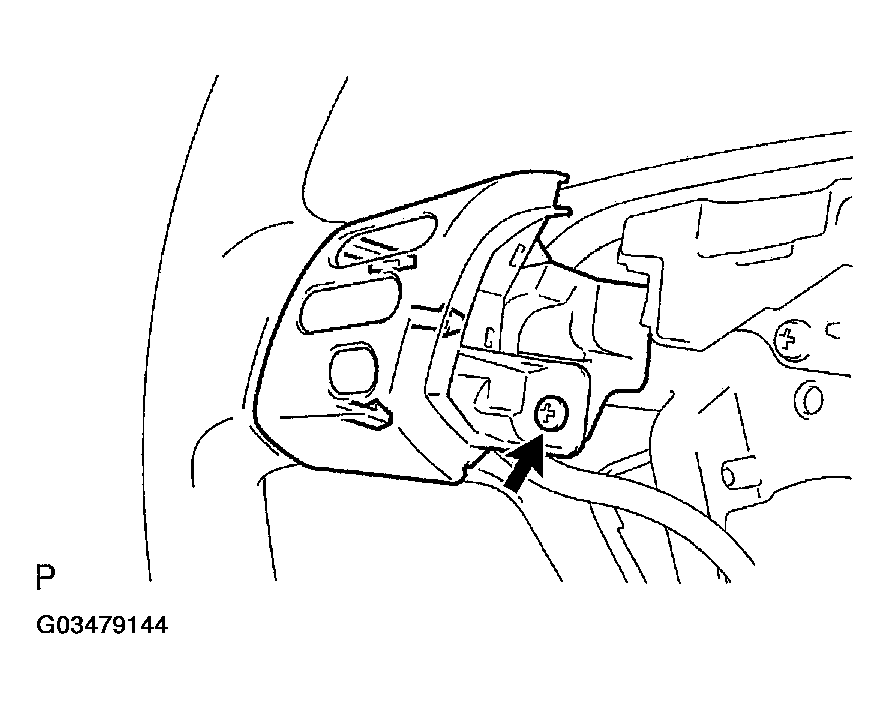

Fig 1: Removing Steering Pad Switch LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws and the pin.
4. Remove the steering pad switch LH.
