Steering Pad Switch ASSY: Replacement

HINT

• COMPONENTS: See AIR BAG RESTRAINT SYSTEMS
• LOCATION : See

1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG RESTRAINT SYSTEMS  )
2. REMOVE HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
3. REMOVE STEERING PAD SWITCH ASSY

1. Disconnect the connector.
2. Remove the steering pad switch LH (SeeSTEERING PAD SWITCH LH  ).
3. Remove the screw.

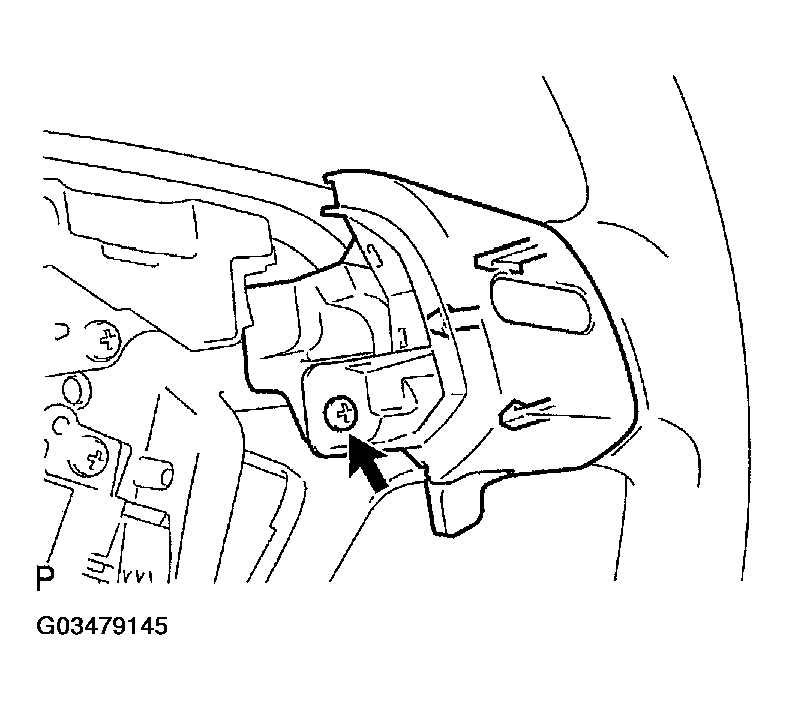

Fig 1: Removing Steering Pad Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the 2 claws and the pin.
5. Remove the steering pad switch assy.
