Radio Receiver ASSY: Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL (See AIR BAG RESTRAINT SYSTEMS )
REMOVE SHIFT LEVER KNOB SUB-ASSY (See OVERHAUL )
REMOVE CONSOLE PANEL UPPER FRONT (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REPLACEMENT )

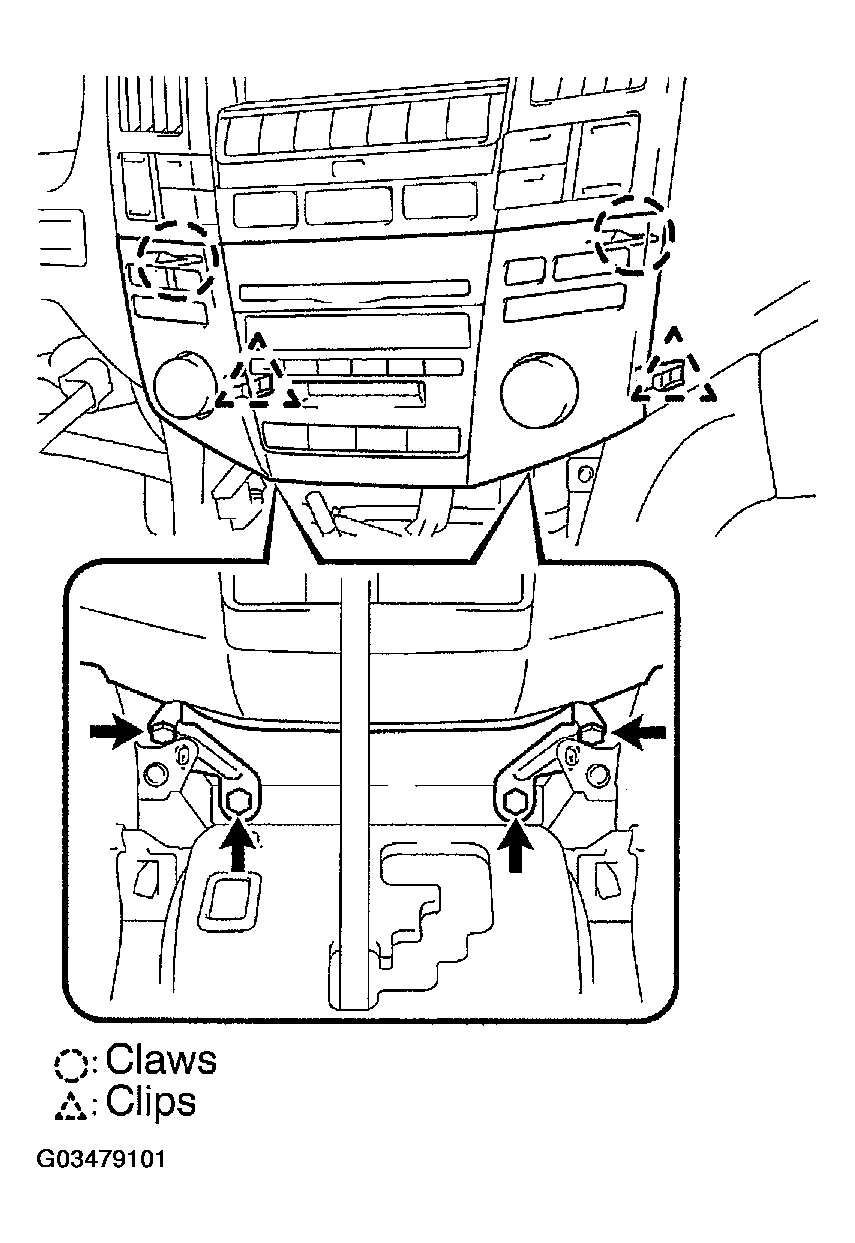

REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
1. Remove the 4 bolts.
2. Disengage the 2 claws and the 2 clips.
3. Disconnect the connector.
4. Remove the radio receiver assembly w/ bracket.
REMOVE RADIO BRACKET NO.1
1. Remove the 3 screws and the radio bracket No.1.

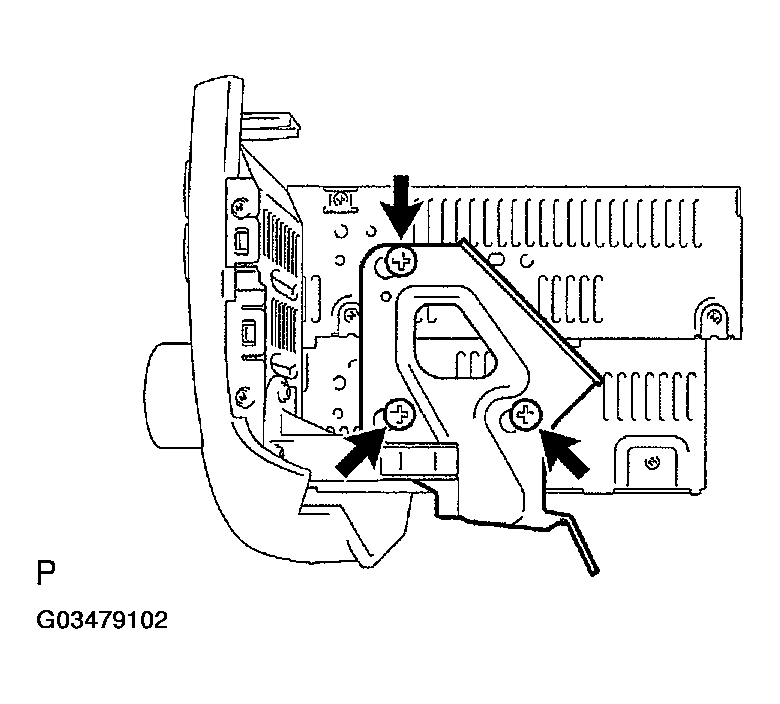

  Fig 2: Removing Radio Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO.2
1. Remove the 3 screws and the radio bracket No.2.

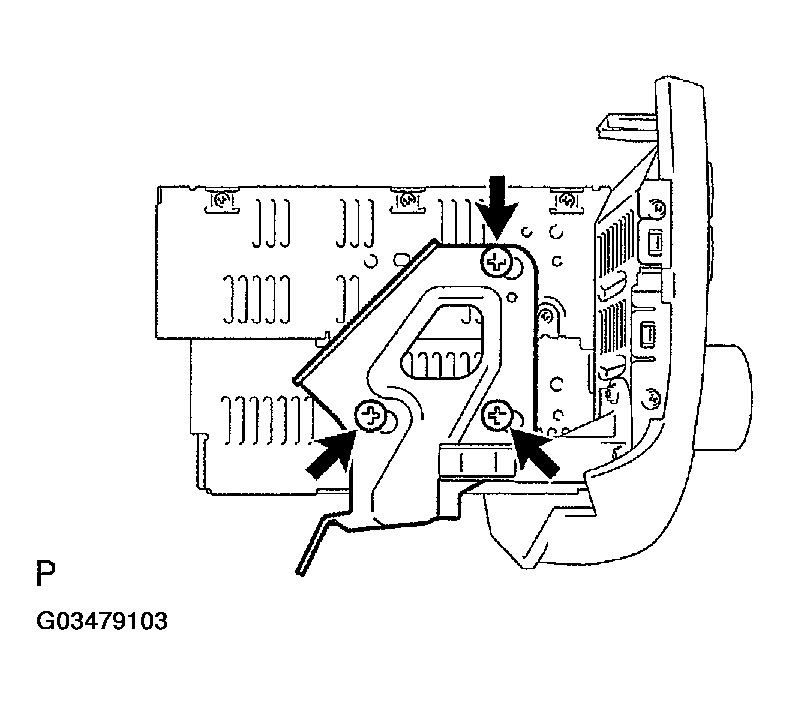

  Fig 3: Removing Radio Bracket No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSY
