Power Point Socket ASSY RR: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE POWER POINT SOCKET ASSY RR

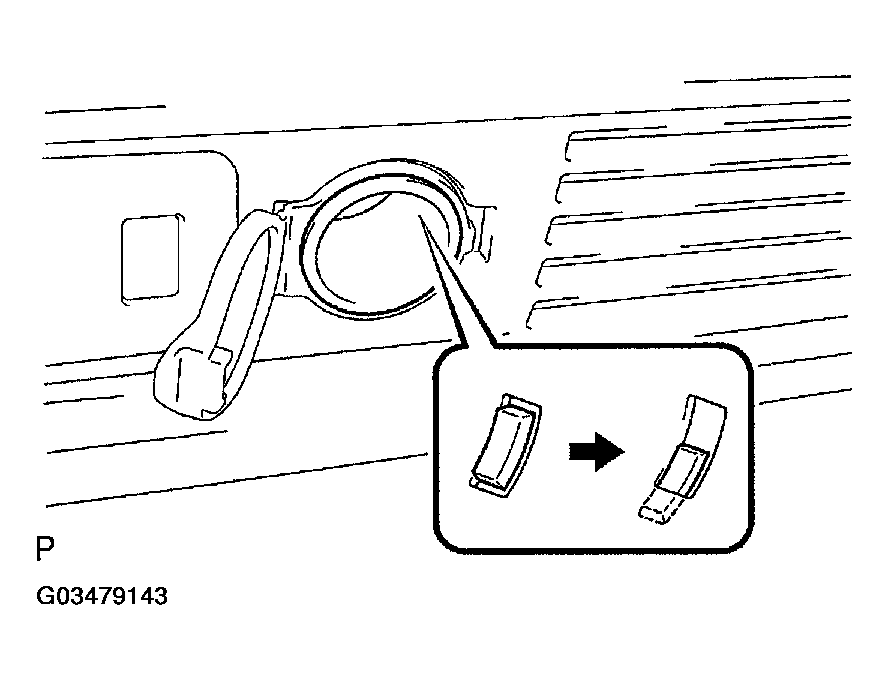

   1. Turn the socket counterclockwise as shown in Fig 1 .
   Fig 1: Turning Socket
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the claw between the socket and the power point socket cover, and push out the socket.
2. INSTALL POWER POINT SOCKET ASSY RR
   1. Align the socket with the notch on the power point socket cover, push in the power point socket assy as hard as possible to install it.
