Mayday ASSY: Replacement

HINT:

• COMPONENTS:

  ROOF HEADLINING ASSY, see COMPONENTS , SEAT ASSY LH, see COMPONENTS , SEAT ASSY RH, see COMPONENTS

• LOCATION : See

1. REMOVE REAR DOOR SCUFF PLATE RH (See  REPLACEMENT  )
2. REMOVE REAR DOOR SCUFF PLATE LH
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See  REPLACEMENT  )
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5. REMOVE DECK BOARD SUB-ASSY (See  REPLACEMENT  )
6. REMOVE REAR SEAT ASSY RH (4-2-4 SPLIT SEAT TYPE) (See  OVERHAUL  )
7. REMOVE REAR SEAT ASSY LH (4-2-4 SPLIT SEAT TYPE) (See  OVERHAUL  )
8. REMOVE TONNEAU COVER ASSY
9. REMOVE DECK FLOOR BOX FRONT (See  REPLACEMENT  )
10. REMOVE DECK FLOOR BOX REAR (See  REPLACEMENT  )
11. REMOVE DECK BOARD SUB-ASSY NO.2 (See  REPLACEMENT  )
12. REMOVE DECK BOARD SUB-ASSY NO.3
13. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
14. REMOVE DECK SIDE TRIM BOX RH (See  REPLACEMENT  )
15. REMOVE DECK SIDE TRIM BOX LH
16. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
17. REMOVE REAR FLOOR FINISH SIDE PLATE RH (See  REPLACEMENT  )
18. REMOVE REAR FLOOR FINISH SIDE PLATE LH
19. REMOVE DECK SIDE TRIM COVER RH (See  REPLACEMENT  )
20. REMOVE DECK SIDE TRIM COVER LH
21. REMOVE REAR SEAT SIDE COVER RH (See  OVERHAUL  )
22. REMOVE REAR SEAT SIDE COVER LH
23. REMOVE ROPE HOOK (See  REPLACEMENT  )
24. REMOVE DECK TRIM SIDE PANEL ASSY RH (See  REPLACEMENT  )
25. REMOVE DECK TRIM SIDE PANEL ASSY LH
26. REMOVE REAR SEAT SUB FLOOR PANEL ASSY
    1. Remove the 3 bolts, the 3 nuts and the rear seat sub floor panel assy.
27. REMOVE MAYDAY ASSY
    1. Disconnect the connector.

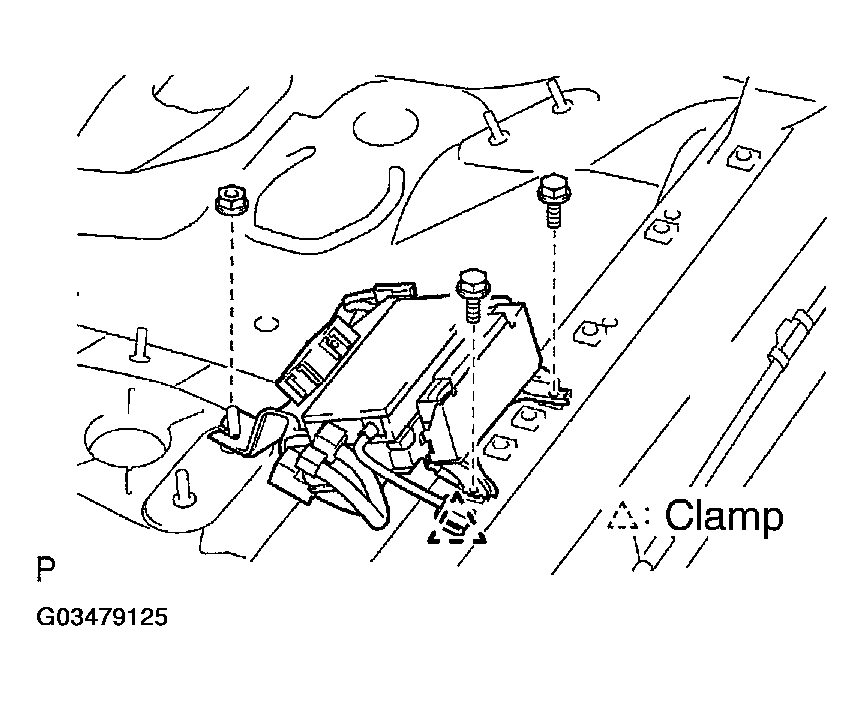

    Fig 1: Removing Mayday Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 bolts and the nut.
    4. Remove the mayday assy.
28. INSTALL REAR SEAT ASSY RH (4-2-4 SPLIT SEAT TYPE) (See  OVERHAUL  )
29. INSTALL REAR SEAT ASSY LH (4-2-4 SPLIT SEAT TYPE) (See  OVERHAUL  )
