Cigarette Lighter ASSY: Replacement

HINT:

LOCATION : See

1. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  OVERHAUL  )
2. REMOVE CONSOLE PANEL UPPER FRONT (See  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REPLACEMENT  )
4. REMOVE CIGARETTE LIGHTER COVER
   1. Disengage the 2 claws, and remove the cigarette lighter cover.

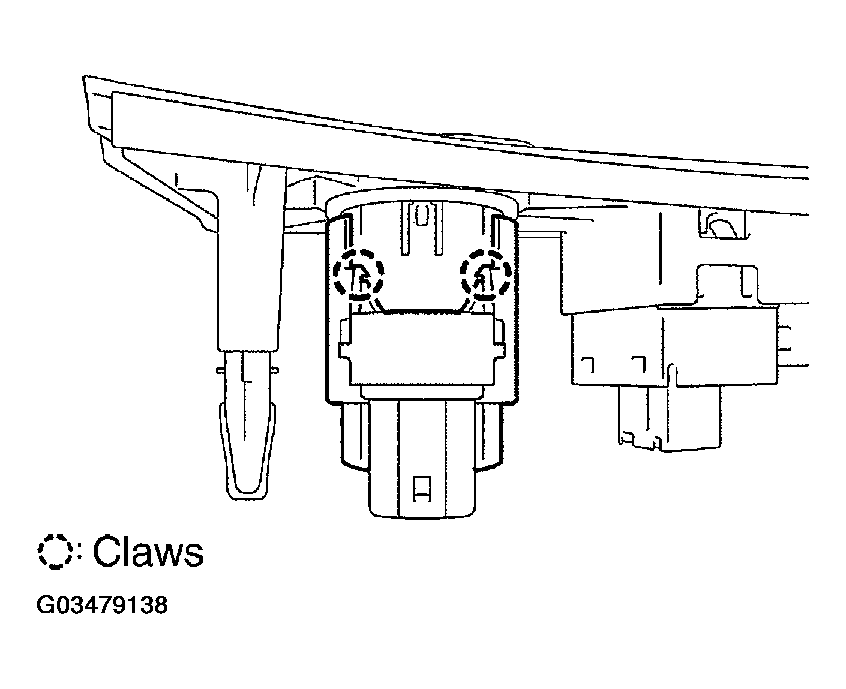

      Fig 1: Removing Cigarette Lighter Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE CIGARETTE LIGHTER ASSY
   1. Remove the cigarette lighter knob and element assy.
   2. Turn the socket in counterclockwise as shown in Fig 2 .

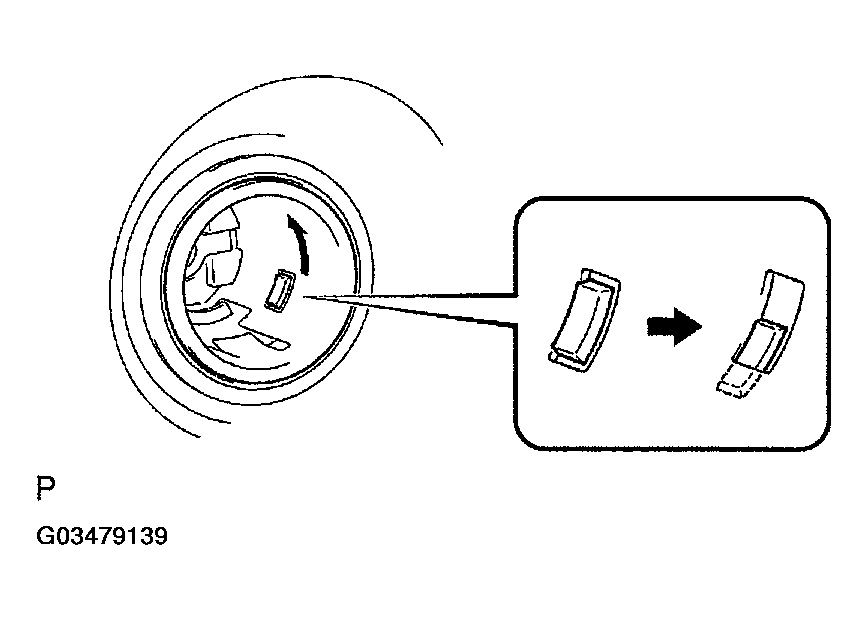

   Fig 2: Turning Socket
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket.
   4. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter assy.

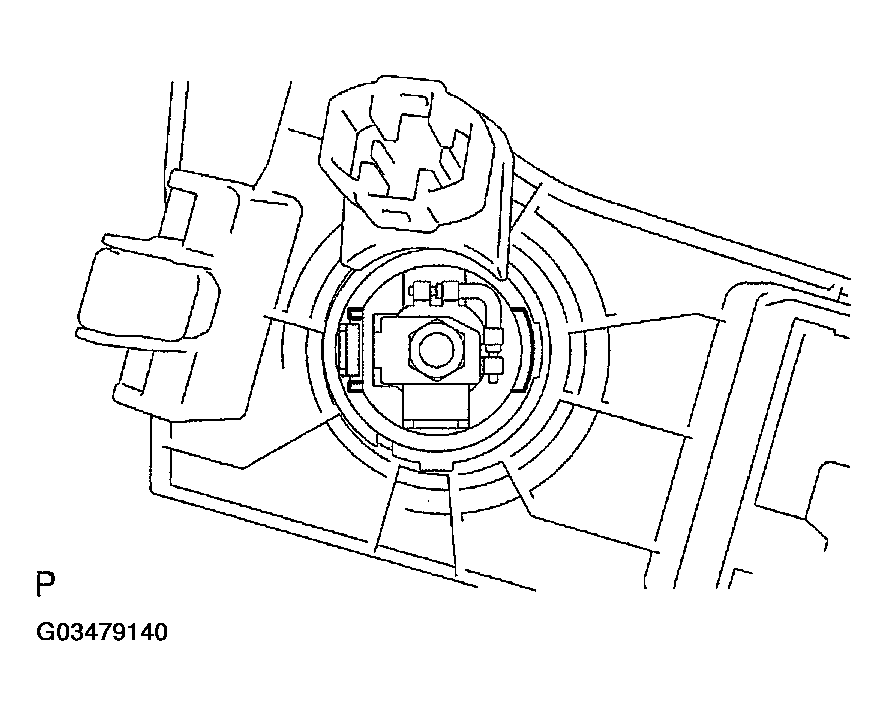

      Fig 3: Removing Cigarette Lighter Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL CIGARETTE LIGHTER ASSY
   1. Align the socket with the notch on the cigarette lighter bezel stay, push in the cigarette lighter assy as hard as possible to install it.
   2. Install the cigarette lighter knob and element assy.
