Shift Lever ASSY (ATM): Components

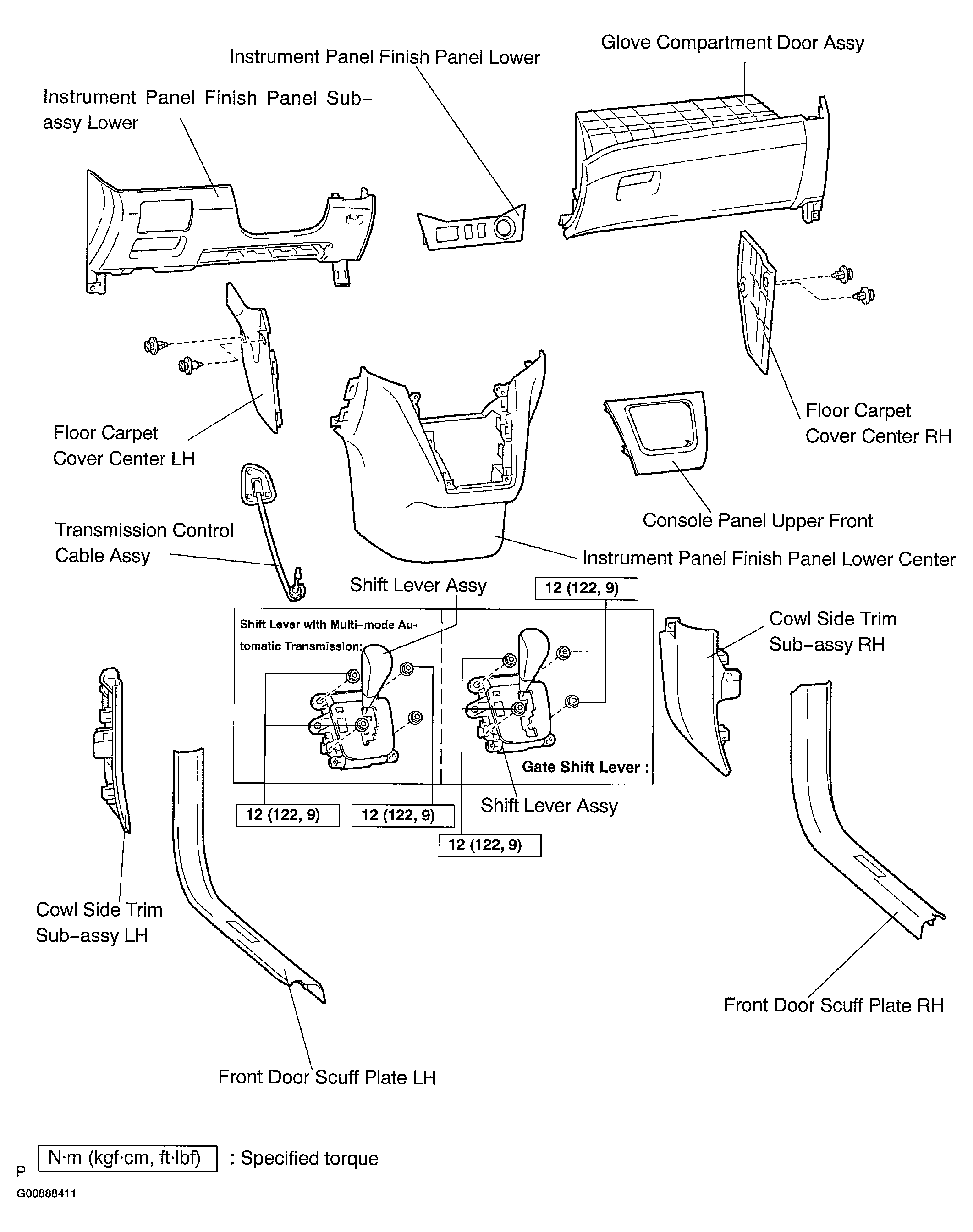

Fig 1: Exploded View Of Shift Lever Assembly (1 Of 2)
G00888411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

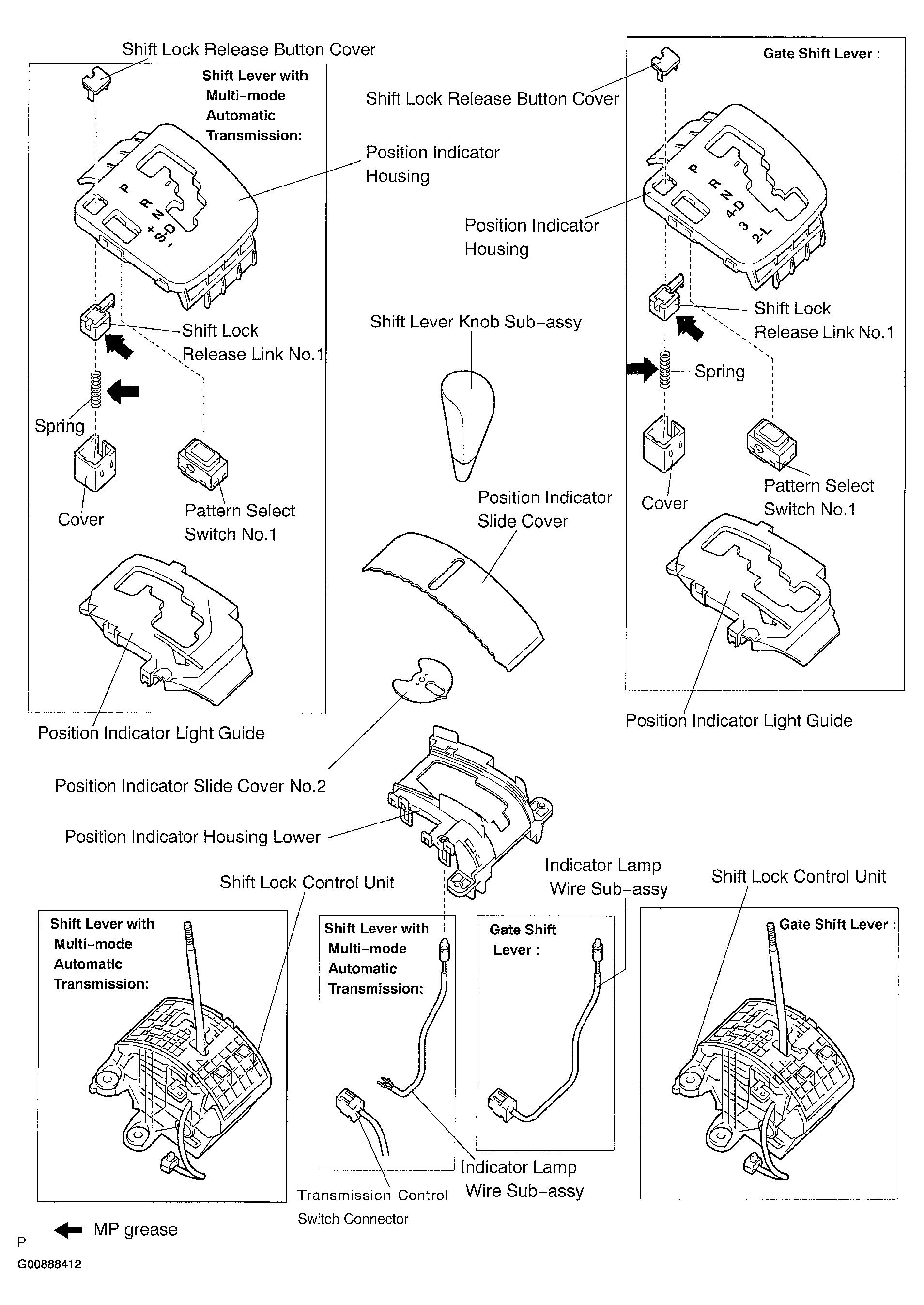

Fig 2: Exploded View Of Shift Lever Assembly (2 Of 2)
G00888412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
