Automatic Transaxle ASSY (U151E/U151F): Replacement

SST 09520-01010, 09520-24010 (09520-32040)

SST 09520-01010, 09520-24010 (09520-32040)

1. Remove the bolt and transmission control cable bracket No. 2
   Fig 1: Removing Bolt And Transmission Control Cable Bracket No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the wire harnesses from the clamps.
2. Remove the 4 bolts and 4 clamps.

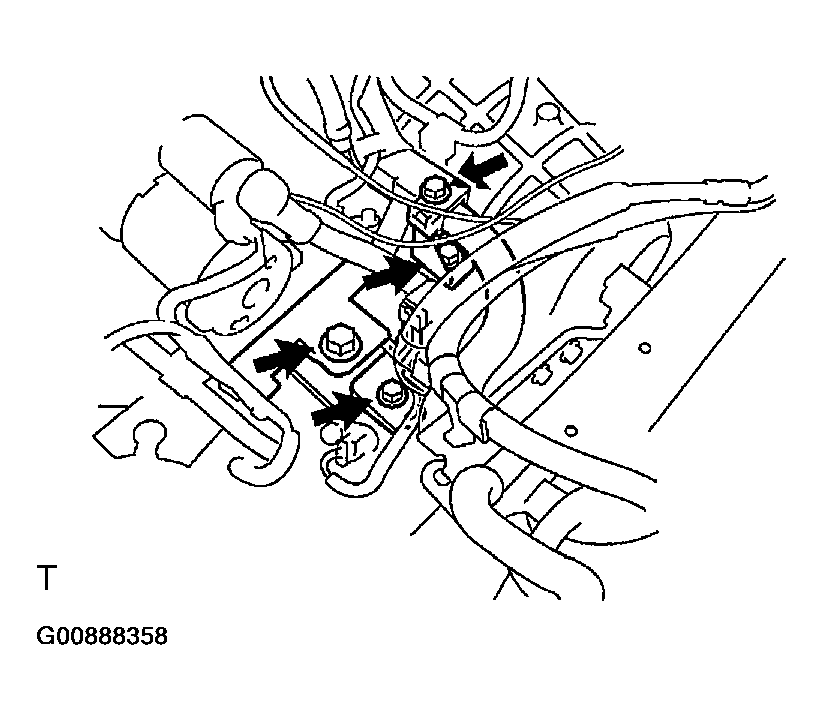

   Fig 2: Removing Wire Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

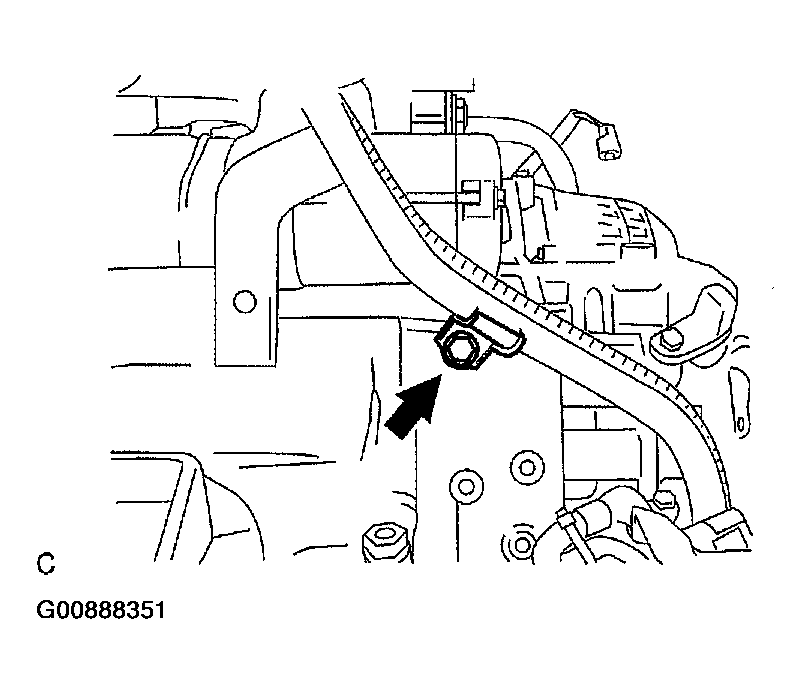

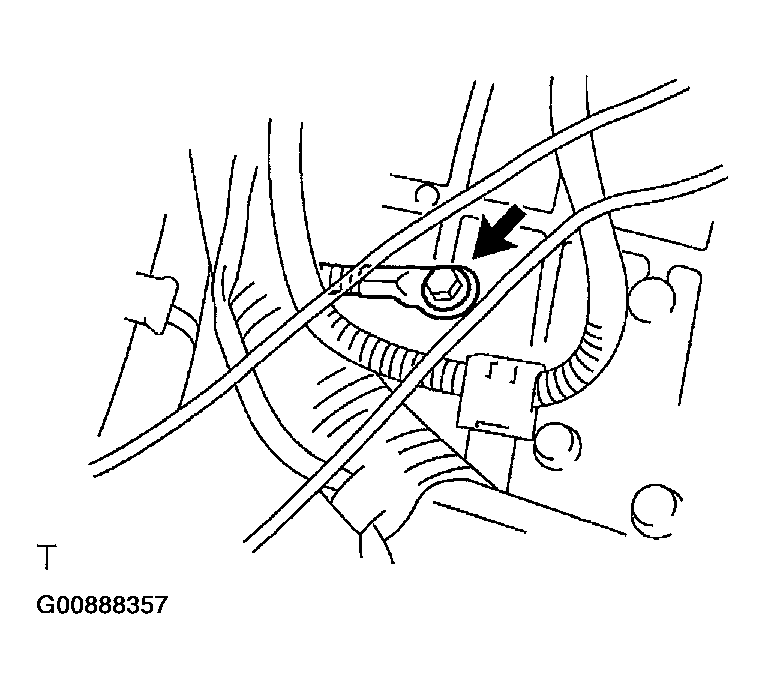

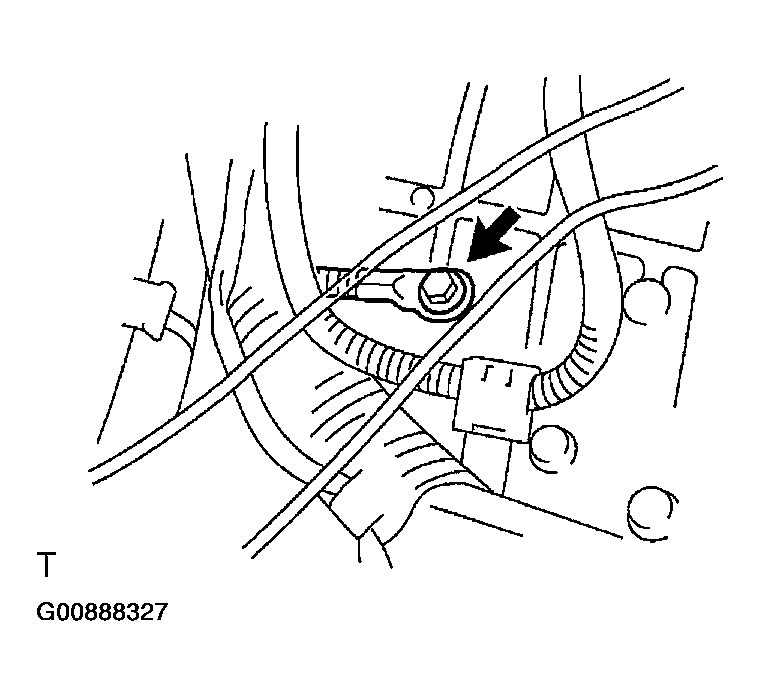

1. Remove the bolt and wire harness.
   Fig 3: Removing Ground Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

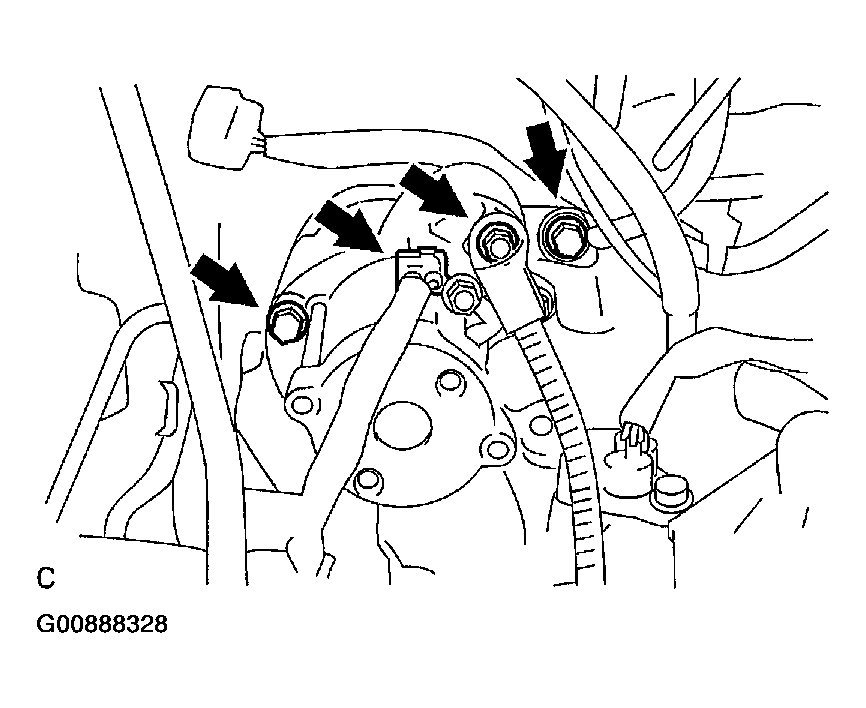

1. Remove the nut and disconnect the starter wire.
2. Disconnect the connector.
3. Remove the 2 bolts and starter assy.
   Fig 4: Removing Starter Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

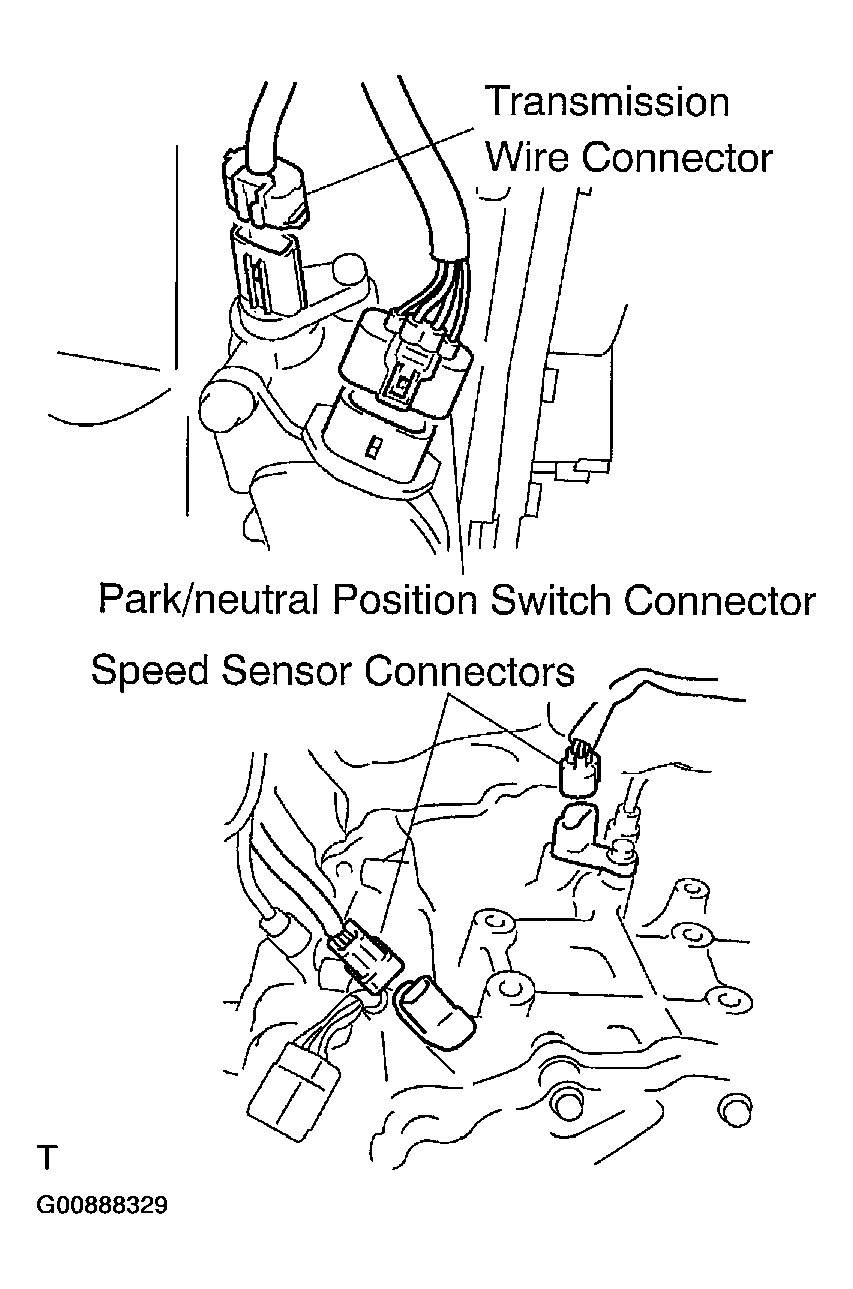

1. Disconnect the transmission wire connector.
2. Disconnect the park/neutral position switch connector.
3. Disconnect the 2 speed sensor connectors.
   Fig 5: Disconnecting Transmission Wire Harness Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

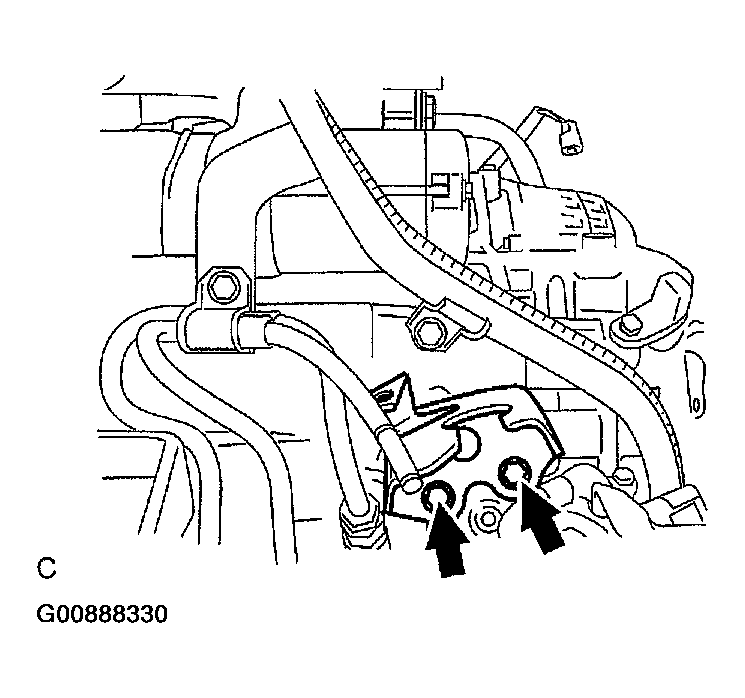

1. Remove the 2 bolts and transmission control cable bracket No. 1.
   Fig 6: Removing Transmission Control Cable Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

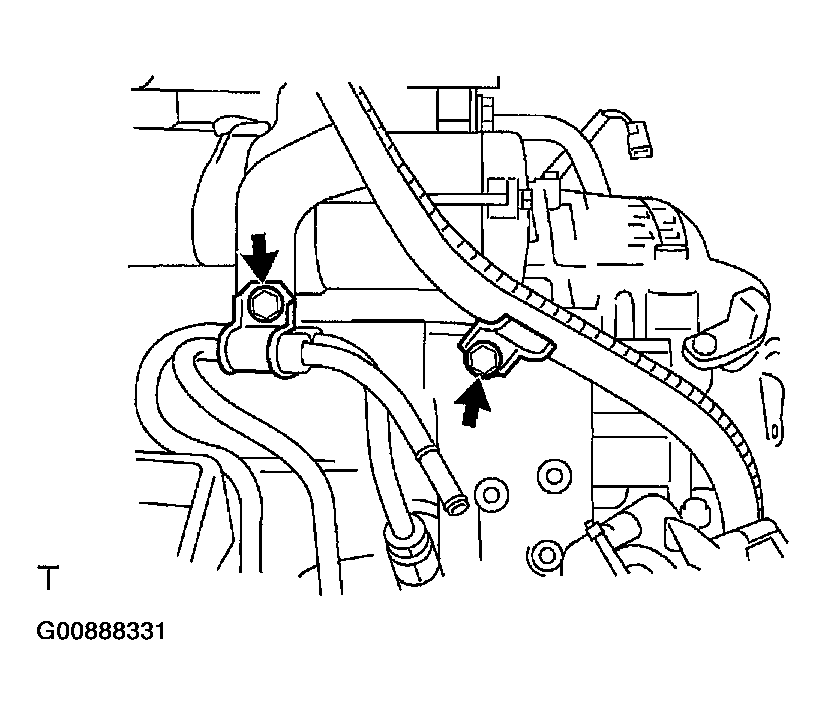

1. Remove the ATF level gauge.
2. Disconnect the 2 clamps from oil filler tube.
3. Remove the bolt and oil cooler tube clamp.
4. Remove the bolt and oil filler tube.
5. Remove the O-ring from the oil filler tube.
   Fig 7: Removing Transmission Oil Filler Tube Sub Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

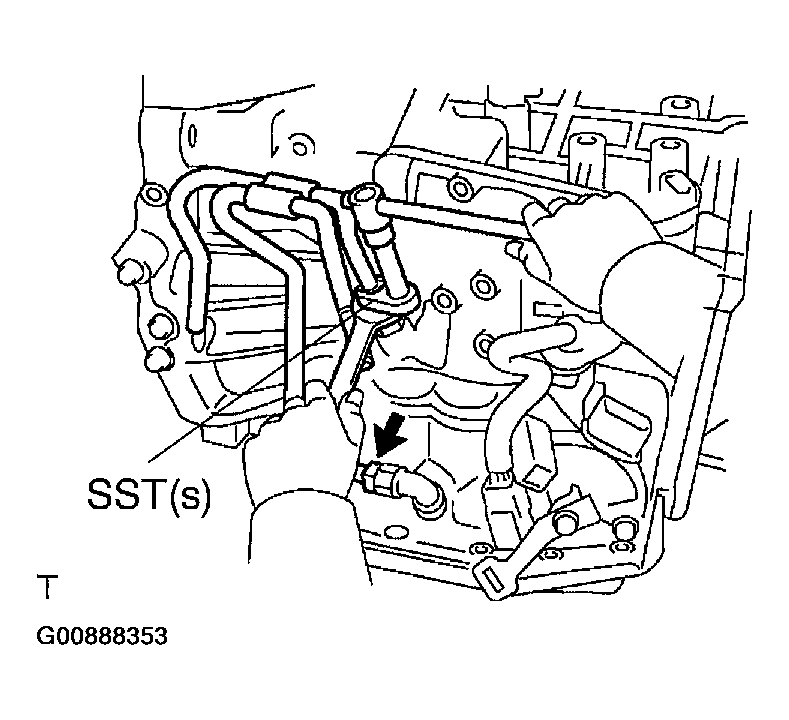

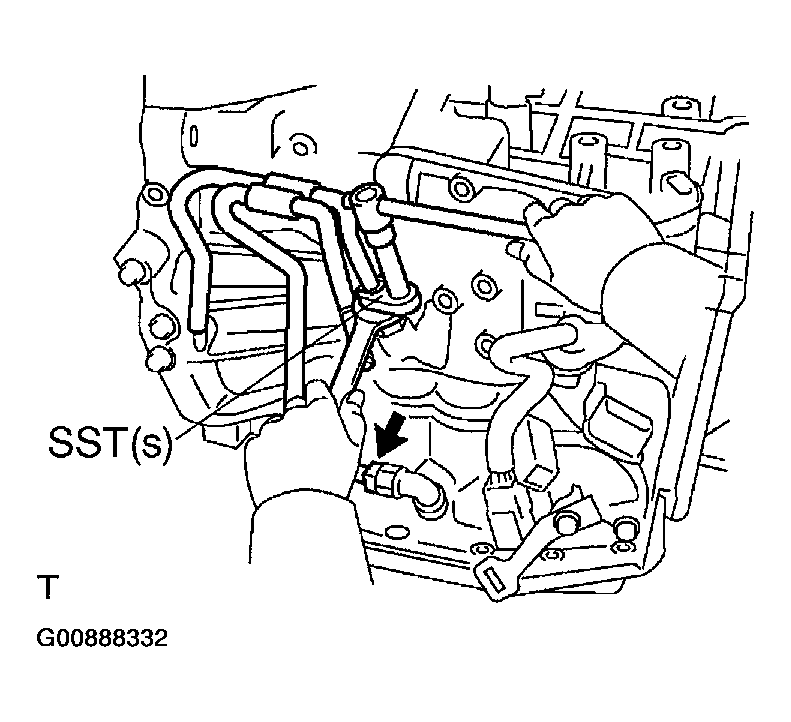

1. Using SST(s) and a spanner, disconnect the oil cooler inlet tube No. 1

   SST 09023-12700

   Fig 8: Removing Oil Cooler Inlet Tube No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST(s) and a spanner, disconnect the oil cooler outlet tube No. 1.

   SST 09023-12700

1. Remove the 3 bolts and engine mounting bracket FR.
   Fig 9: Removing Engine Mounting Bracket FR

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

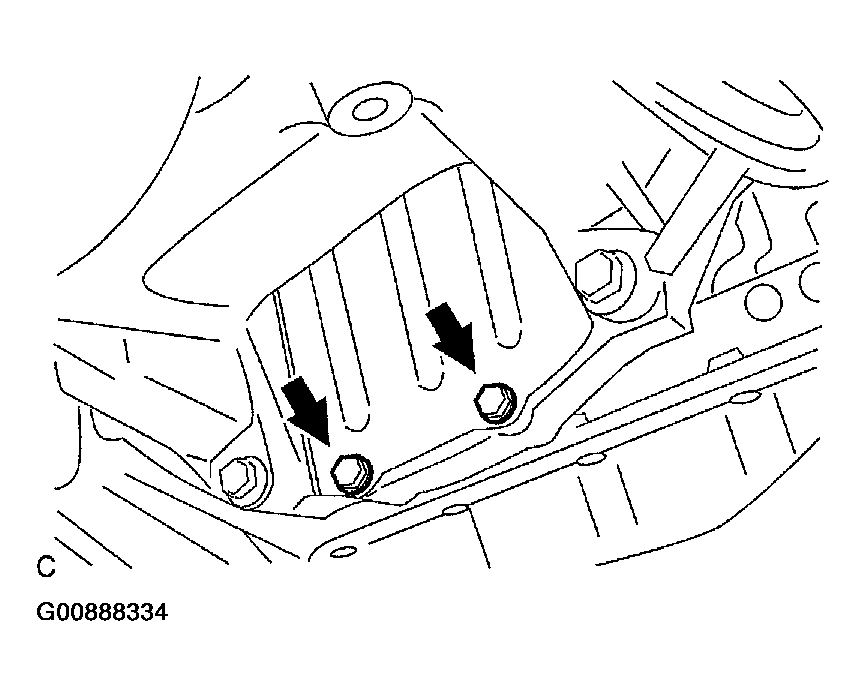

1. Remove the 2 bolts and flywheel housing under cover.
   Fig 10: Removing Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

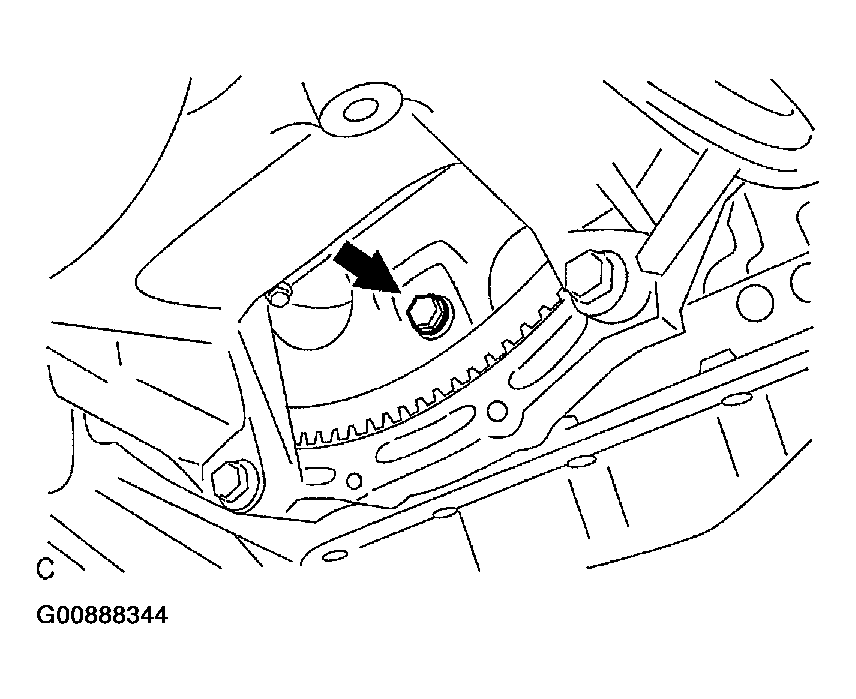

2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

   HINT:

   There will be one green colored bolt.

   Fig 11: Removing 6 Driveplate Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

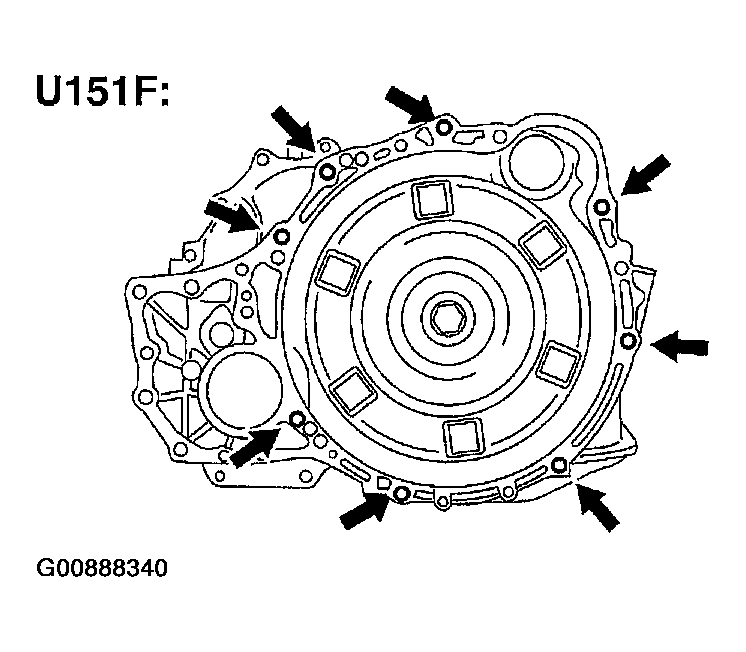

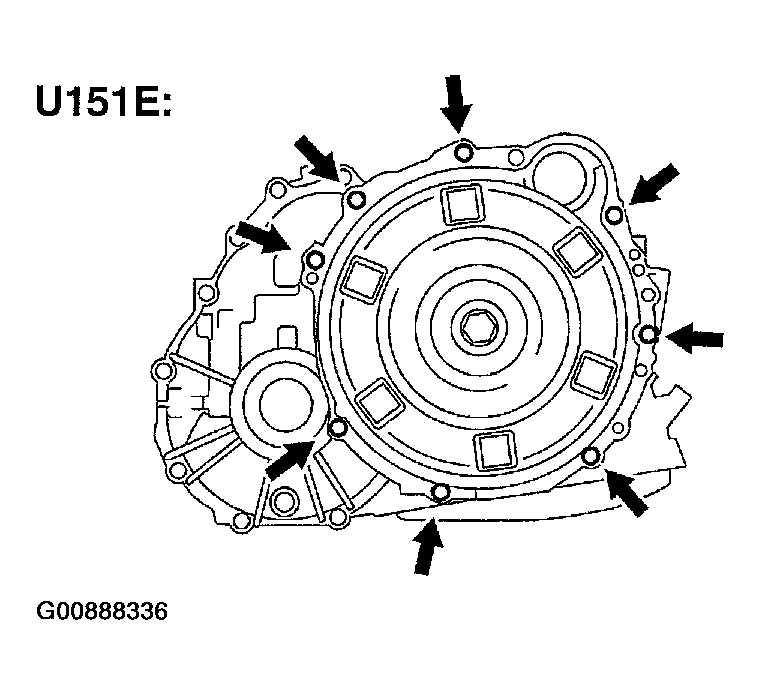

3. Remove the 8 bolts.
4. Separate and remove the automatic transaxle.
   Fig 12: Removing Automatic Transaxle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

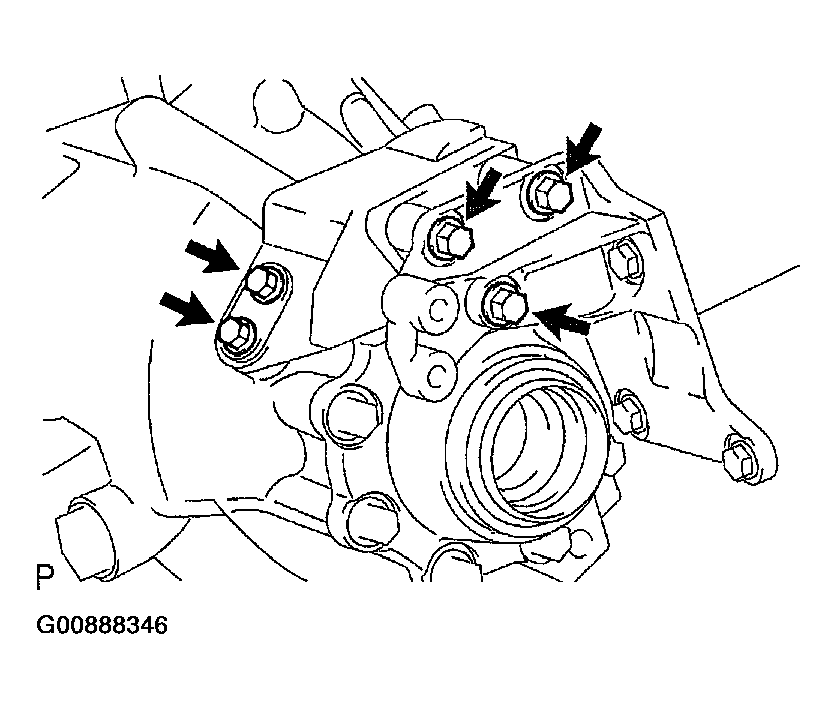

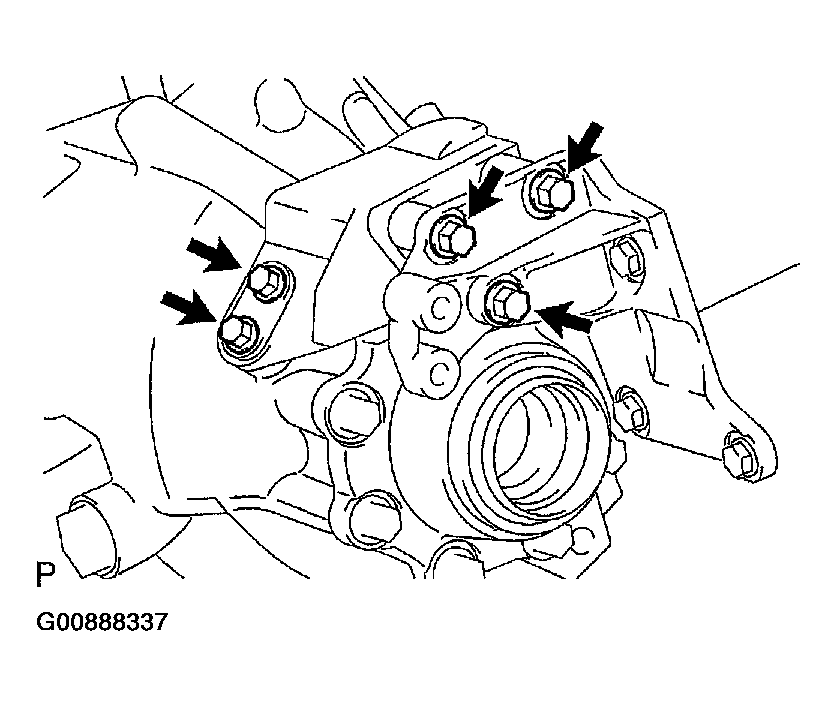

1. Remove the 5 bolts and transfer stiffener plate RH.
   Fig 13: Removing Transfer Stiffener Plate RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and flywheel housing under cover.
   Fig 14: Removing Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

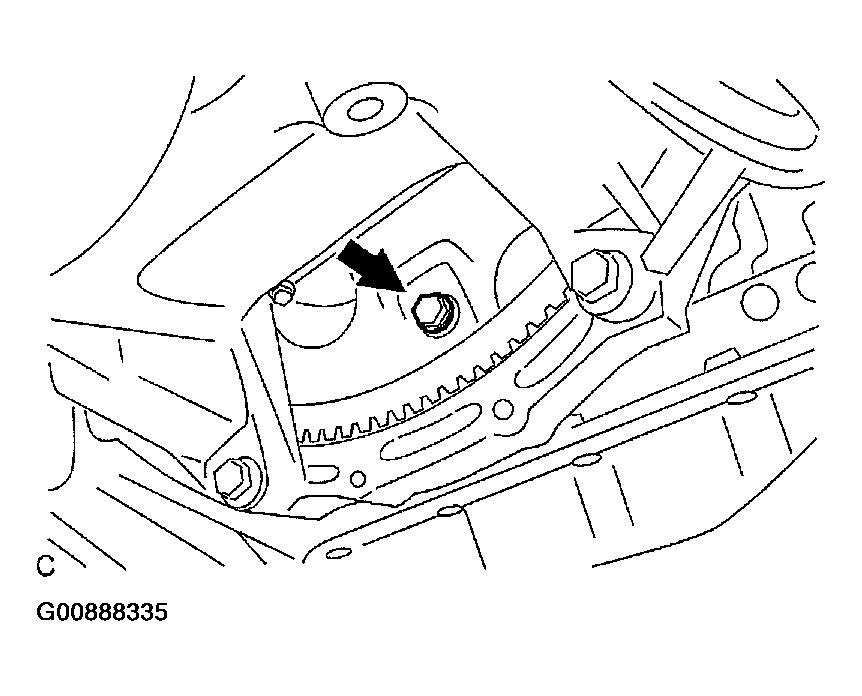

2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

   HINT:

   There will be one green colored bolt.

   Fig 15: Removing 6 Driveplate Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bolts.
4. Separate and remove the automatic transaxle w/transfer.
   Fig 16: Removing Automatic Transaxle W/Transfer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09350-32014 (09351-32010, 09351-32020)

1. Install the torque converter clutch to the automatic transaxle.

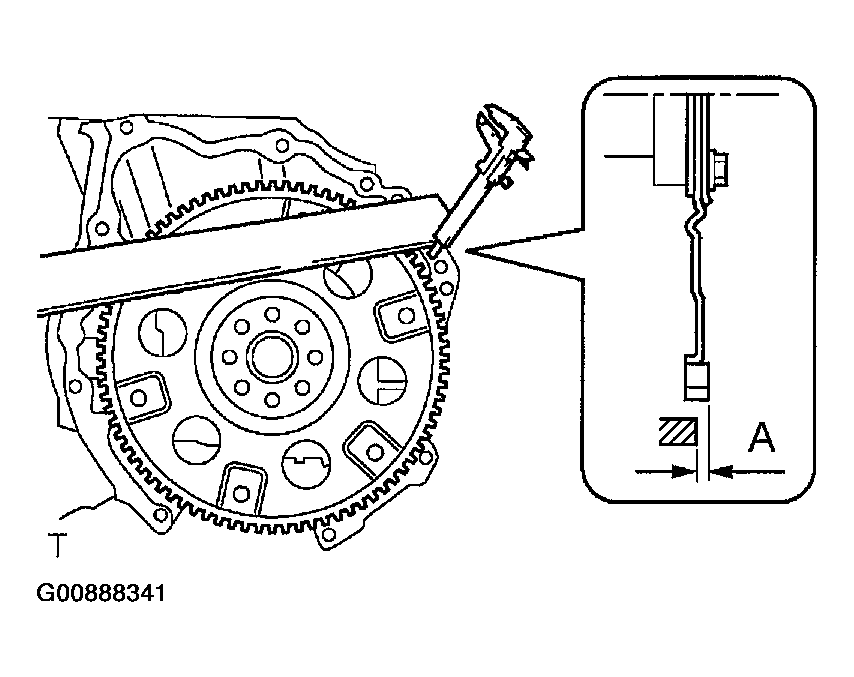

2. Using vernier calipers and a straight edge, measure the dimension "A" between the transaxle fitting part of the engine and the converter fitting part of the drive plate.
   Fig 17: Measuring Dimension A Using Vernier Caliper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

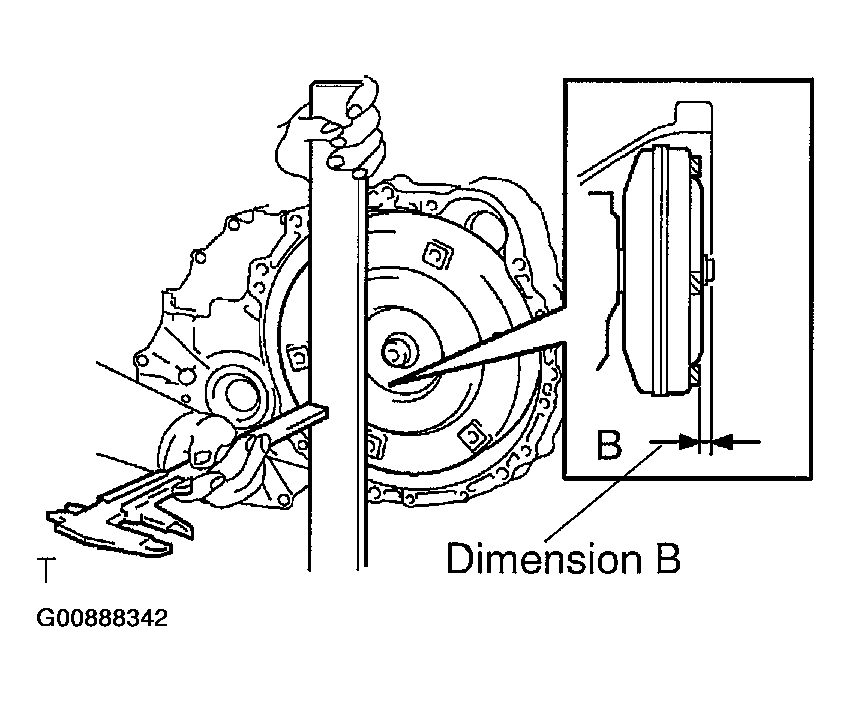

3. Using vernier calipers and a straight edge, measure the dimension "B" shown in the illustration and check that "B" is greater than "A", previously measured. see 20. (b)

   Standard: A + 1 mm or more

   NOTE: Remember to minus the thickness of the straight edge.
   Fig 18: Measuring Dimension B Using Vernier Caliper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

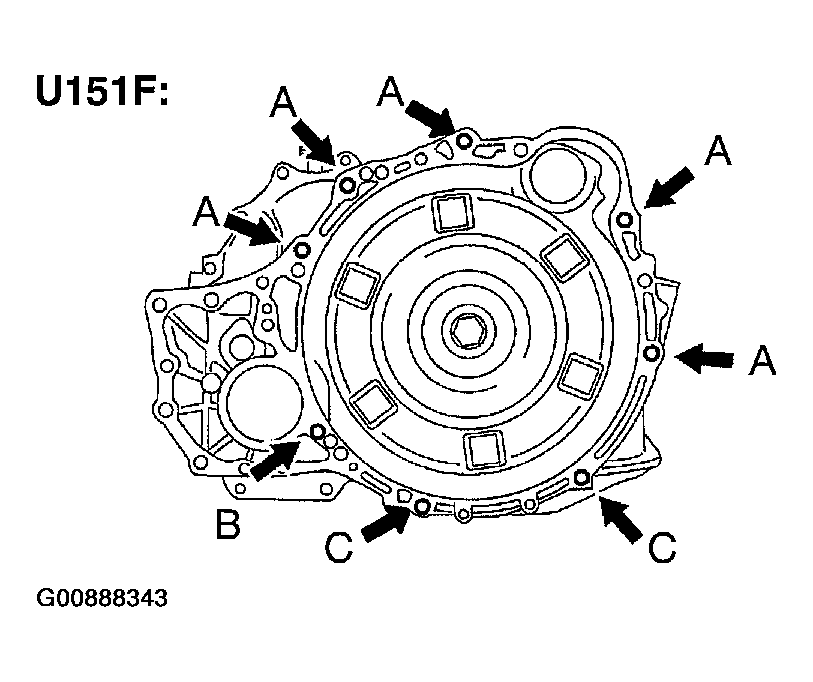

1. Install the automatic transaxle w/transfer with the 8 bolts to the engine.

   Torque:

   Bolts A: 64 N.m (650 kgf.cm, 47 ft.lbf)

   Bolt B: 46 N.m (470 kgf.cm, 34 ft.lbf)

   Bolts C: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.

   Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent

   Fig 19: Installing Automatic Transaxle W/Transfer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

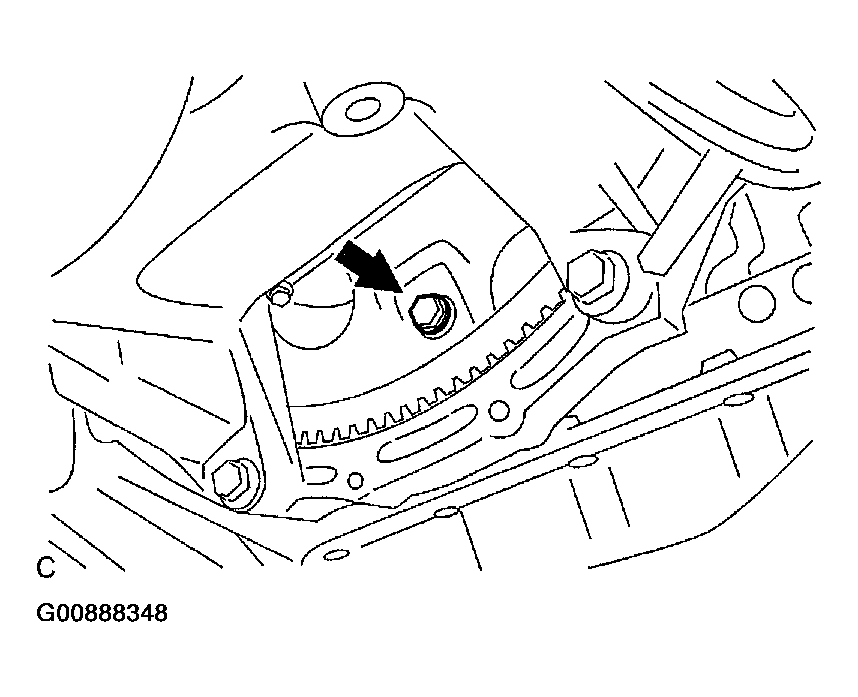

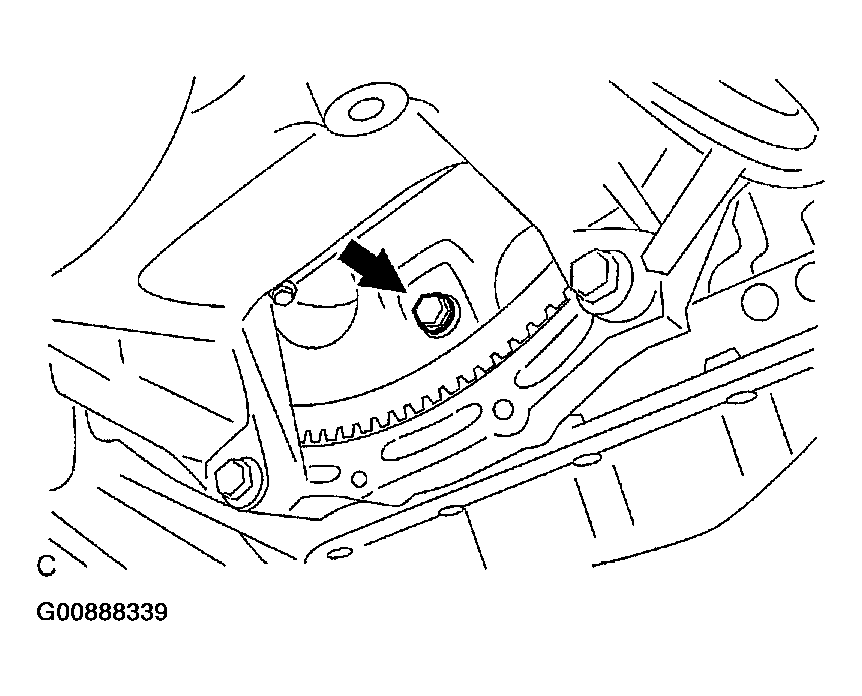

3. Install the 6 torque converter clutch mounting bolts.

   Torque: 41 N.m (418 kgf.cm, 30 ft.lbf)

   HINT:

   First install the green colored bolt and then the remaining 5 bolts.

   Fig 20: Locating Green Colored Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

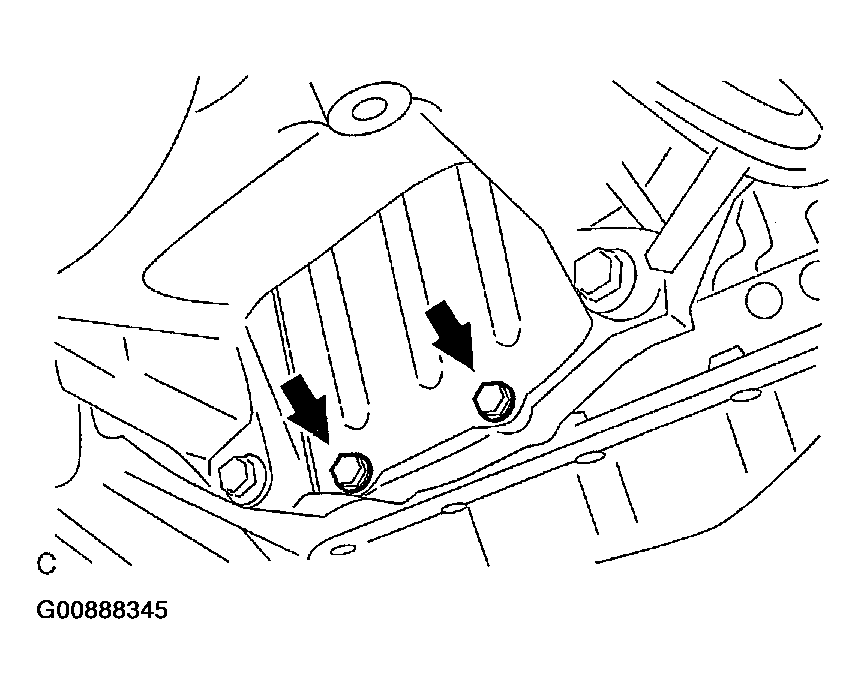

4. Install the flywheel housing under cover to the automatic transaxle with the 2 bolts.

   Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

   Fig 21: Locating Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer stiffener plate RH with 5 bolts to the transfer and engine mounting bracket RR.

   Torque: 34 N.m (350 kgf.cm, 25 ft.lbf)

   Fig 22: Installing Transfer Stiffener Plate RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

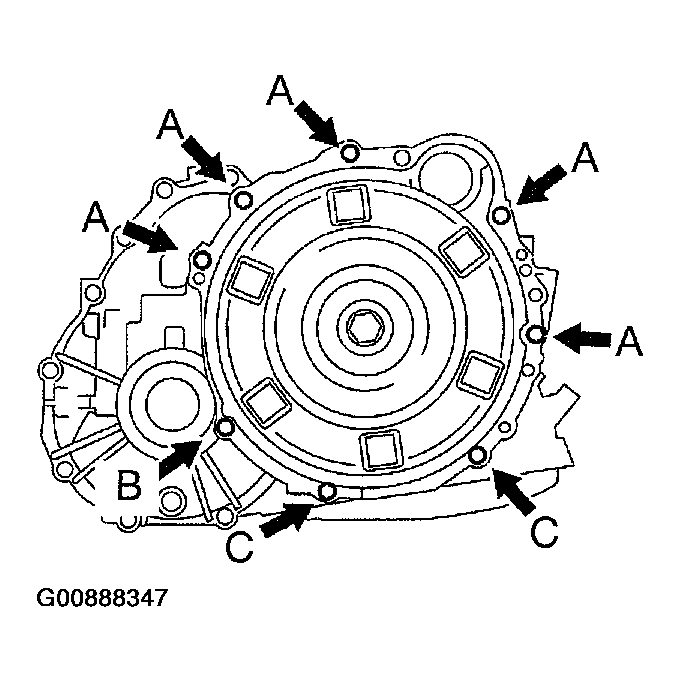

1. Install the automatic transaxle with 8 bolts to the engine.

   Torque:

   Bolts A: 64 N.m (650 kgf.cm, 47 ft.lbf)

   Bolt B: 46 N.m (470 kgf.cm, 34 ft.lbf)

   Bolts C: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.

   Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent

   Fig 23: Installing Automatic Transaxle Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 6 torque converter clutch mounting bolts.

   Torque: 41 N.m (418 kgf.cm, 30 ft.lbf)

   HINT:

   First install the green colored bolt and then the remaining 5 bolts.

   Fig 24: Locating Green Colored Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the flywheel housing under cover to the automatic transaxle with the 2 bolts.

   Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

   Fig 25: Locating Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine mounting bracket FR and 3 bolts to the automatic transaxle.

   Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)

1. Coat a new O-ring with ATF, and install it to the oil filler tube.
   Fig 26: Installing Engine Mounting Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil filler tube and bolt to the automatic transaxle.

   Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

3. Connect the 2 clamps to the oil filler tube.
4. Install the ATF level gauge.

1. Temporarily install the oil cooler outlet tube No. 1.
2. Temporarily install the oil cooler inlet tube No. 1.
   Fig 27: Installing Transmission Oil Filler Tube Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

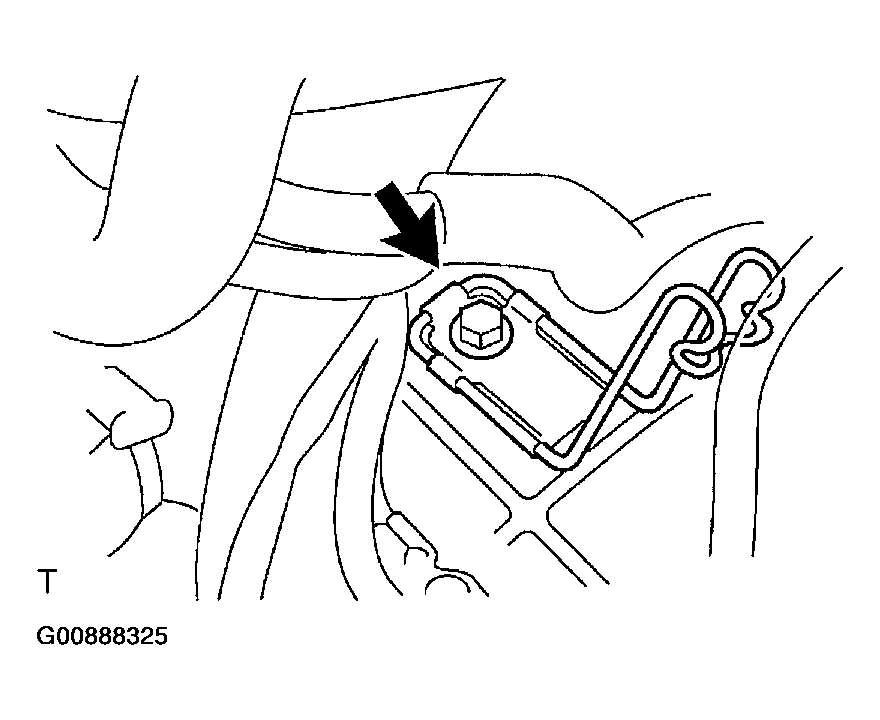

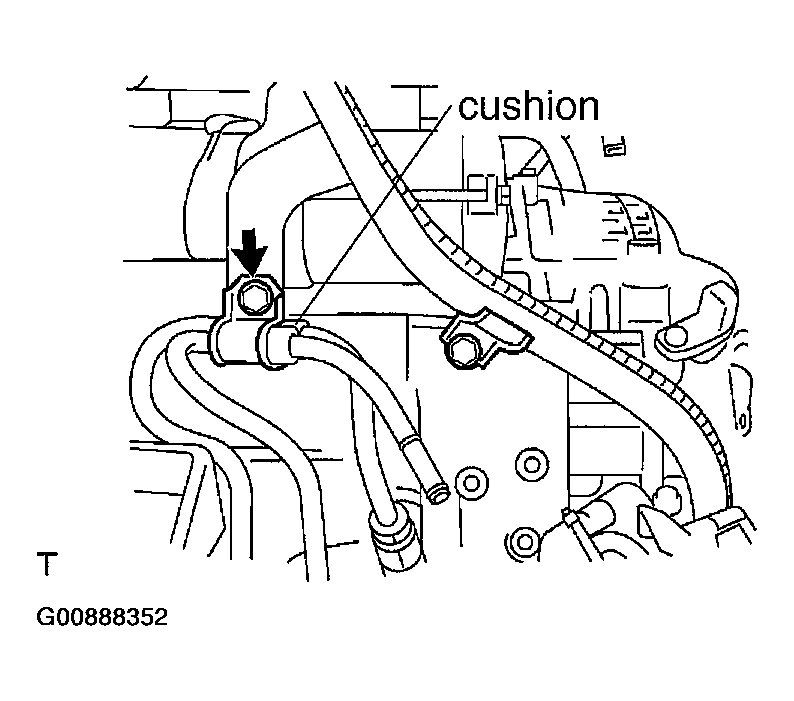

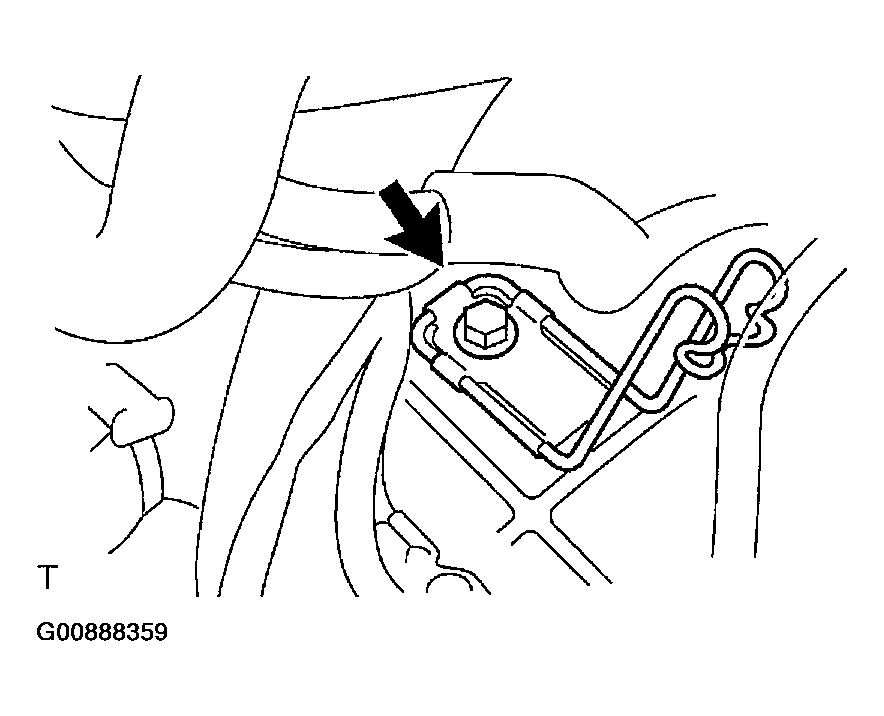

3. Install the oil cooler tube clamp and bolt.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

   HINT:

   Install the oil cooler tube clamp and bolt so that the oil cooler tube cushion is positioned as illustrated.

   Fig 28: Installing Oil Cooler Tube Clamp And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST(s) and a spanner, tighten the oil cooler inlet tube No. 1.

   SST 09023-12700

   Torque: 34 N.m (347 kgf.cm, 25 ft.lbf)

   Fig 29: Tightening Oil Cooler Inlet Tube No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST(s) and a spanner, tighten the oil cooler outlet tube No. 1.

   Torque: 34 N.m (347 kgf.cm, 25 ft.lbf)

   SST 09023-12700

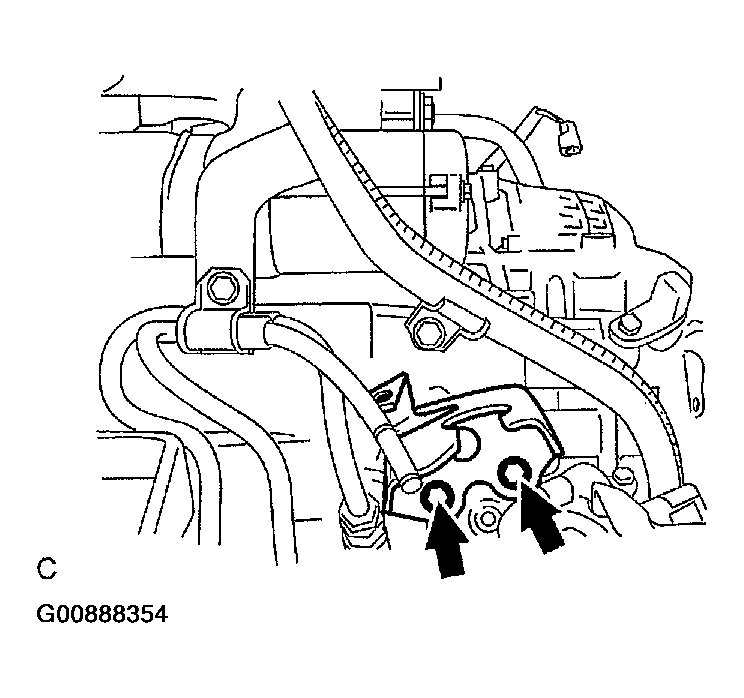

1. Install the control cable bracket No. 1 and 2 bolts.

   Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

   Fig 30: Installing Transmission Control Cable Bracket No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

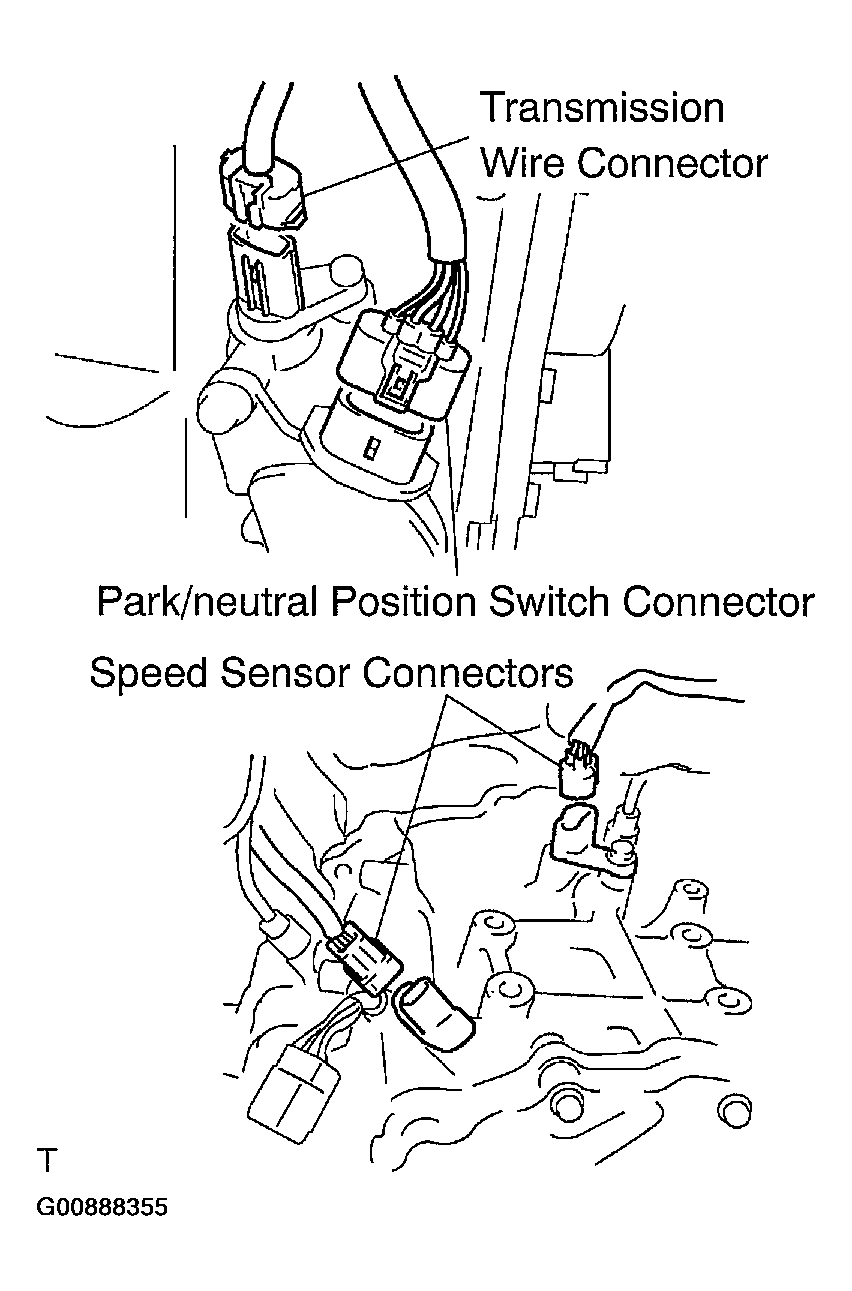

1. Connect the transmission wire connector.
2. Connect the park/neutral position switch connector.
3. Connect the 2 speed sensor connectors.
   Fig 31: Identifying Transmission Wire Connector And Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

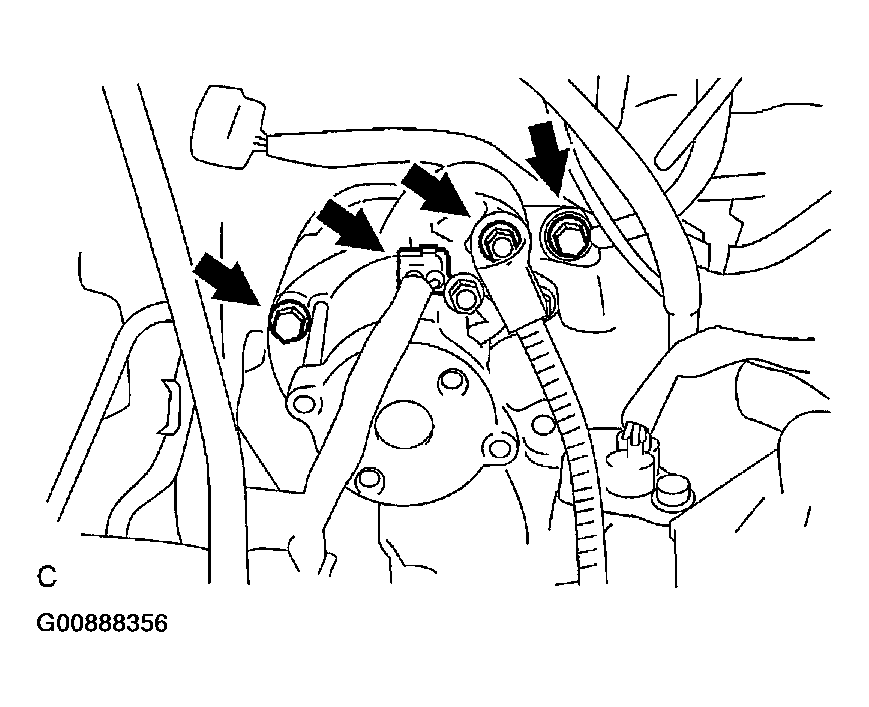

1. Install the starter assy and 2 bolts.

   Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

2. Connect the connector.
3. Install the starter wire and nut.

   Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

   Fig 32: Installing Starter Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the wire harness and bolt.

   Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

   Fig 33: Installing Ground Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 4 clamps and 4 bolts.

   Torque: 8.4 N.m (86 kgf.cm, 74 in.lbf)

2. Connect the wire harnesses to the clamps.
   Fig 34: Installing Wire Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transmission control cable bracket No. 2 with the bolt.

   Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

   Fig 35: Installing Transmission Control Cable Bracket No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
