Steering Column ASSY (Power Tilt & Telescopic): Components

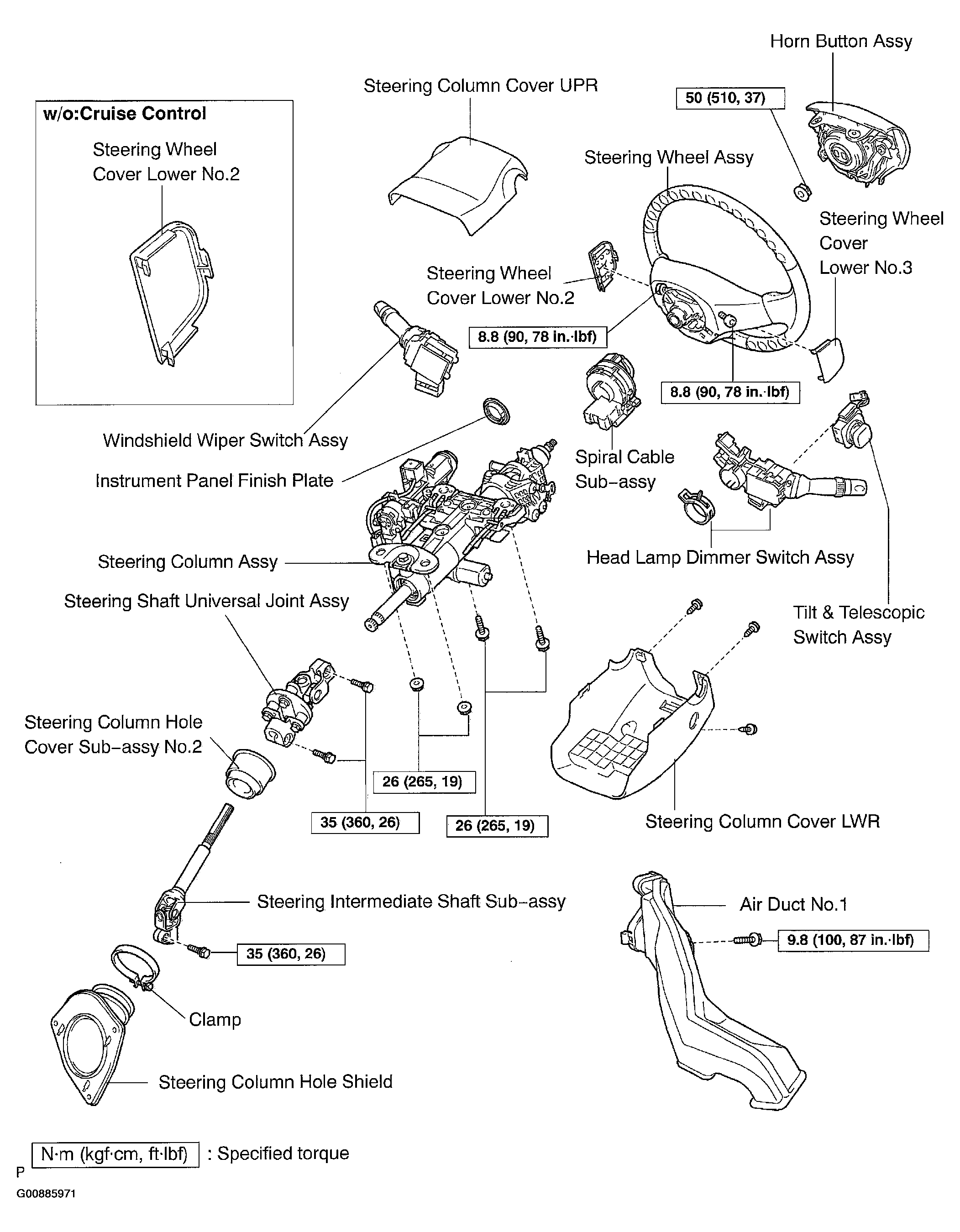

Fig 1: Exploded View Of Steering Column Assy Components (1 Of 2)
G00885971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

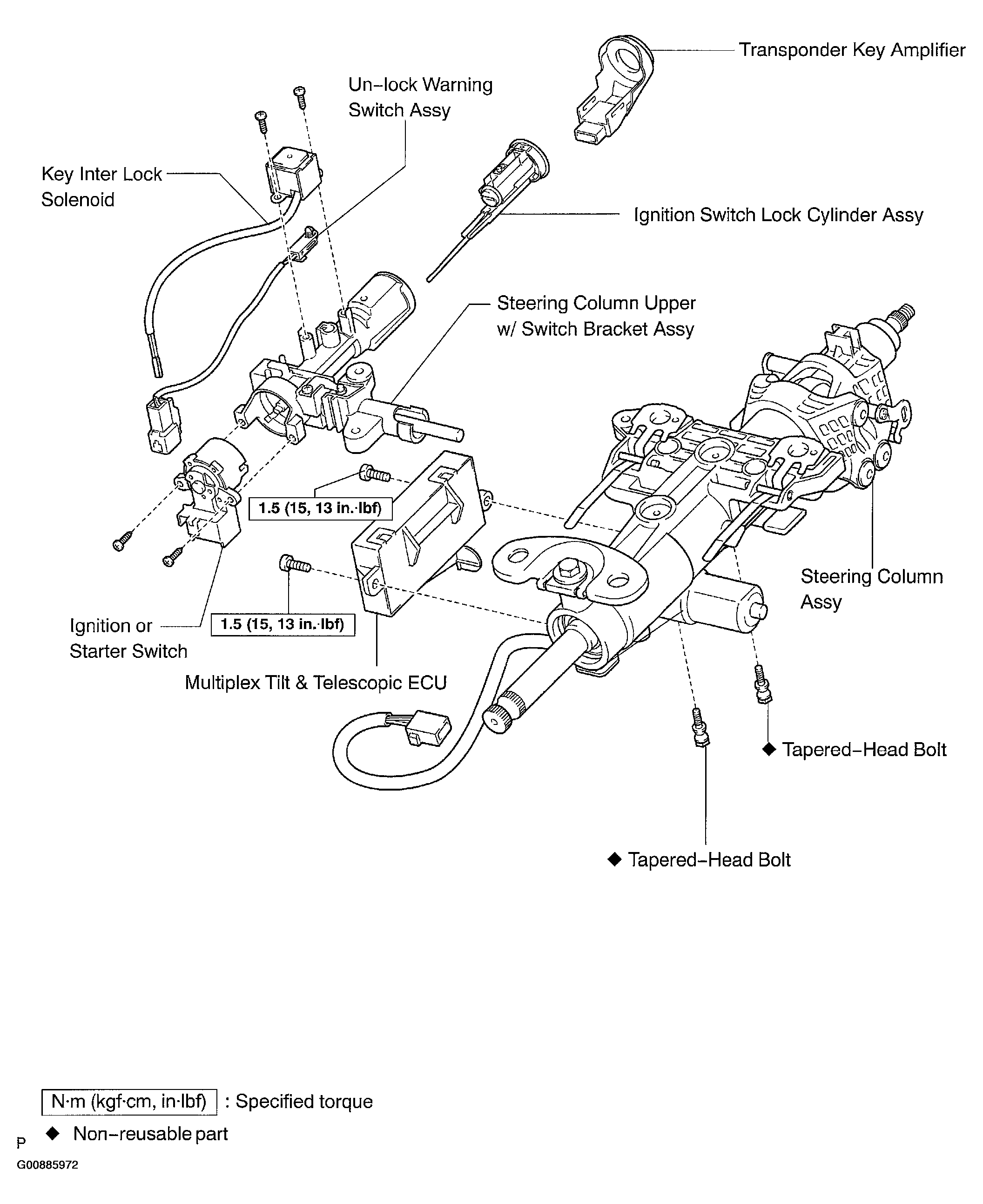

Fig 2: Exploded View Of Steering Column Assy Components (2 Of 2)
G00885972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
