Vane Pump ASSY: Components

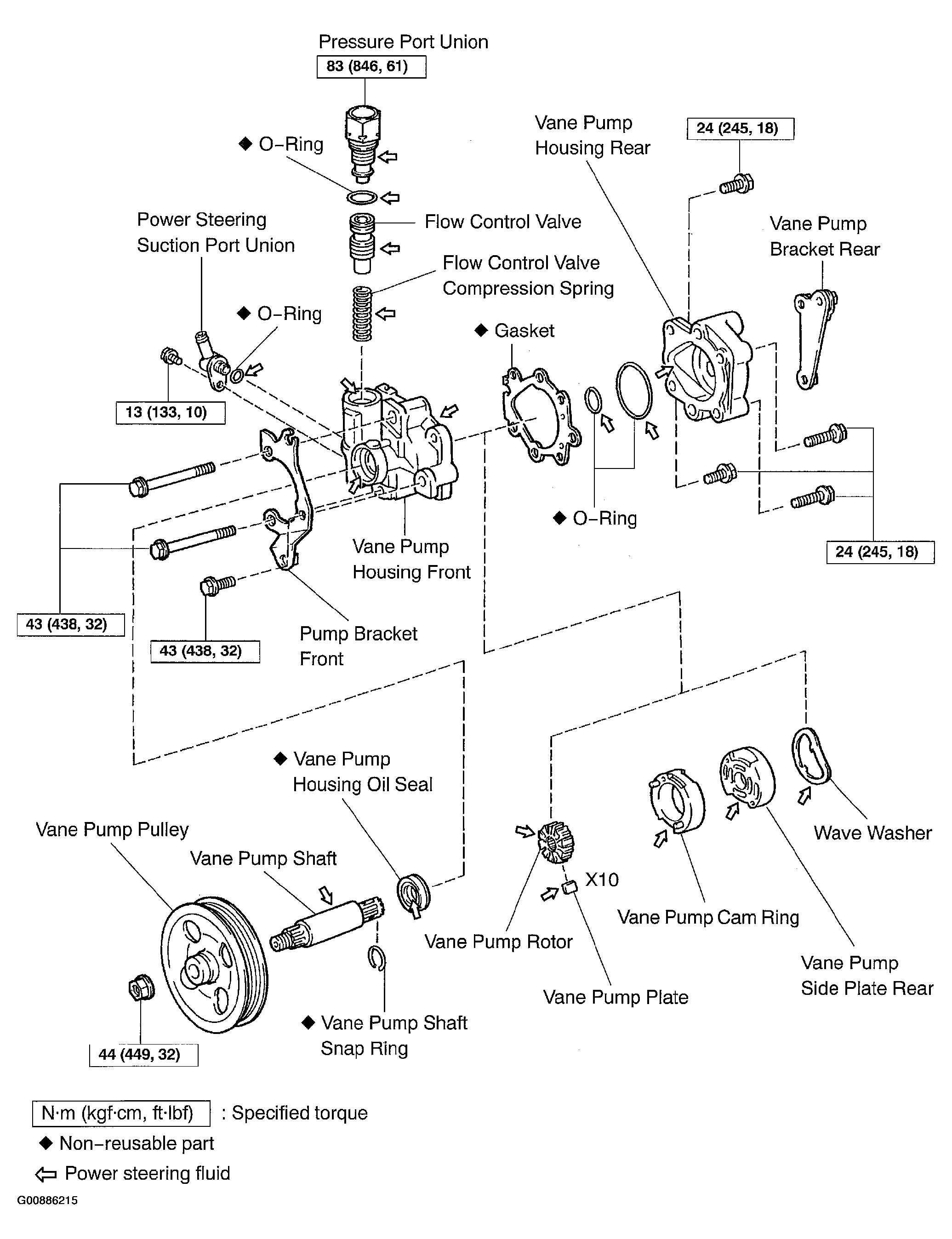

Fig 1: Exploded View Of Vane Pump Assy Components

G00886215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
