Power Steering Link ASSY: Components

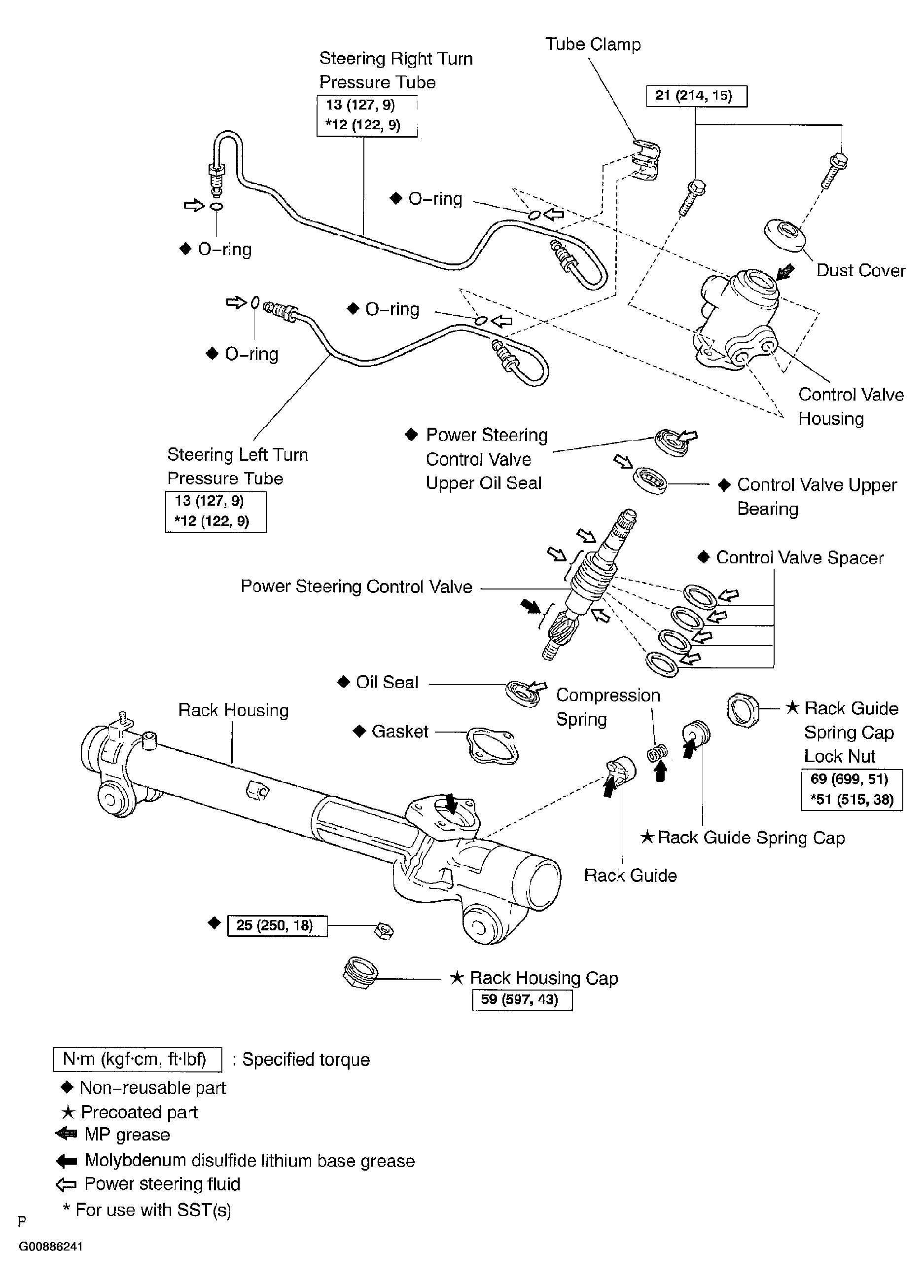

Fig 1: Exploded View Of Power Steering Link Assy Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

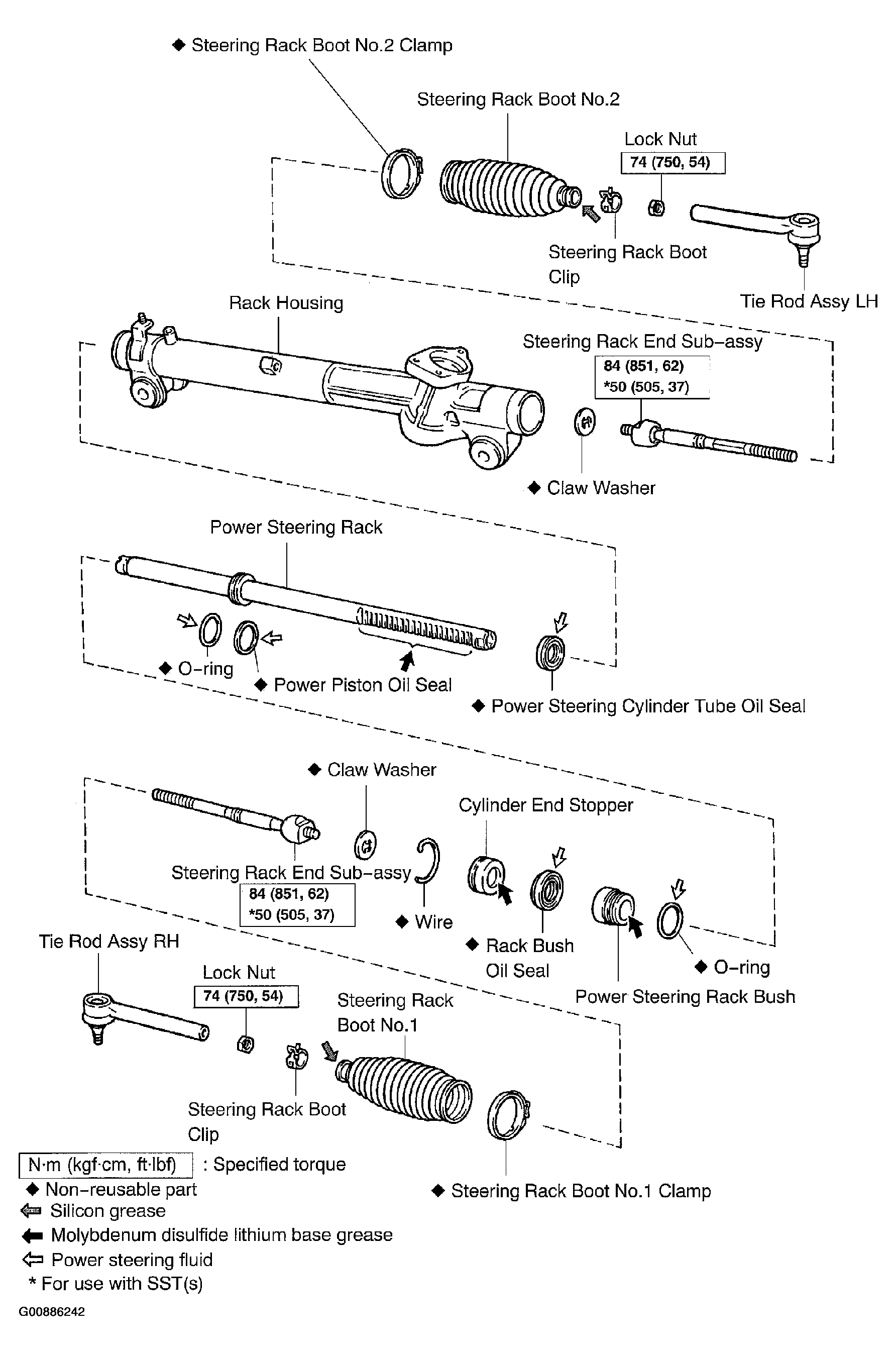

Fig 2: Exploded View Of Power Steering Link Assy Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

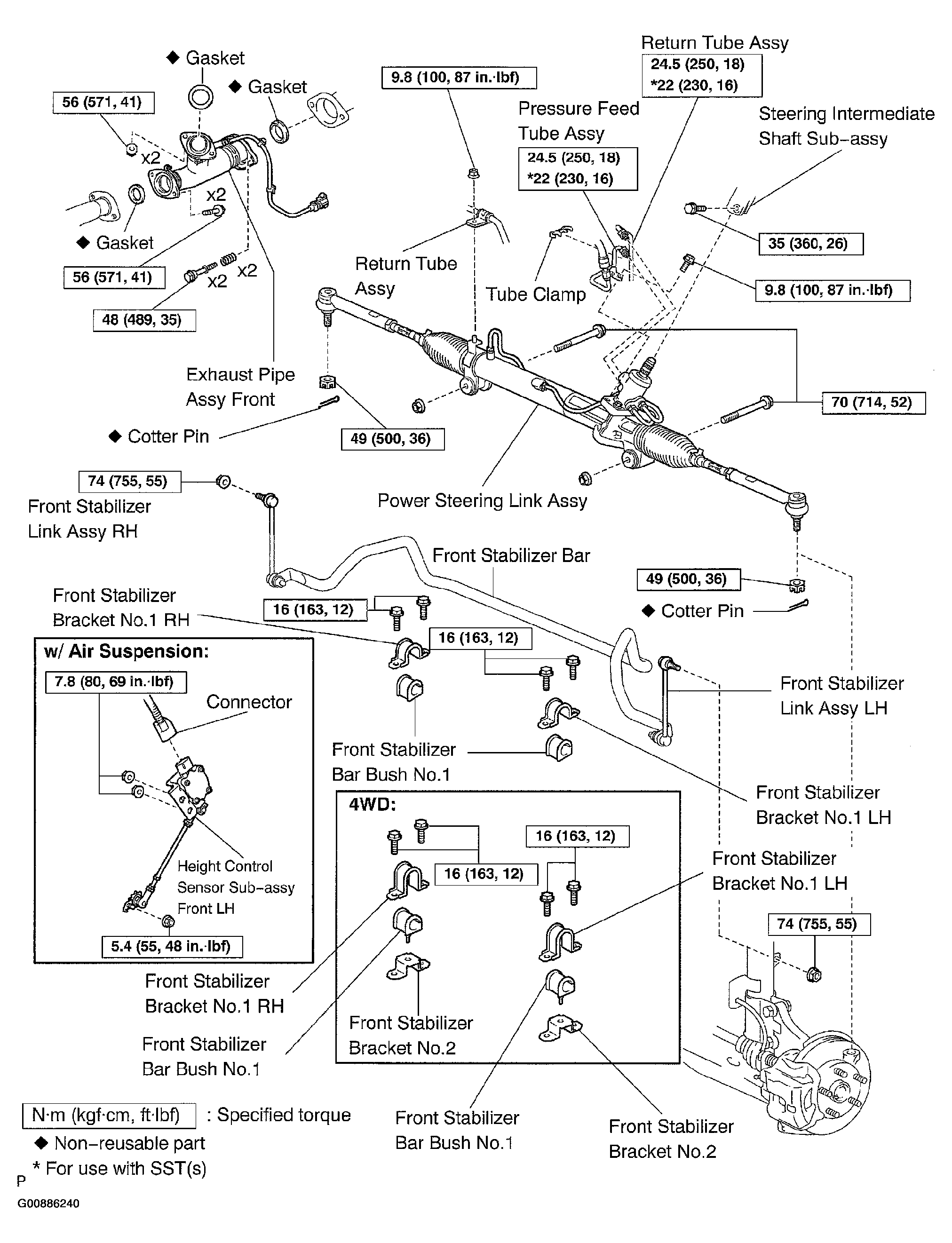

Fig 3: Exploded View Of Power Steering Link Assy Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
