Home >> Lexus >> 2004 >> RX 330 AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Rear Seat Belt >> Components

Rear Seat Belt: Components

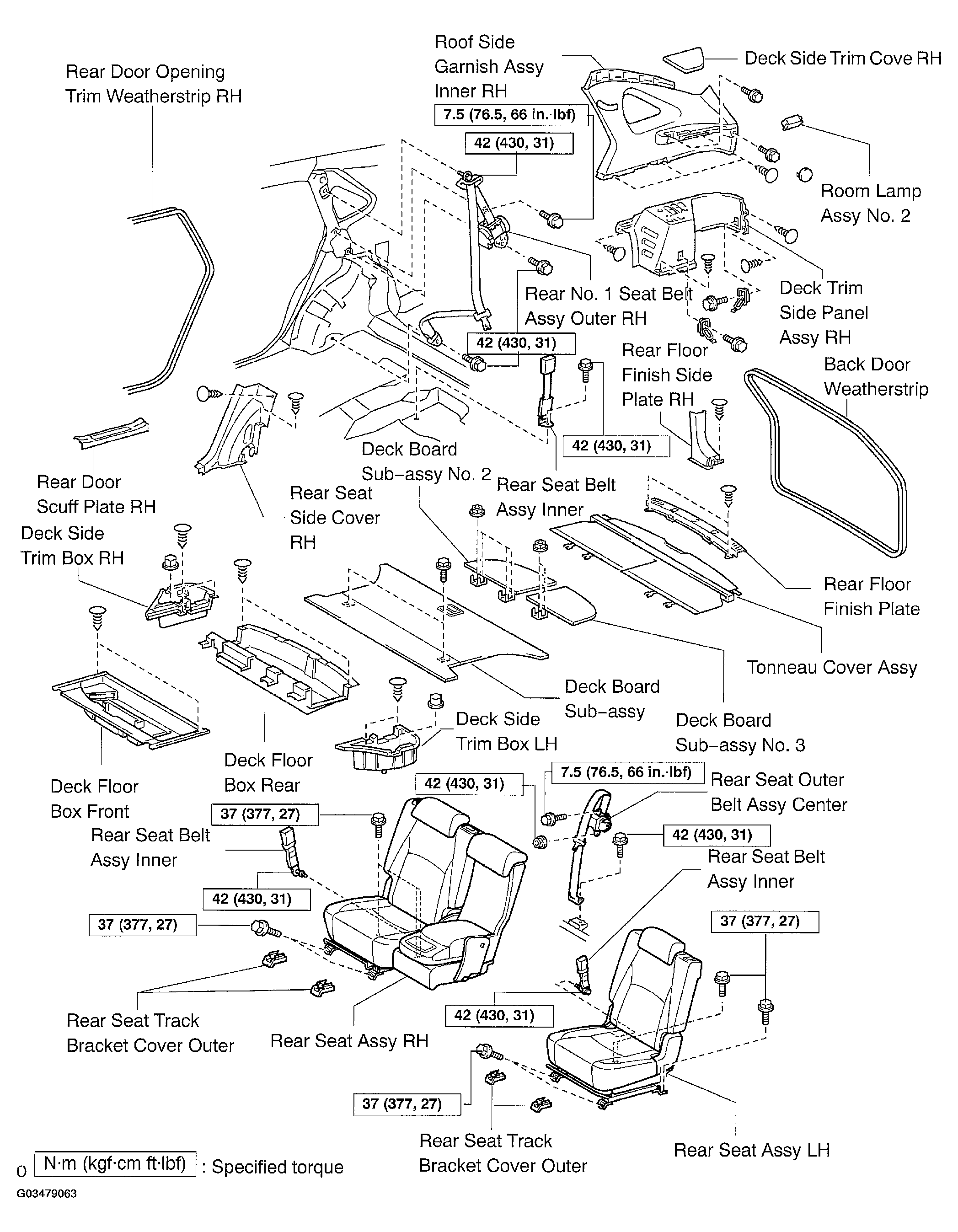

Fig 1: Identifying Rear Seat Belt Components

G03479063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
