Roof Headlining: Installation

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 ROOF WIRE
    1. without Sliding Roof:
      1. Remove the backing sheet on the double-sided tape without allowing the tape to touch the contact surface.
      2. Apply new double-sided tape to locations shown below after aligning the tape with the marking of the roof headlining.

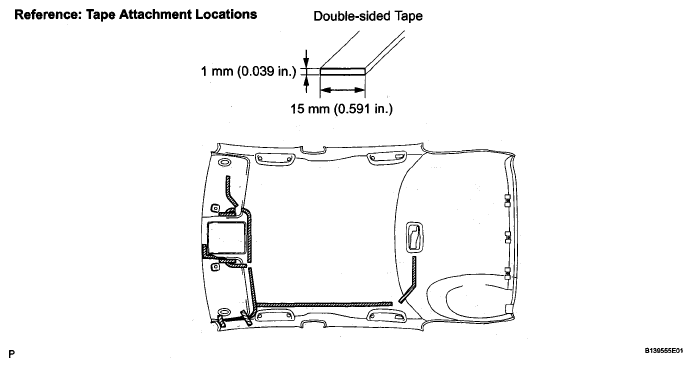

        Fig 1: Identifying Double-Sided Tape Attachment Location With Specified Dominions
        G05274877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
      3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.

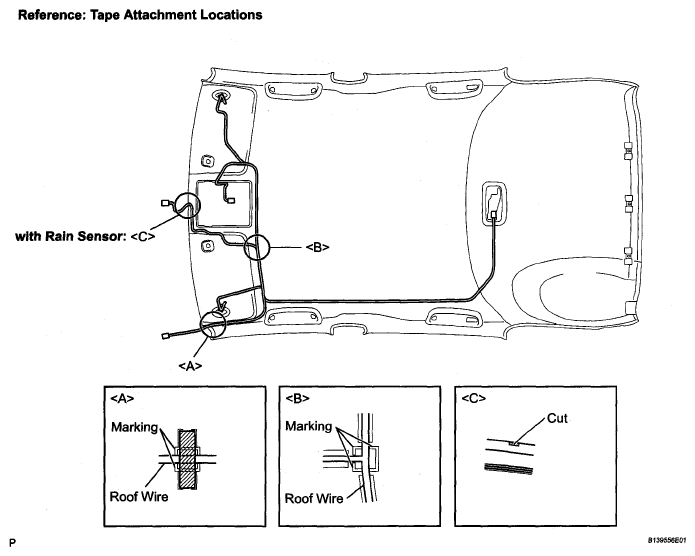

        Fig 2: Identifying Double-Sided Tape Attachment Location With Marking Surface Position Of Wire Harness
        G05274878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Securely attach the No. 1 roof wire.
        • Do not allow the No. 1 roof wire to sit loosely. Doing so may cause abnormal noise.
    2. with Sliding Roof (Standard Type) / for TMC made:
      1. Remove the backing sheet on the double-sided tape without allowing the tape to touch the contact surface.
      2. Apply new double-sided tape to locations shown below after aligning the tape with the marking of the roof headlining.

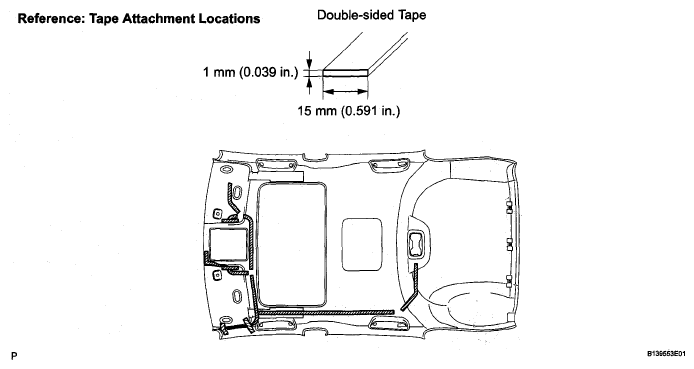

        Fig 3: Identifying Double-Sided Tape Attachment Location With Specified Dominions
        G05274879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
      3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.

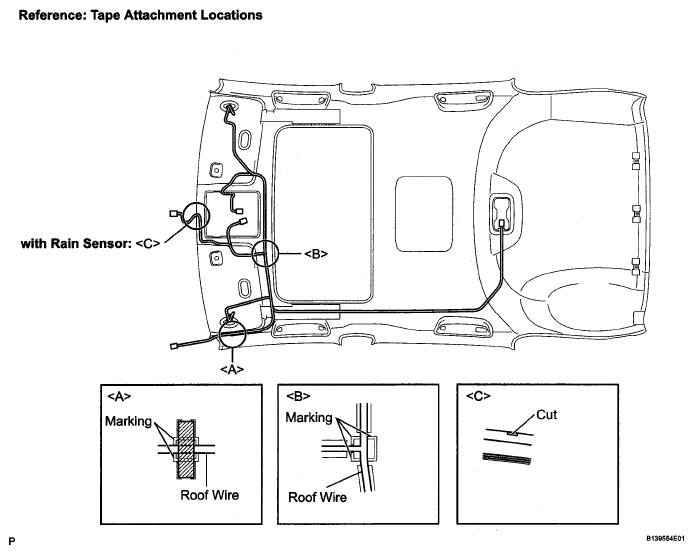

        Fig 4: Identifying Double-Sided Tape Attachment Location With Marking Surface Position Of Wire Harness
        G05274880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Securely attach the No. 1 roof wire.
        • Do not allow the No. 1 roof wire to sit loosely. Doing so may cause abnormal noise.
    3. for TMMK made:
      1. Remove the backing sheet on the double-sided tape without allowing the tape to touch the contact surface.
      2. Apply new double-sided tape to locations shown below after aligning the tape with the marking of the roof headlining.

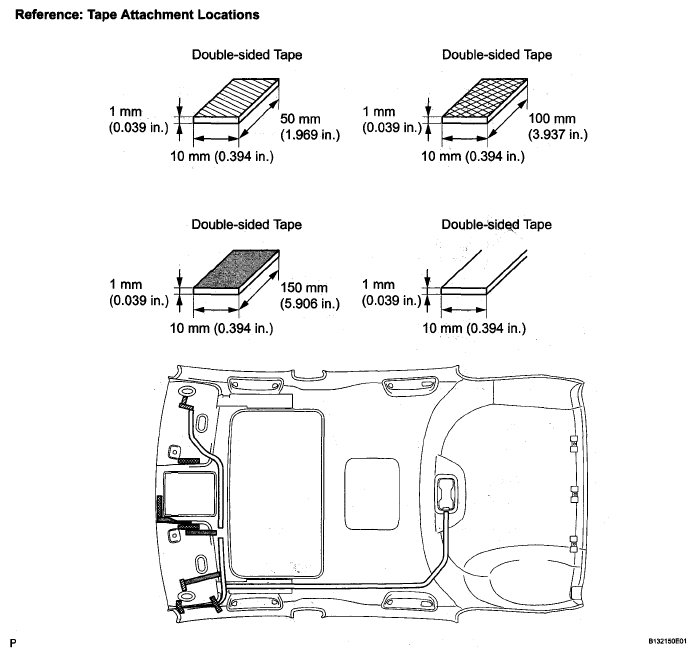

        Fig 5: Identifying Double-Sided Tape Attachment Location With Specified Dimension
        G05274881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
      3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
        NOTE:
        • Securely attach the No. 1 roof wire.
        • Do not allow the No. 1 roof wire to sit loosely. Doing so may cause abnormal noise.
      4. Apply adhesive tape to locations shown below.

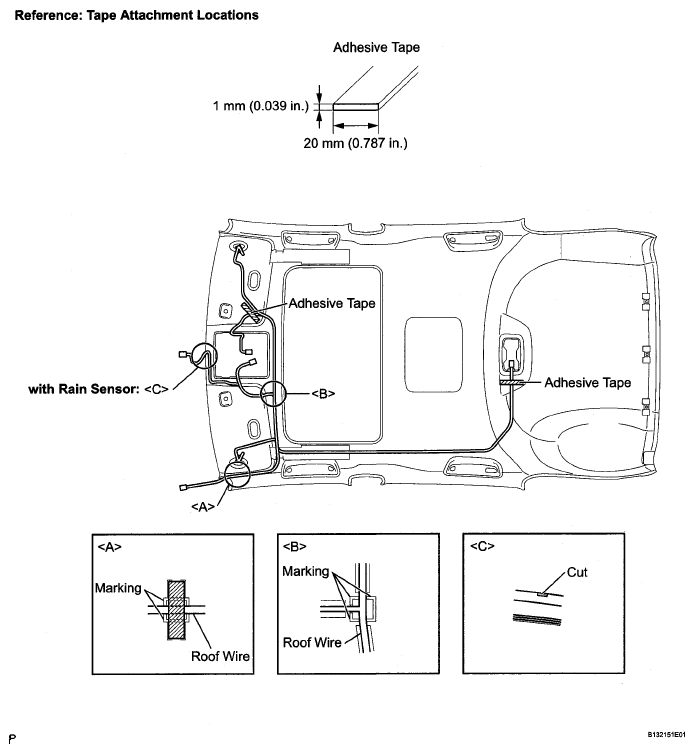

        Fig 6: Identifying Adhesive Tape Location
        G05274882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. with Sliding Roof (Multi-panel Moon Roof Type):
      1. Remove the backing sheet on the double-sided tape without allowing the tape to touch the contact surface.
      2. Apply new double-sided tape to locations shown below after aligning the tape with the marking of the roof headlining.

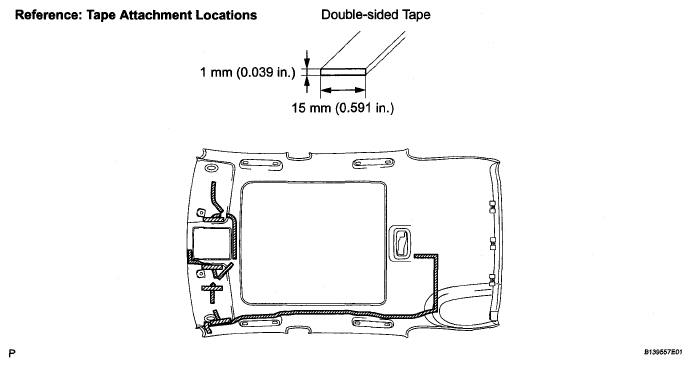

        Fig 7: Identifying Tape Attachment Location
        G05274883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
      3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.

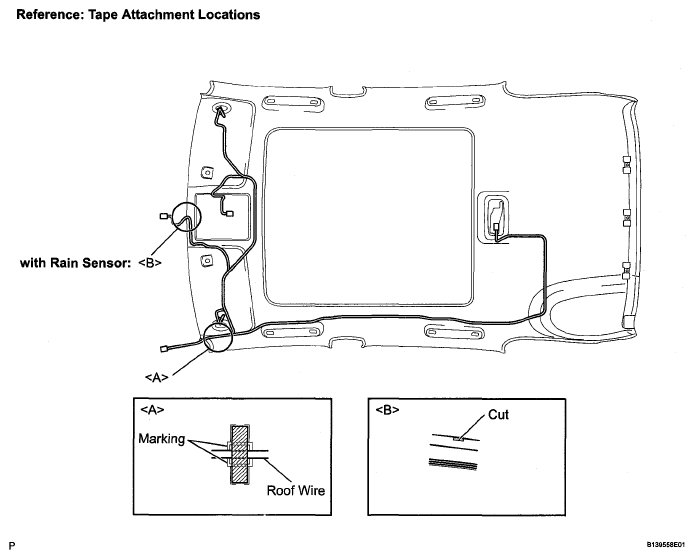

        Fig 8: Identifying Tape Attachment Location On No. 1 Roof Wire
        G05274884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Securely attach the No. 1 roof wire.
        • Do not allow the No. 1 roof wire to sit loosely. Doing so may cause abnormal noise.
  2. INSTALL RADIO ANTENNA CORD  (See INSTALLATION )
  3. INSTALL NO. 5 ROOF SILENCER PAD (for TMMK Made)
    1. Remove the backing sheet on the double-sided tape without allowing the tape to touch the contact surface.
    2. Apply new double-sided tape to locations shown below after aligning the tape with the marking of the roof headlining.

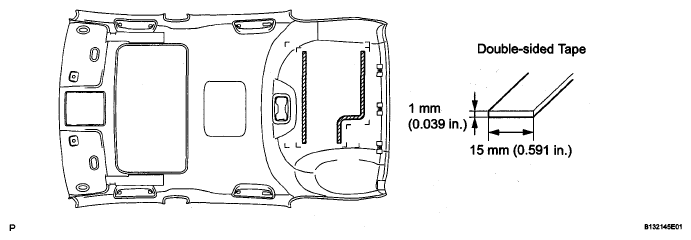

      Fig 9: Identifying Double-Sided Tape Location On Roof Headlining
      G05274885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the markings on the roof headlining assembly with the No. 5 roof silencer pad and install the No. 5 roof silencer pad.
      Fig 10: Identifying Markings On Roof Headlining Assembly With No.5 Roof Silencer Pad
      G05274886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ROOF SIDE RAIL SILENCER PAD (for TMMK Made)
    1. Align the markings on the roof headlining assembly with the roof side rail silencer pad and install the roof side rail silencer pad.

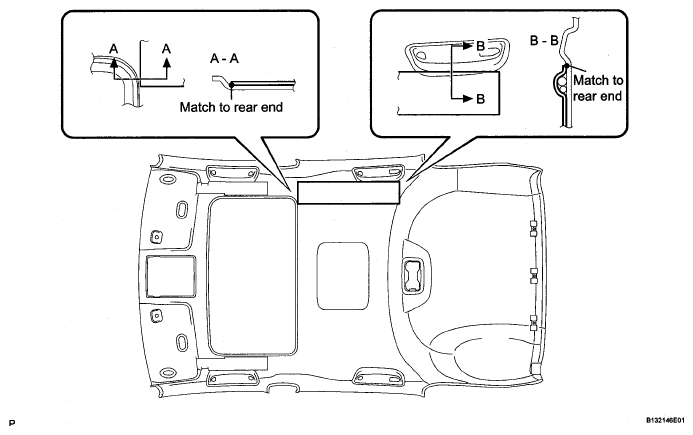

      Fig 11: Identifying Markings On Roof Headlining Assembly With Roof Side Rail Silencer Pad
      G05274887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT ROOF SILENCER PAD (for TMMK Made)
    1. Align the markings on the roof headlining assembly with the roof silencer pad and install the roof silencer pad.

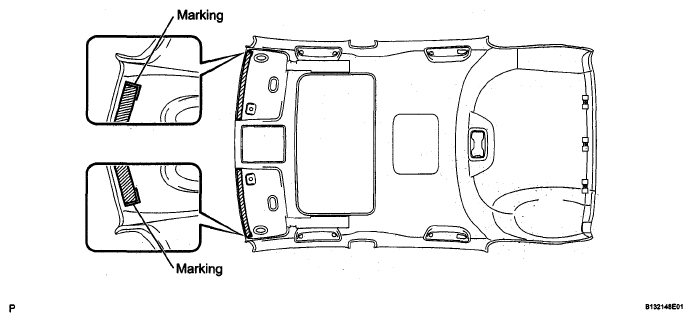

      Fig 12: Identifying Markings On Roof Headlining Assembly With Roof Silencer Pad
      G05274888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ROOF HEADLINING ASSEMBLY
    1. without Sliding Roof:
      1. Engage the 3 clips and 2 fasteners and install the roof headlining assembly.
    2. with Sliding Roof (Standard Type):
      1. Engage the 3 clips and 2 fasteners and install the roof headlining assembly.
    3. with Sliding Roof (Multi-panel Moon Roof Type):
      1. Engage the 3 clips and 12 fasteners and install the roof headlining assembly.

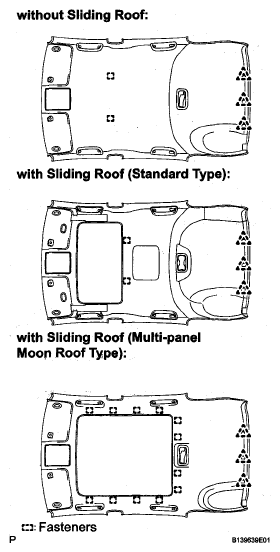

        Fig 13: Identifying Clips & Fasteners On Roof Headlining Assembly
        G05274873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System)
  8. INSTALL TELEVISION BASE (w/ Rear Seat Entertainment System)
  9. INSTALL SUN ROOF OPENING TRIM MOLDING (w/ Sliding Roof)
  10. INSTALL VISOR HOLDER
  11. INSTALL ASSIST GRIP SUB-ASSEMBLY
  12. INSTALL LH VISOR ASSEMBLY
  13. INSTALL RH VISOR ASSEMBLY
  14. INSTALL MAP LIGHT ASSEMBLY
  15. INSTALL RAIN SENSOR (w/ Rain Sensor)  (See INSTALLATION )
  16. INSTALL ROOM LIGHT ASSEMBLY NO. 1
  17. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
  18. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER RH
  19. INSTALL ROOM LIGHT ASSEMBLY NO. 2
  20. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
  21. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
  22. INSTALL ROPE HOOK
  23. INSTALL REAR SEAT SIDE COVER LH
  24. INSTALL REAR SEAT SIDE COVER RH
  25. INSTALL DECK SIDE TRIM COVER LH
  26. INSTALL DECK SIDE TRIM COVER RH
  27. INSTALL REAR FLOOR FINISH SIDE PLATE LH
  28. INSTALL REAR FLOOR FINISH SIDE PLATE RH
  29. INSTALL REAR FLOOR FINISH PLATE
  30. INSTALL DECK SIDE TRIM BOX LH
  31. INSTALL DECK SIDE TRIM BOX RH
  32. INSTALL BACK DOOR WEATHERSTRIP
  33. INSTALL DECK BOARD SUB-ASSEMBLY NO. 3
  34. INSTALL DECK BOARD SUB-ASSEMBLY NO. 2
  35. INSTALL DECK FLOOR BOX REAR
  36. INSTALL DECK FLOOR BOX FRONT
  37. INSTALL TONNEAU COVER ASSEMBLY
  38. INSTALL REAR SEAT ASSEMBLY LH  (See INSTALLATION )
  39. INSTALL REAR SEAT TRACK BRACKET COVER
  40. INSTALL REAR SEAT ASSEMBLY RH  (See INSTALLATION )
  41. INSTALL REAR SEAT TRACK BRACKET COVER
  42. INSTALL DECK BOARD SUB-ASSEMBLY
  43. INSTALL CENTER PILLAR GARNISH LH
  44. INSTALL CENTER PILLAR GARNISH RH
  45. INSTALL CENTER PILLAR GARNISH LOWER LH
  46. INSTALL CENTER PILLAR GARNISH LOWER RH
  47. INSTALL FRONT PILLAR GARNISH LH
  48. INSTALL FRONT PILLAR GARNISH RH
  49. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
  50. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
  51. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  52. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  53. INSTALL REAR DOOR SCUFF PLATE LH
  54. INSTALL REAR DOOR SCUFF PLATE RH
  55. INSTALL FRONT DOOR SCUFF PLATE LH
  56. INSTALL FRONT DOOR SCUFF PLATE RH
  57. INSPECT SLIDE ADJUSTER LOCK  (See INSTALLATION )
