AFS Ecu: Components

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

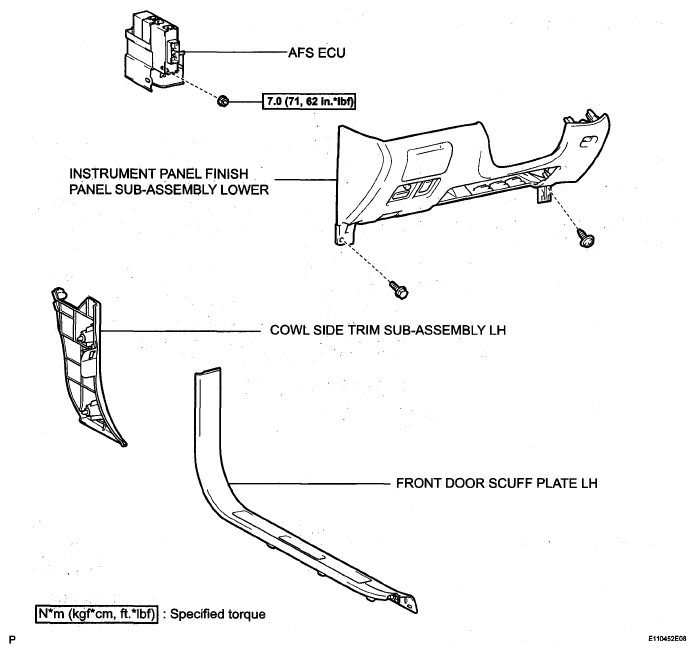

Fig 1: AFS ECU Replacement Components With Torque Specifications
G05274016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
