Parts Location

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

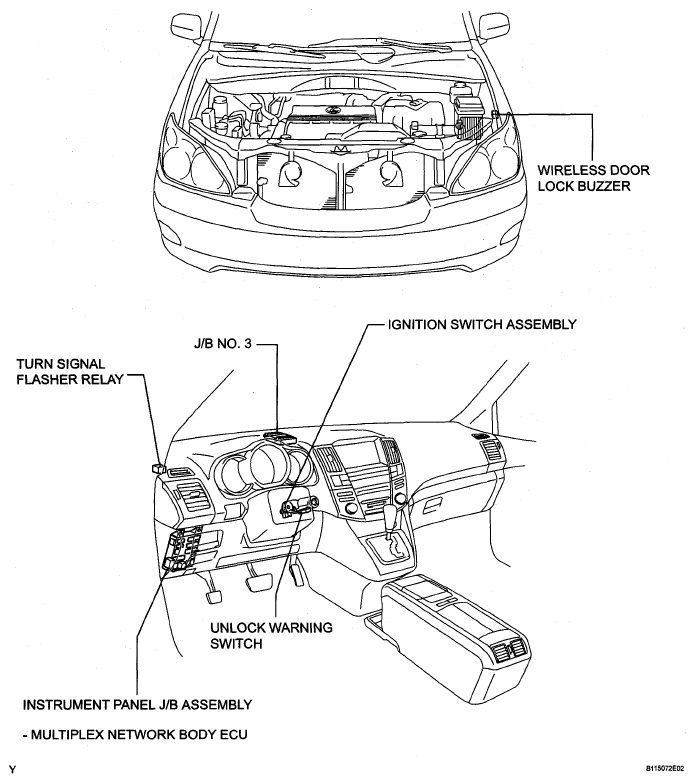

Fig 1: Identifying Wireless Door Lock Control System Replacement Components (1 Of 3)
G05270484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

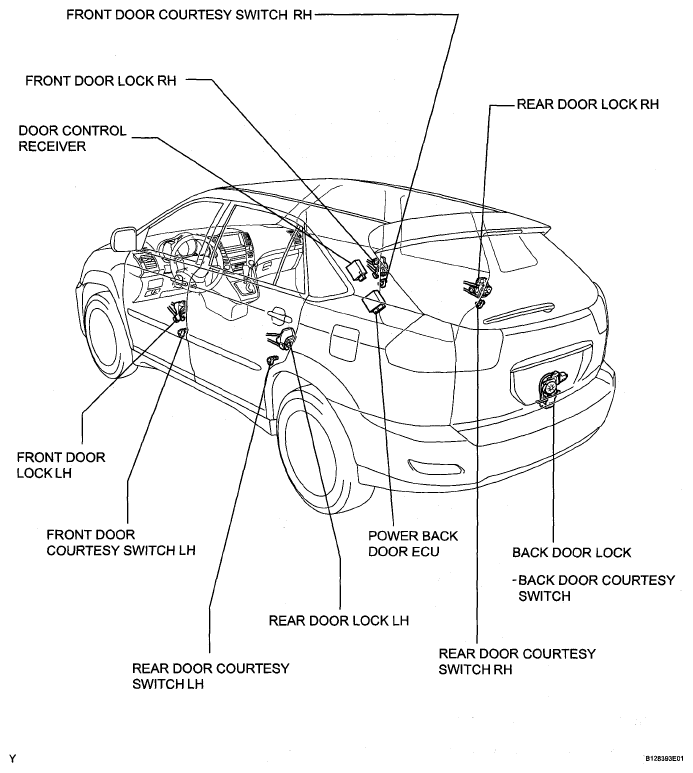

Fig 2: Identifying Wireless Door Lock Control System Replacement Components (2 Of 3)
G05270485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

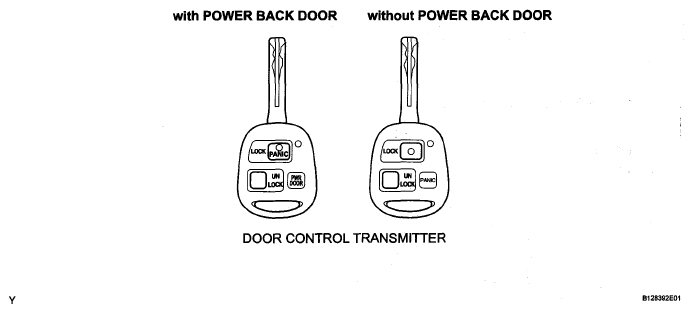

Fig 3: Identifying Wireless Door Lock Control System Replacement Components (3 Of 3)
G05270486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
