INSPECT FRONT DOOR LOCK ASSEMBLY (DOOR LOCK MOTOR)

Remove the front door lock assembly.

Fig 1: Identifying Front Door Lock Assembly (Door Lock Motor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Apply battery voltage and check operation of the door lock motor.

OK:

MEASUREMENT CONNECTION SPECIFIED CONDITION REFERENCE TABLE

Measurement Condition	Specified Condition
Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 1	Lock
Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 4	Unlock

NG: REPLACE FRONT DOOR LOCK ASSEMBLY

OK: Go to next step.

CHECK WIRE HARNESS (FRONT DOOR LOCK ASSEMBLY - INSTRUMENT PANEL J/B)

Disconnect the front door lock assembly connector.

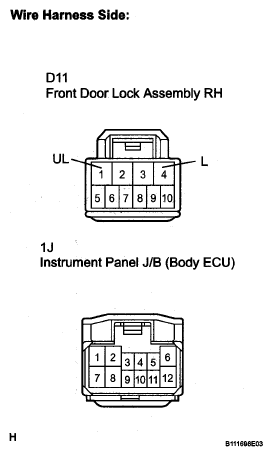

Fig 2: Identifying Front Door Lock Assembly & Instrument Panel J/B Connectors Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the instrument panel J/B connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

Tester Connection	Condition	Specified Condition
D11-4 (L) - 1J-1	Always	Below 1 Ω
D11-1 (UL) - 1J-2	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: OTHERS PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
