Inspection Procedure

1. Check the DATA LIST to ensure proper function of the door unlock detection switch.

   MASTER SW:

   DATA LIST - MASTER SW



   Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
   DOOR KEY LOCK	Driver door lock/unlock switch lock signal (key-linked-lock switch)/ON or OFF	ON: Driver side door key cylinder is turned to LOCK OFF: Driver side door key cylinder is not turned to LOCK	-
   DOOR KEY UNLOCK	Driver door lock/unlock switch unlock signal (key-linked-unlock switch)/ON or OFF	ON: Driver side door key cylinder is turned to UNLOCK OFF: Driver side door key cylinder is not turned to UNLOCK	-

   OK: The display is as specified in the normal condition.

NG: Go to step   2

OK: OTHERS PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

1. Remove the front door lock assembly.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE



   Tester Connection	Condition	Specified Condition
   7 - 9	ON (Door lock set to LOCK)	Below 1 Ω
   7 - 9, 7 - 10	OFF (Free)	10 kΩ or higher
   7 - 10	ON (Door lock set to UNLOCK)	Below 1 Ω

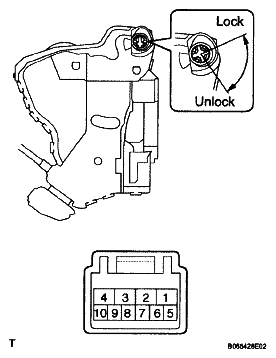

   Fig 1: Identifying Front Door Lock Assembly (Door Key Lock & Unlock Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT DOOR LOCK ASSEMBLY

OK: Go to next step.

1. Disconnect the front door lock assembly connector.
2. Disconnect the multiplex network master switch assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE



   Tester Connection	Condition	Specified Condition
   D10-9 (L) - P22-4 (KL)	Always	Below 1 Ω
   D10-10 (UL) - P22-14 (KUL)	Always	Below 1 Ω
   D10-7 (E) - Body ground	Always	Below 1 Ω

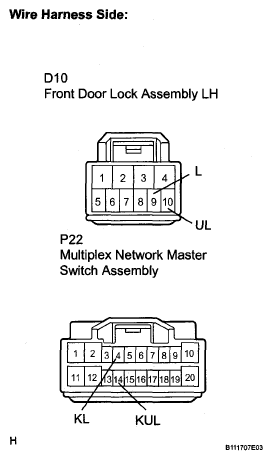

   Fig 2: Identifying Front Door Lock Assembly & Multiplex Network Master Switch Connectors Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: OTHERS PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
