Rear Axle Hub Bolt: Components

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

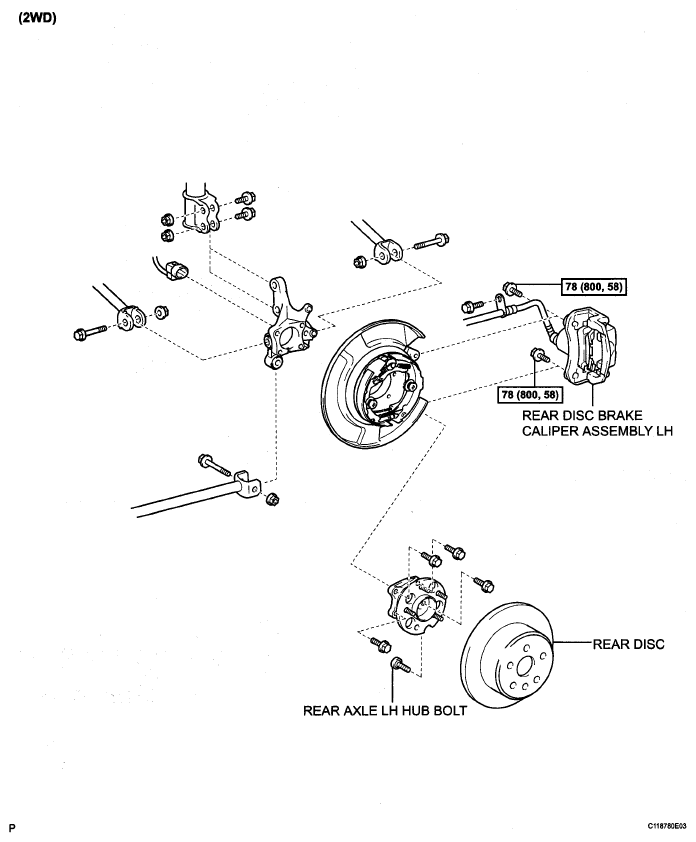

Fig 1: Identifying Rear Axle Hub Bolt Replacement Components With Torque Specifications (2WD)
G05269676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

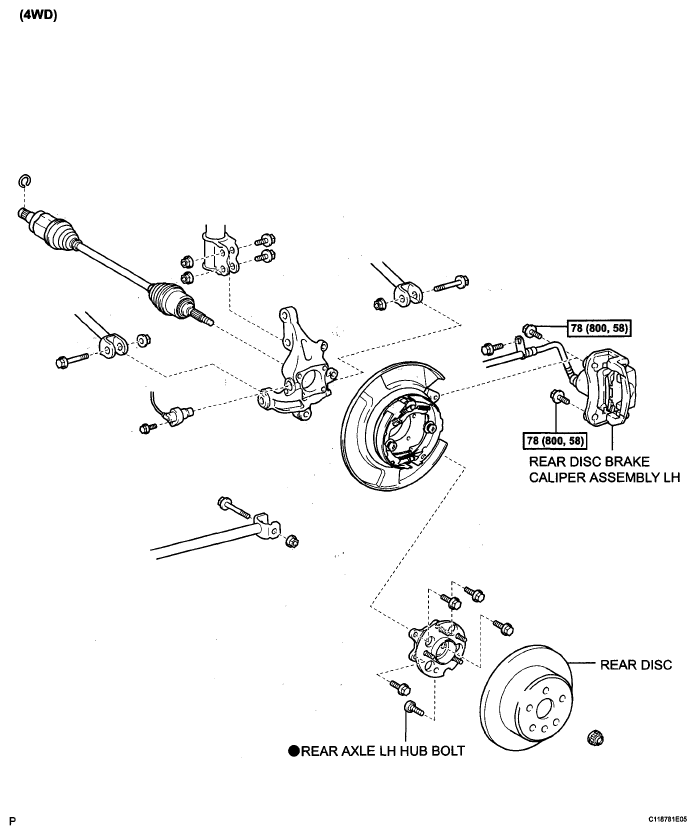

Fig 2: Identifying Rear Axle Hub Bolt Replacement Components With Torque Specifications (4WD)
G05269677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
