Center Airbag Sensor Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

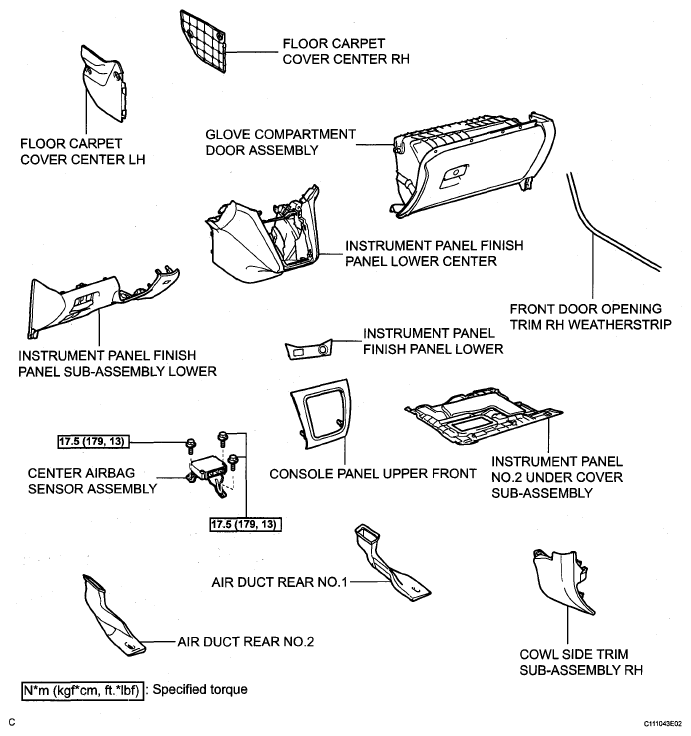

Fig 1: Identifying Center Airbag Sensor Assembly Components (1 Of 2)
G05270421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Center Airbag Sensor Assembly Components (2 Of 2)
G05270422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
