Network Gateway Ecu: Replacement

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See INSTRUMENT PANEL/METER

  1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2 (See step 27 in  REPLACEMENT  )
  2. REMOVE GLOVE COMPARTMENT DOOR ASSY (See step 28 in  REPLACEMENT  )
  3. REMOVE NETWORK GATEWAY ECU
    1. Disconnect the connector.
    2. Remove the screw and the network gateway ECU.

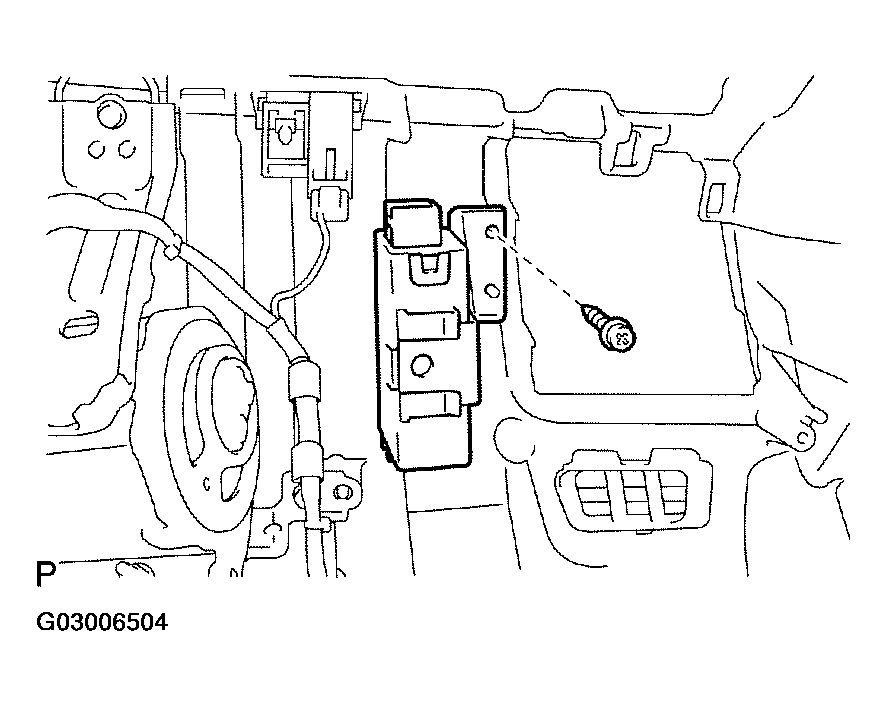

      3. Fig 1: Removing Network Gateway ECU
      G03006504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
