Section 451 (Sliding Roof System - Diagnostics): Location

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

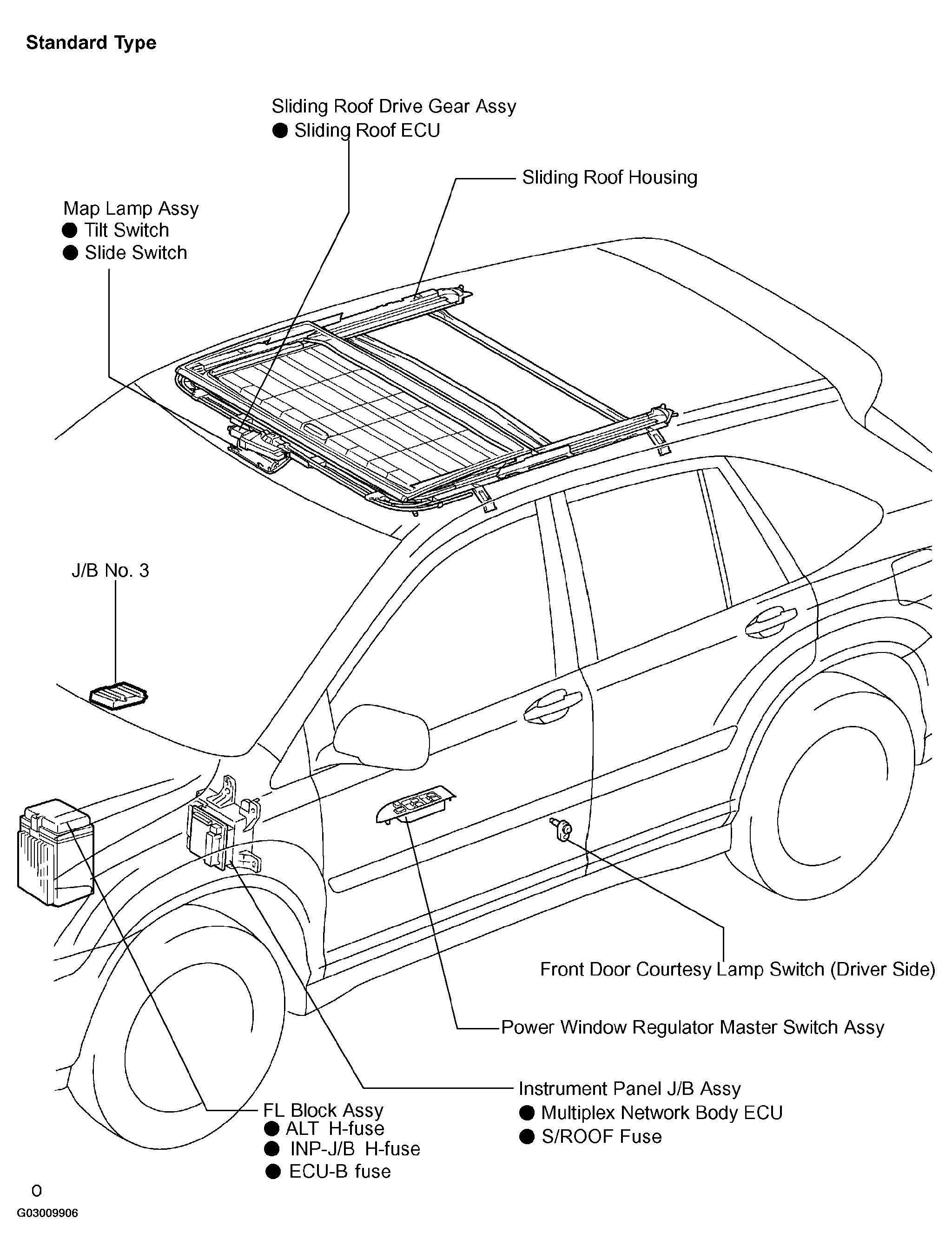

Fig 1: Identifying Sliding Roof System Components Location (Standard Type)
G03009906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

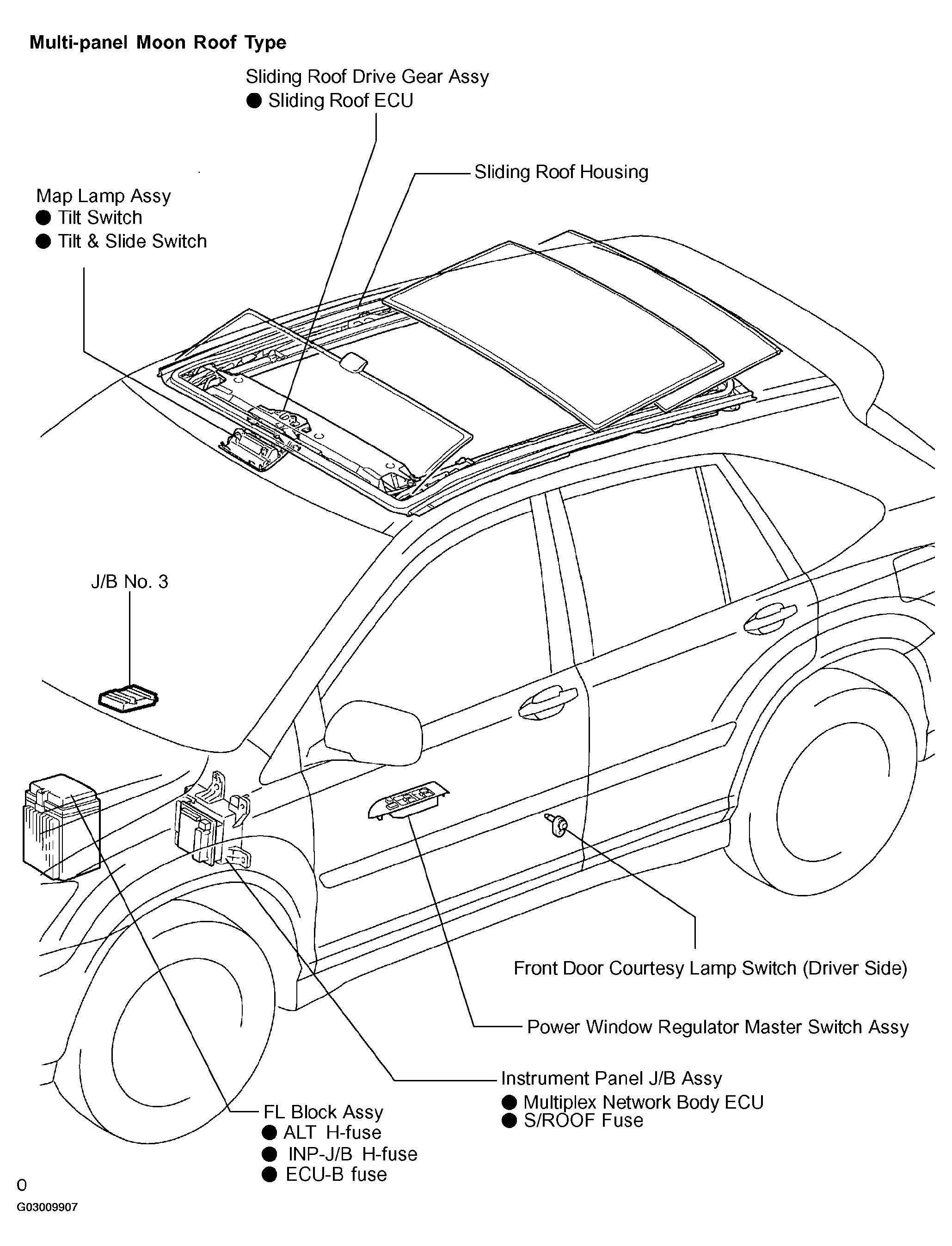

Fig 2: Identifying Sliding Roof System Components Location (Multi-Panel Moon Roof Type)
G03009907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
