Data List/Active Test

HINT:

Using the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.

   Standard:

   Power back door ECU

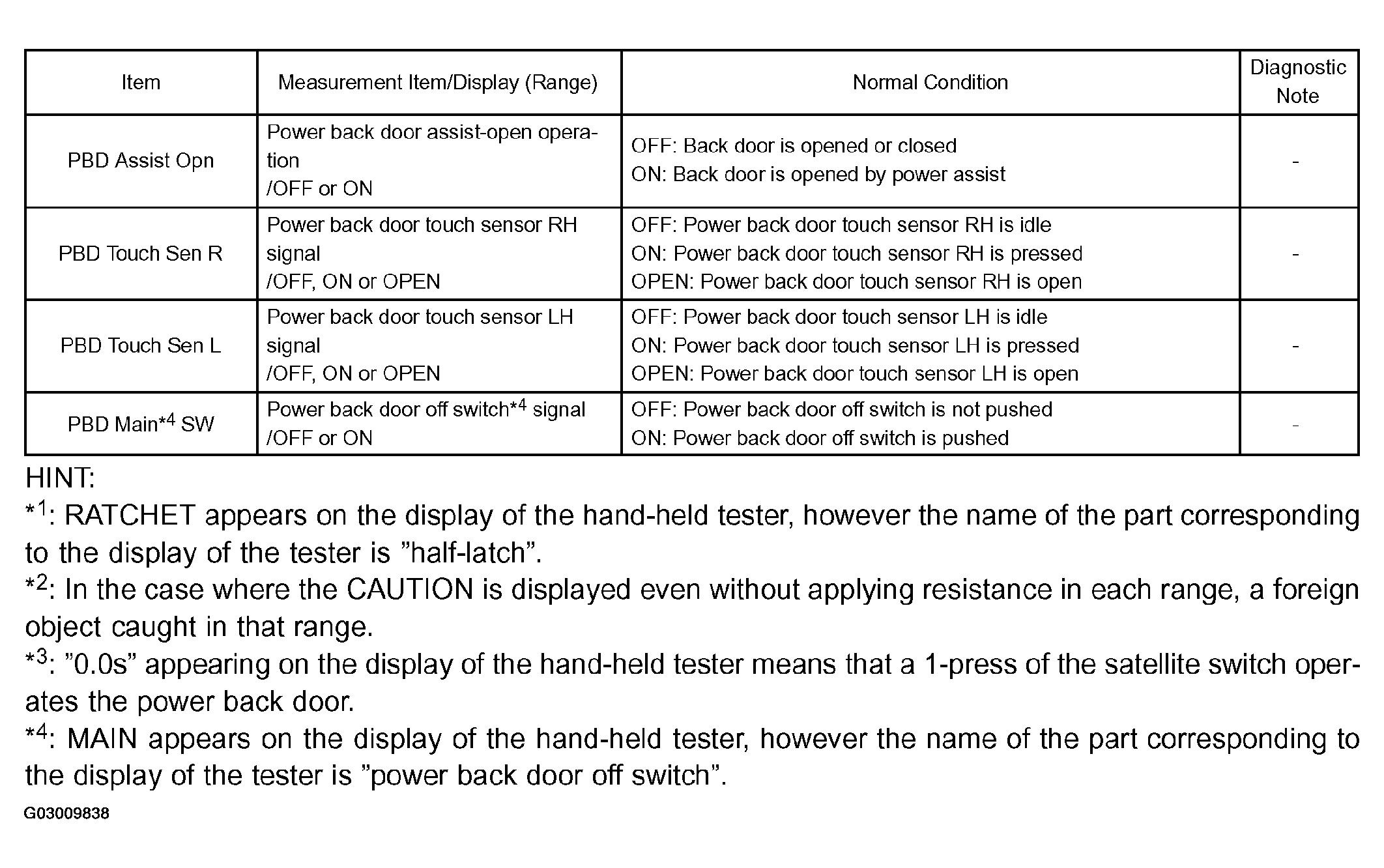

   Fig 1: Data List Chart - Power Back Door ECU (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

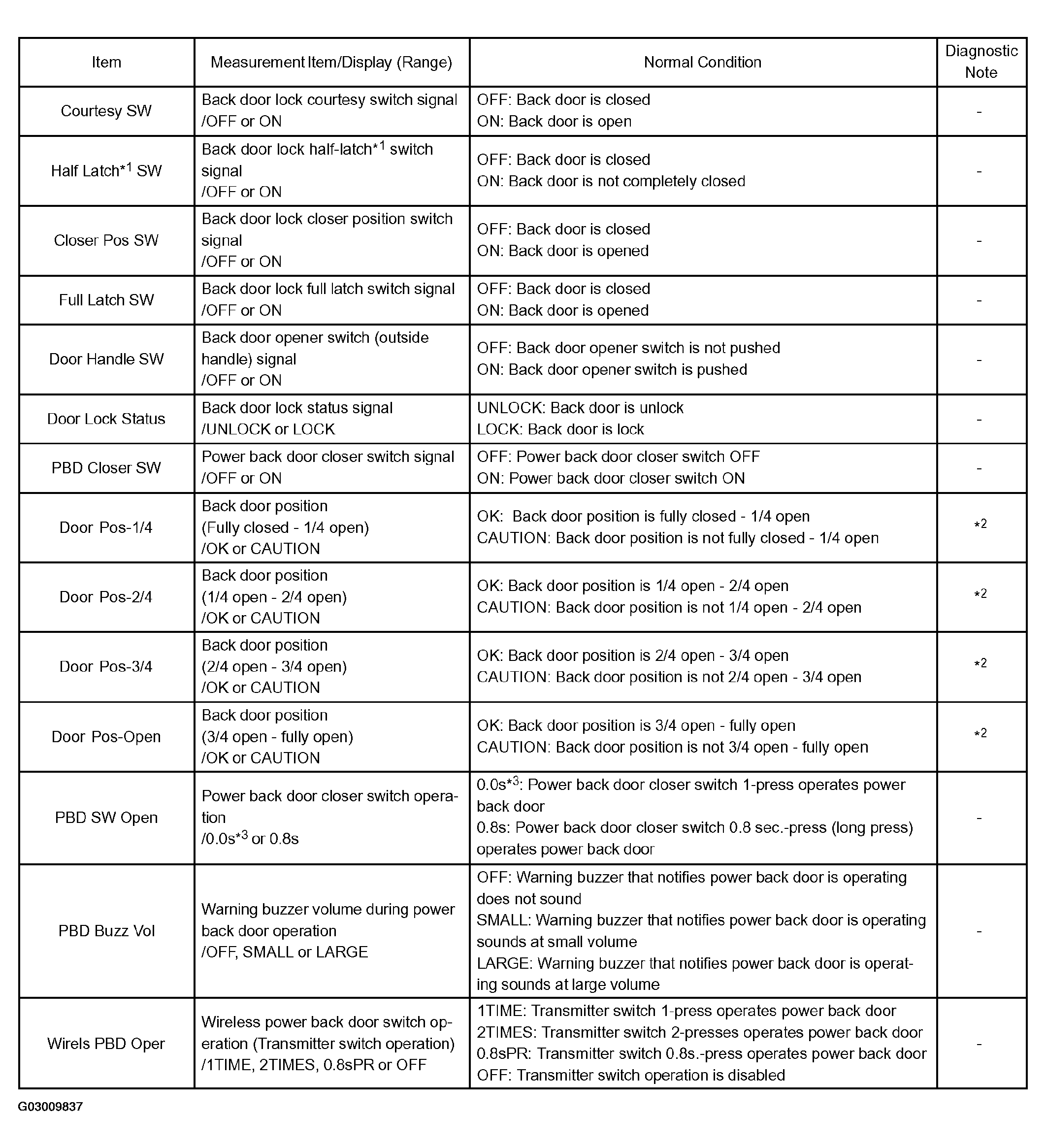

   Fig 2: Data List Chart - Power Back Door ECU (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Multiplex network body ECU

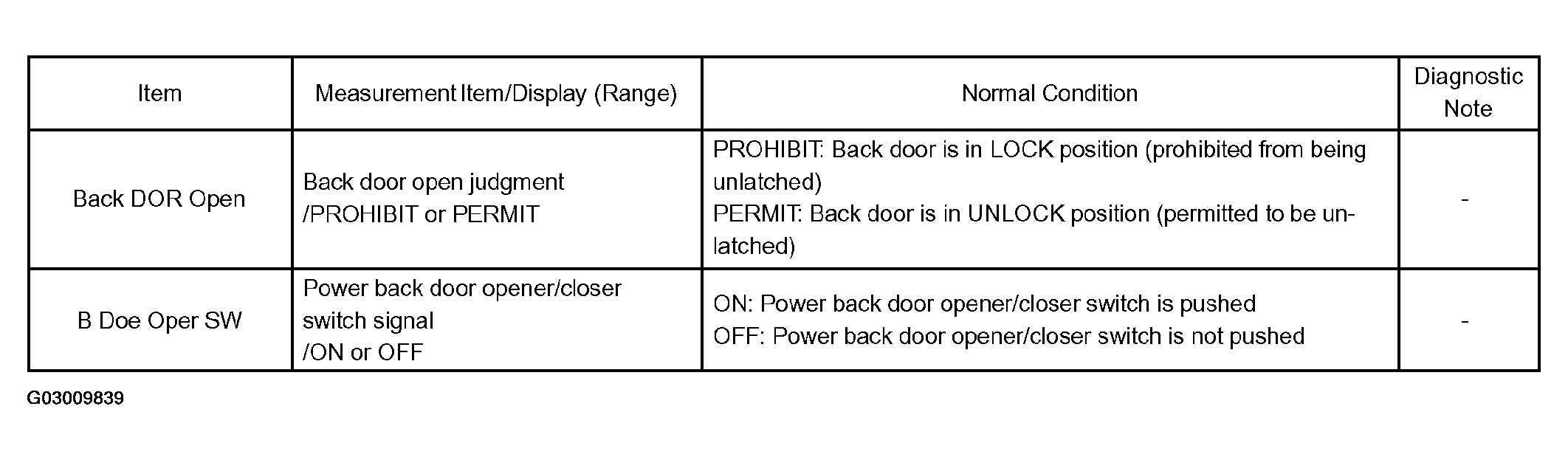

   Fig 3: Data List Chart - Multiplex Network Body ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand-held tester allows you to operate the relay, VSV, actuator, etc. without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten the labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST according to the display on the tester.

   Standard:

   Power back door ECU

   ACTIVE TEST CHART - POWER BACK DOOR ECU



   Item	Test Details	Diagnostic Note
   Latch Release	Back door lock latch is released OFF/ON	-
   PBD Motor	Power back door motor is in operation OFF/FORWARD/REVERSE	Clutch is OFF while power back door motor is in operation
   PBD Clutch	Power back door clutch is in operation OFF/ON	Power back door motor is OFF when clutch is ON
   PBD Buzzer	Power back door buzzer sound OFF/ON	Buzzer sounds once for 0.5 sec.

   Multiplex network body ECU

   ACTIVE TEST CHART - MULTIPLEX NETWORK BODY ECU



   Item	Test Details	Diagnostic Note
   TRUNK/BDOR Open	Operate back door open OFF/ON	-
   Door Lock	Operate door lock motor for all doors OFF/LOCK/UNLOCK	All doors are closed
