Section 215 (Hood): Adjustment

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

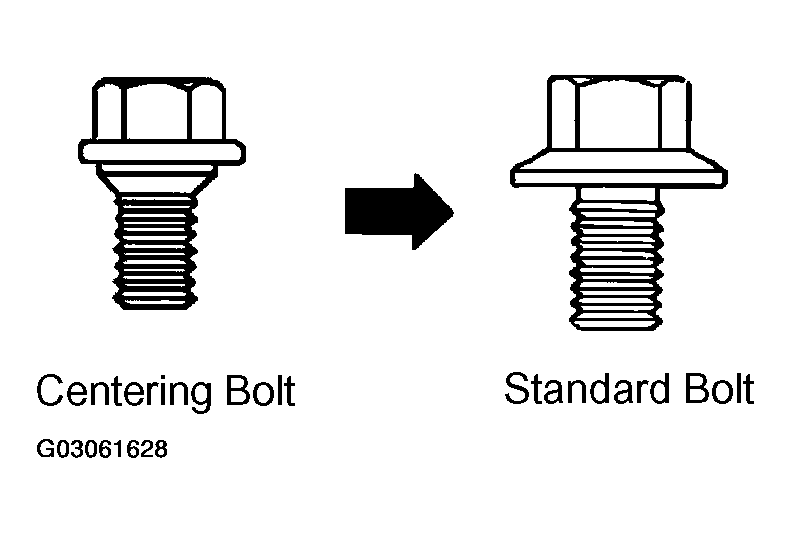

NOTE: Since a centering bolt is used as a hood hinge mounting bolt and hood lock mounting bolt, the hood and hood lock can not be adjusted with them on. Substitute a bolt with a washer for the centering bolt.

Fig 1: Adjusting Hood & Hood Lock

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HOOD SUB-ASSY

Check that the clearance is within the standard range.

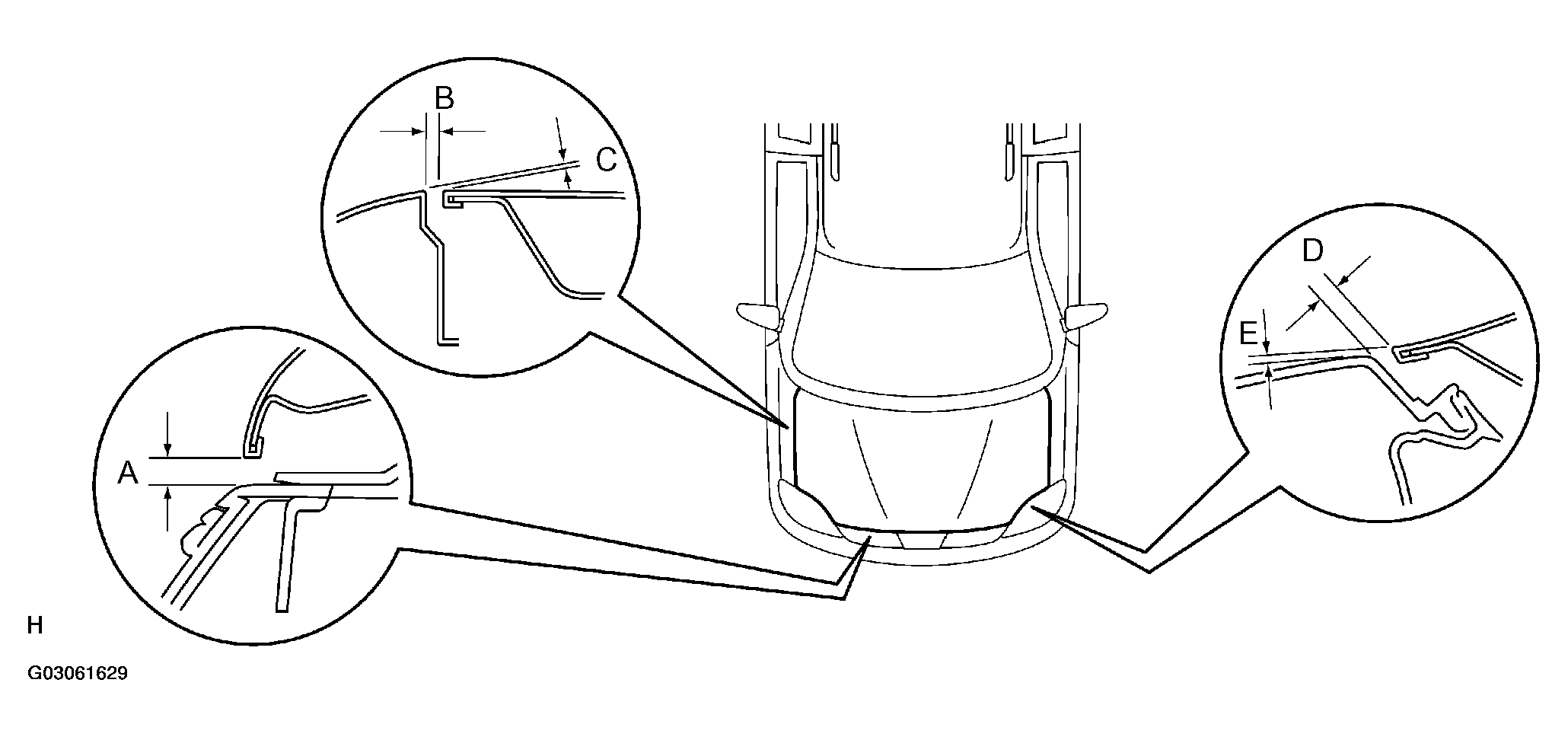

Fig 2: Inspecting Hood Sub-Assy

Standard:

HOOD SUB-ASSY SPECIFICATIONS

A	8.0 +/- 1.5 mm (0.315 +/- 0.059 in.)
B	4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
C	0.4 +/- 1.5 mm (0.015 +/- 0.059 in.)
D	5.0 +/- 1.5 mm (0.197 +/- 0.059 in.)
E	1.1 +/- 1.5 mm (0.043 +/- 0.059 in.)

ADJUST HOOD SUB-ASSY

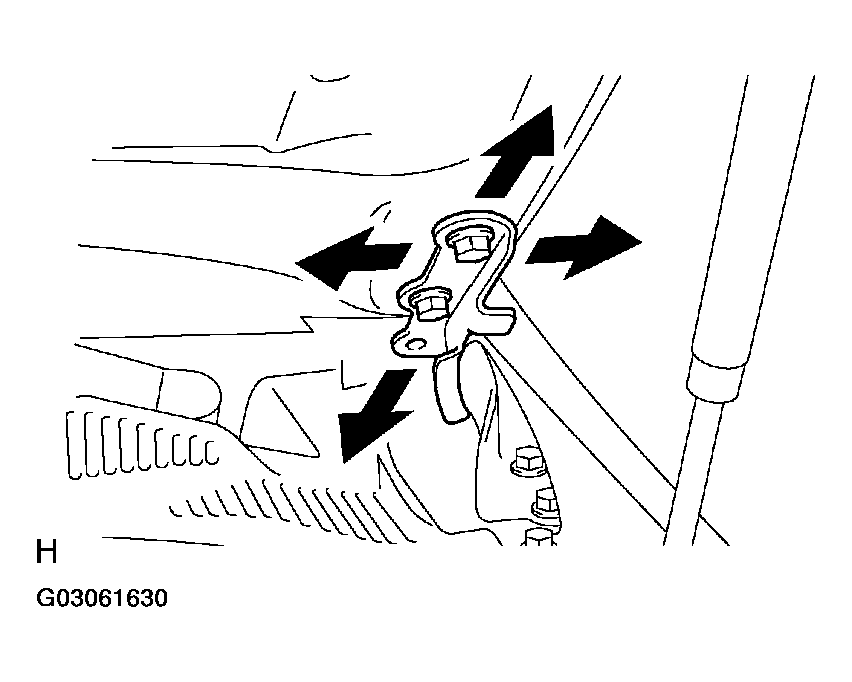

1. Horizontally adjust the hood.
  1. Loosen the 4 hood hinge mounting bolts on the hood side.

    Fig 3: Adjusting Hood Sub-Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

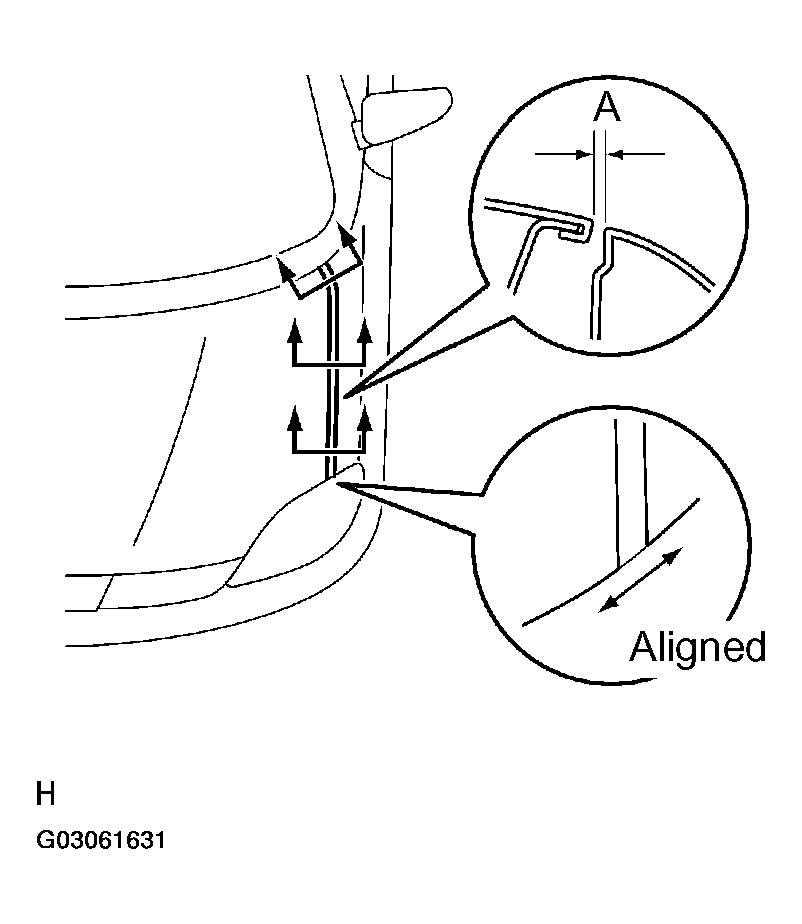

  2. Adjust the clearance by moving the hood, so that it will be in the standard range.
    Standard (A): 4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
  3. Tighten the hood side hinge bolts after the adjustment.
    Torque: 13 N.m (130 kgf.cm, 10 ft.lbf)
  Fig 4: Adjusting Hood Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

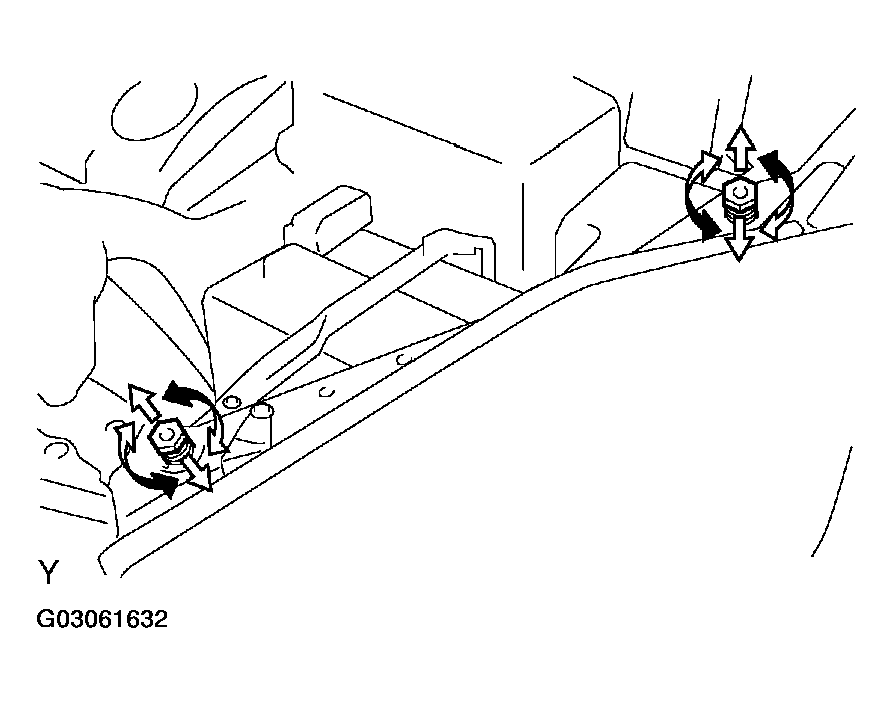

2. Adjust the height of the hood front end using the cushion rubber.
  1. Adjust the cushion rubber so that the hood and the fender will be aligned.
  NOTE: The cushion rubber goes up and down when turned.
3. Adjust the hood lock.
  1. Remove the front bumper cover (See FRONT BUMPER ).

    Fig 5: Removing Front Bumper Cover
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

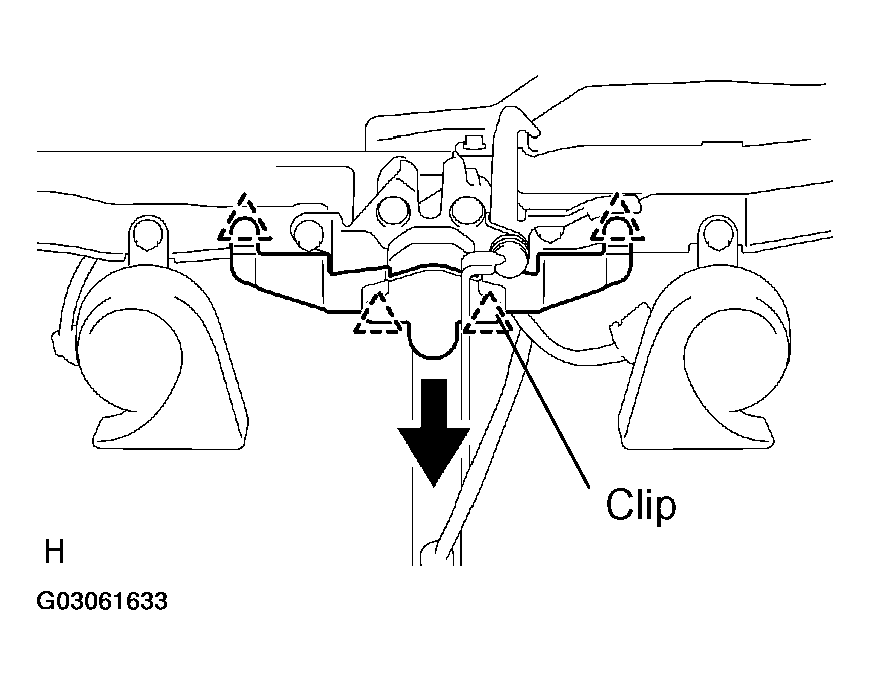

  2. Using a screwdriver, disengage the 4 claws and remove the hood lock release lever protector.
    NOTE: Tape the screwdriver tip before use.

    NOTE: Removing the protector damages the clips inside the protector. Therefore, the use of a new protector is necessary for installation.

    Fig 6: Removing Protector Damages Clips Inside Protector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

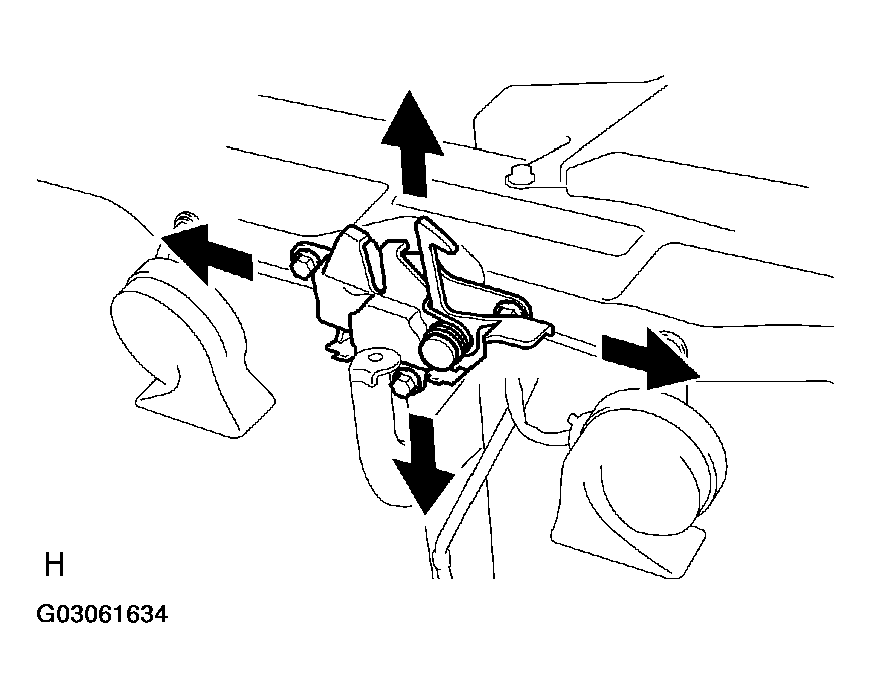

  3. Loosen the 3 hood lock mounting bolts.
  4. Adjust the striker position by moving the hood lock, so that the striker can enter smoothly.
  5. Tighten the hood lock bolts after the adjustment.
    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
  Fig 7: Tightening Hood Lock Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
