Fuel Pump Control Circuit: Wiring Diagram

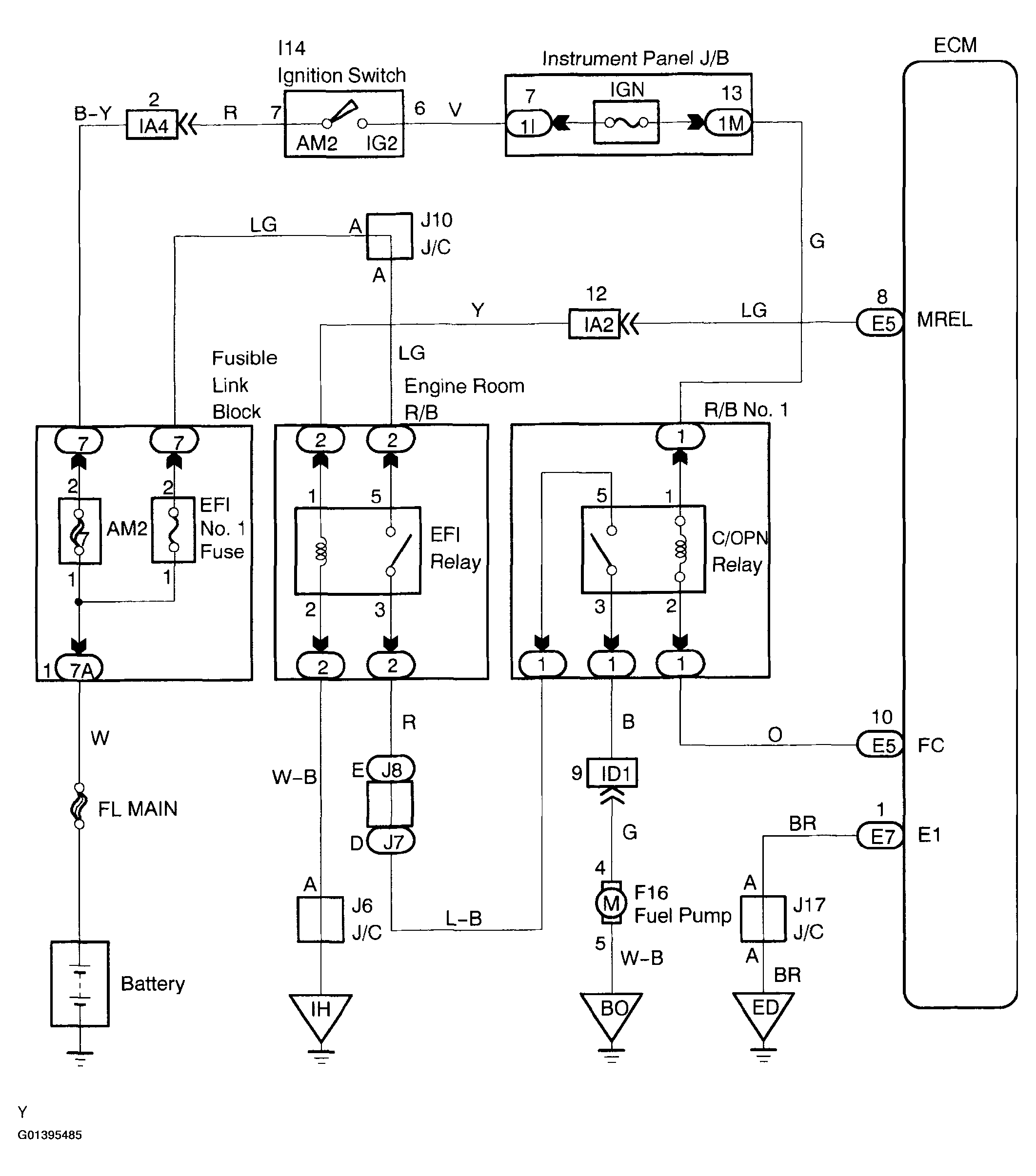

Fig 1: Fuel Pump Control Circuit

G01395485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
