Typical Enabling Conditions

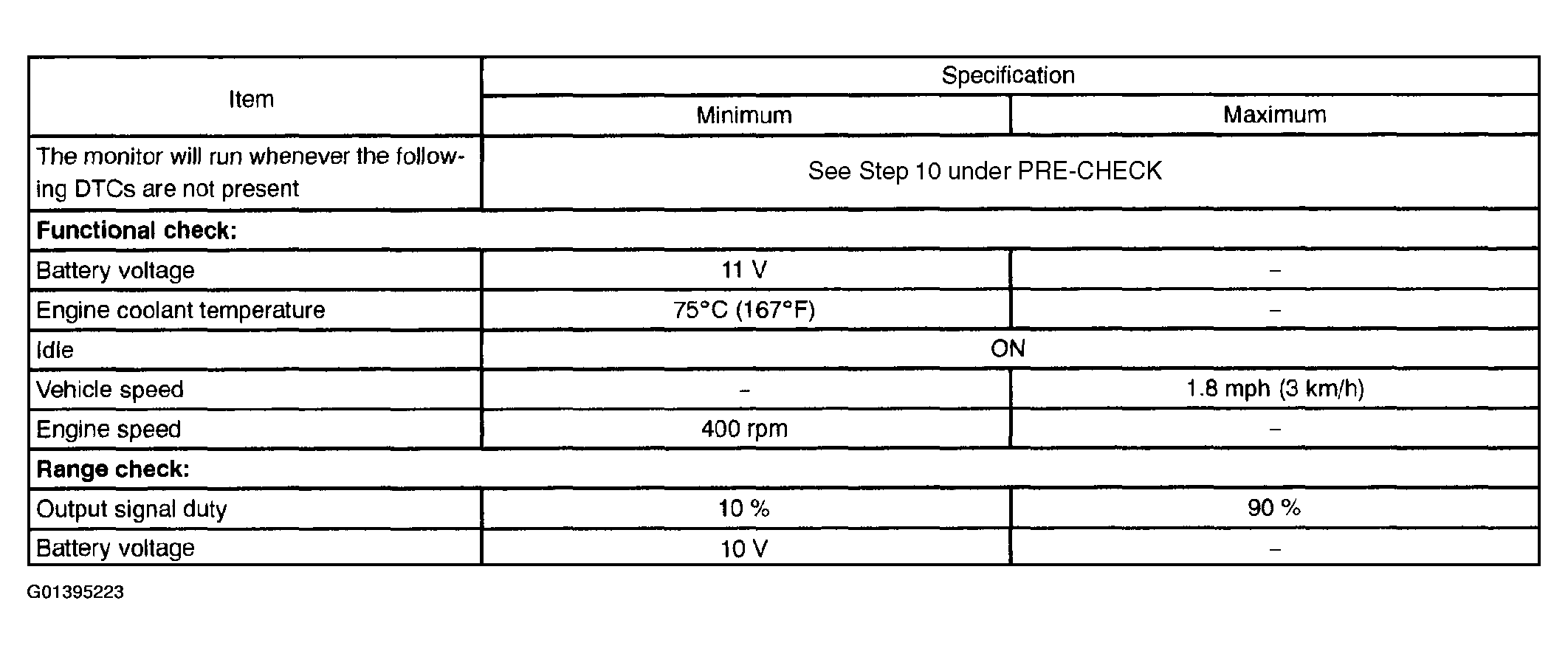

Fig 1: Typical Enabling Conditions

G01395223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
