Active Control Engine Mount: Wiring Diagram

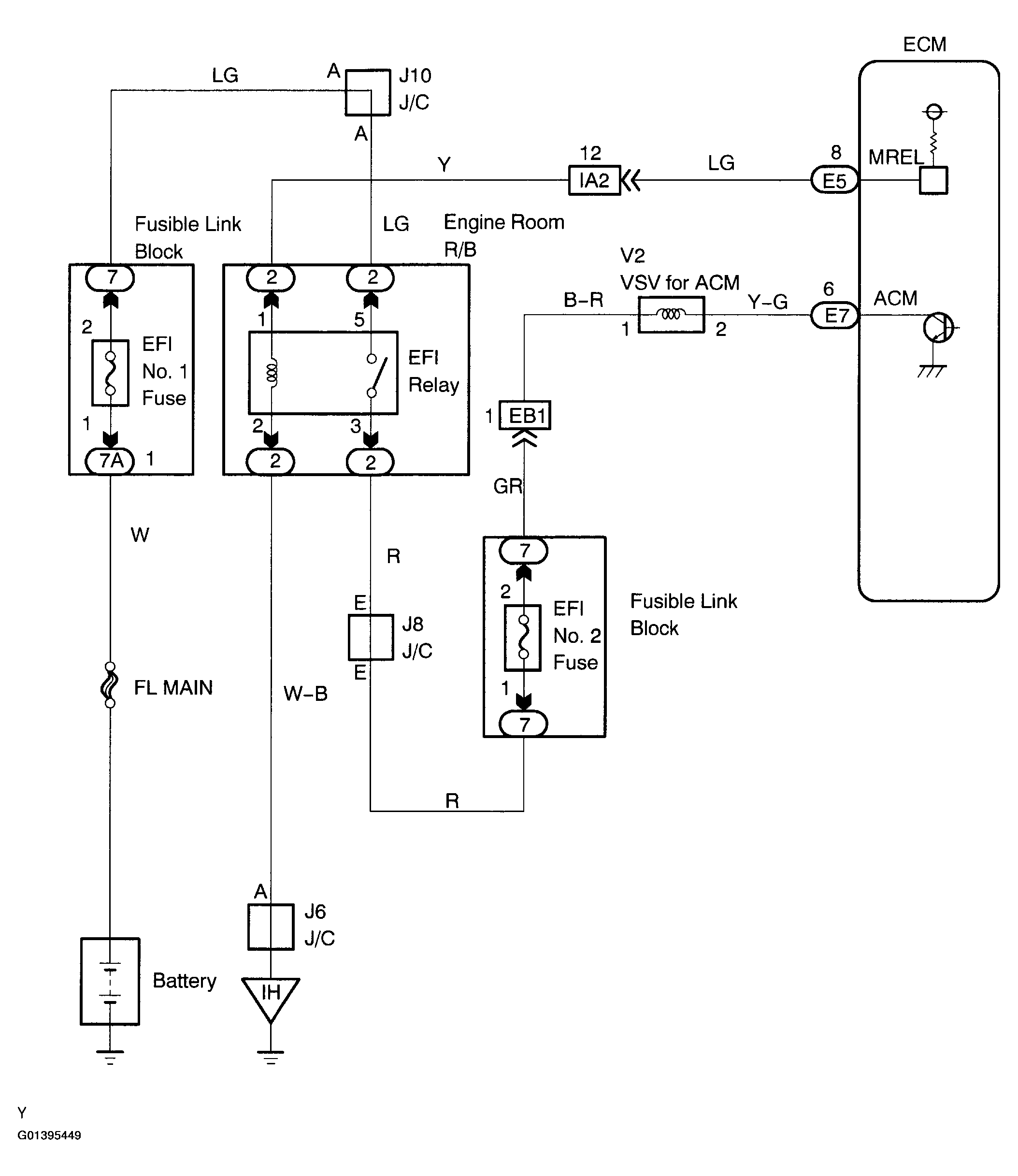

Fig 1: Active Control Engine Mount Circuit

G01395449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
