Instrument Panel Safety Pad Sub-ASSY: Replacement

HINT:

COMPONENTS: See INSTRUMENT PANEL/METER

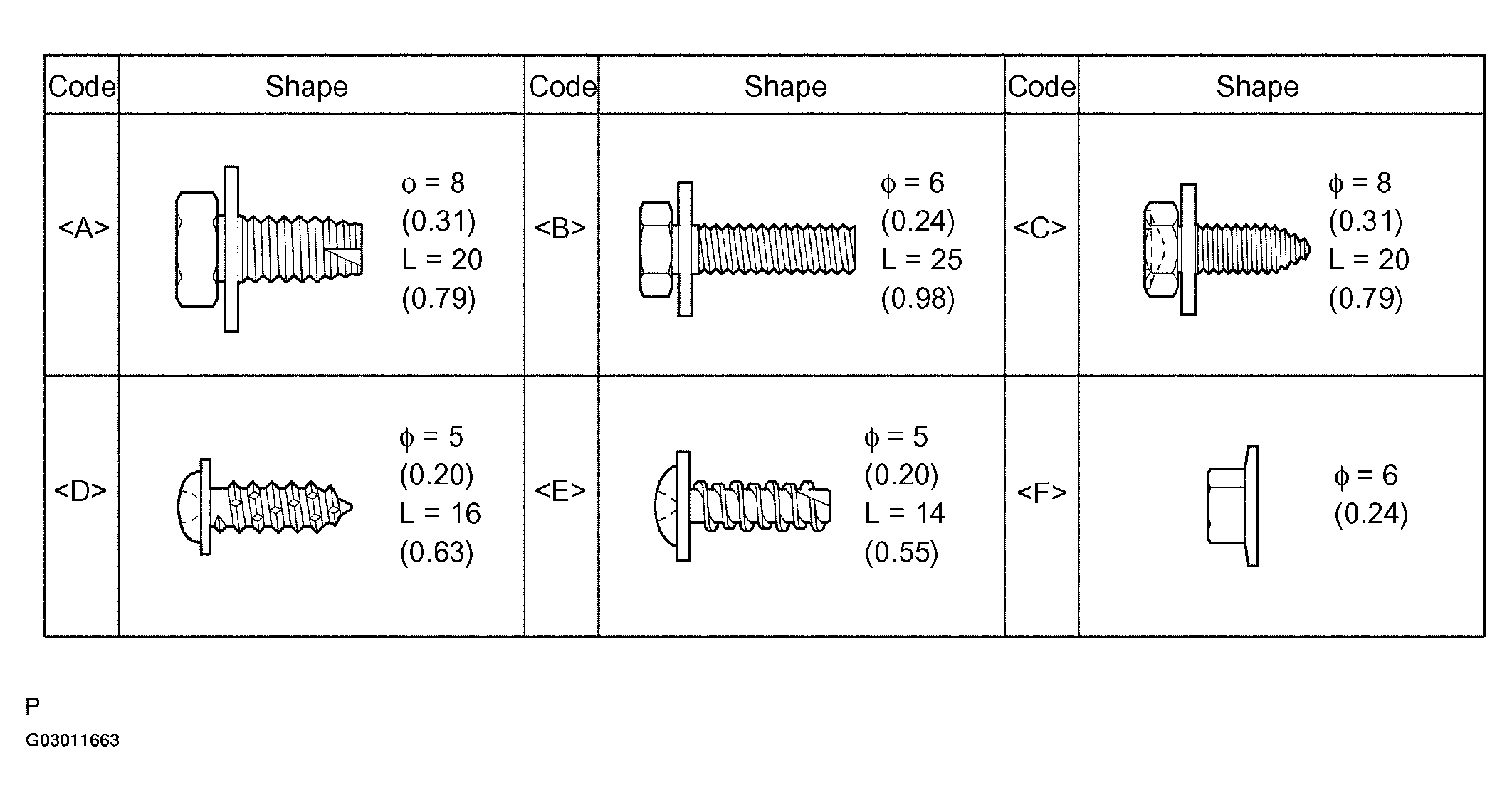

1. TABLE OF BOLT, SCREW AND NUT

   HINT:

   The bolts, screws and nuts, necessary for installation and removal of the instrument panel, are shown in Fig 1 with alphabet code.

   Fig 1: Screws And Nuts Specification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. PRECAUTION (See  AIR BAG RESTRAINT SYSTEMS  )
3. DISCONNECT BATTERY NEGATIVE TERMINAL

   (MANUAL TILT: See AIR BAG RESTRAINT SYSTEMS )

   (POWER TILT & TELESCOPIC: See OVERHAUL )

4. REMOVE SHIFT LEVER KNOB SUB-ASSY
   1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assy.
      Fig 2: Turning Shift Lever Knob Counterclockwise

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

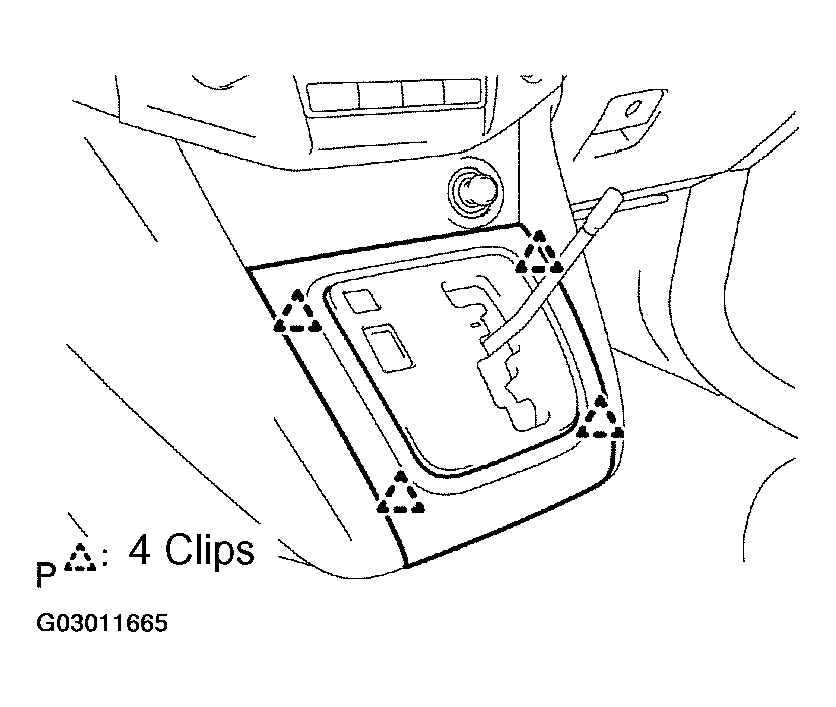

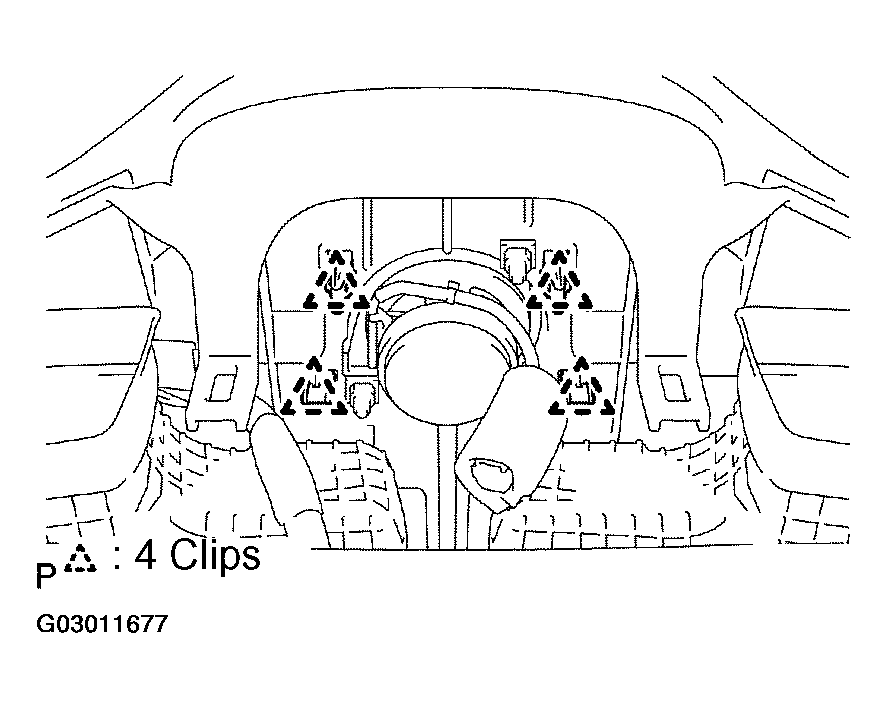

5. REMOVE CONSOLE PANEL UPPER FRONT
   1. Disengage the 4 clips and remove the console panel upper front.
      Fig 3: Removing Console Panel Upper Front

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

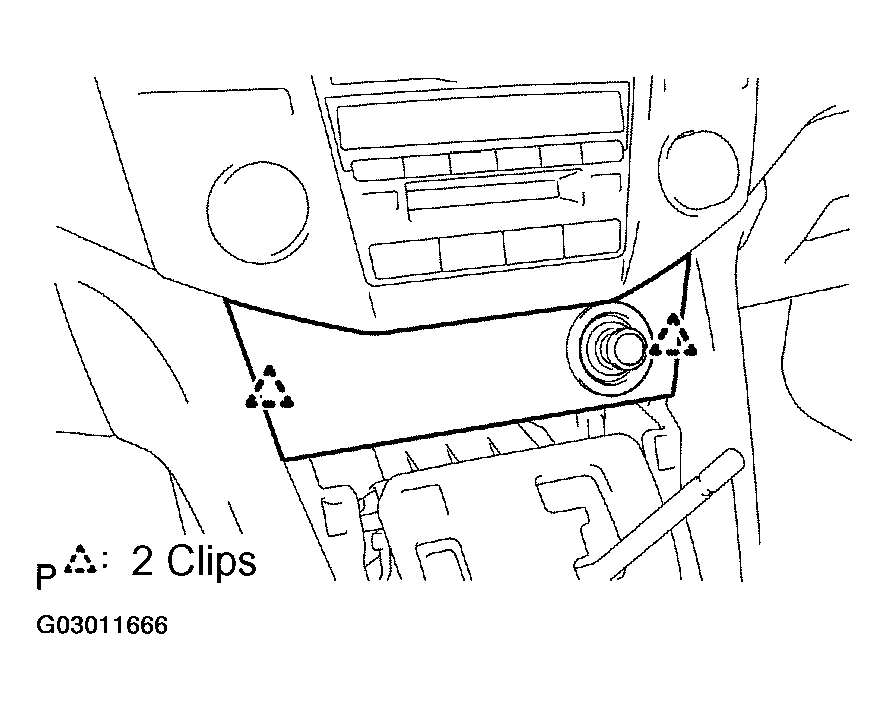

6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
   1. Disengage the 2 clips and remove the instrument panel finish panel lower, then disconnect the connectors.
      Fig 4: Removing Instrument Panel Finish Panel Lower

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO RECEIVER ASSY (See  REPLACEMENT  )
8. REMOVE CENTER CLUSTER INTEGRATION SWITCH ASSY (W/O LEXUS NAVIGATION SYSTEM) (See  OVERHAUL  )
9. REMOVE MULTI-DISPLAY ASSY (W/ LEXUS NAVIGATION SYSTEM) (See  REPLACEMENT  )
10. REMOVE STEERING WHEEL COVER LOWER NO.2
11. REMOVE STEERING WHEEL COVER LOWER NO.3
12. REMOVE HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
13. REMOVE STEERING WHEEL ASSY

    (MANUAL TILT: See  OVERHAUL  )

    (POWER TILT & TELESCOPIC: See  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

14. REMOVE STEERING COLUMN COVER

    (MANUAL TILT: See  OVERHAUL  )

    (POWER TILT & TELESCOPIC: See  OVERHAUL  )

15. REMOVE TILT & TELESCOPIC SWITCH (TILT & TELESCOPIC STEERING) (See  OVERHAUL  )
16. REMOVE SPIRAL CABLE SUB-ASSY (See  REMOVAL  )
17. REMOVE HEADLAMP DIMMER SWITCH ASSY (See  REPLACEMENT  )
18. REMOVE WINDSHIELD WIPER SWITCH ASSY (See  REPLACEMENT  )
19. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
20. REMOVE COWL SIDE TRIM SUB-ASSY LH

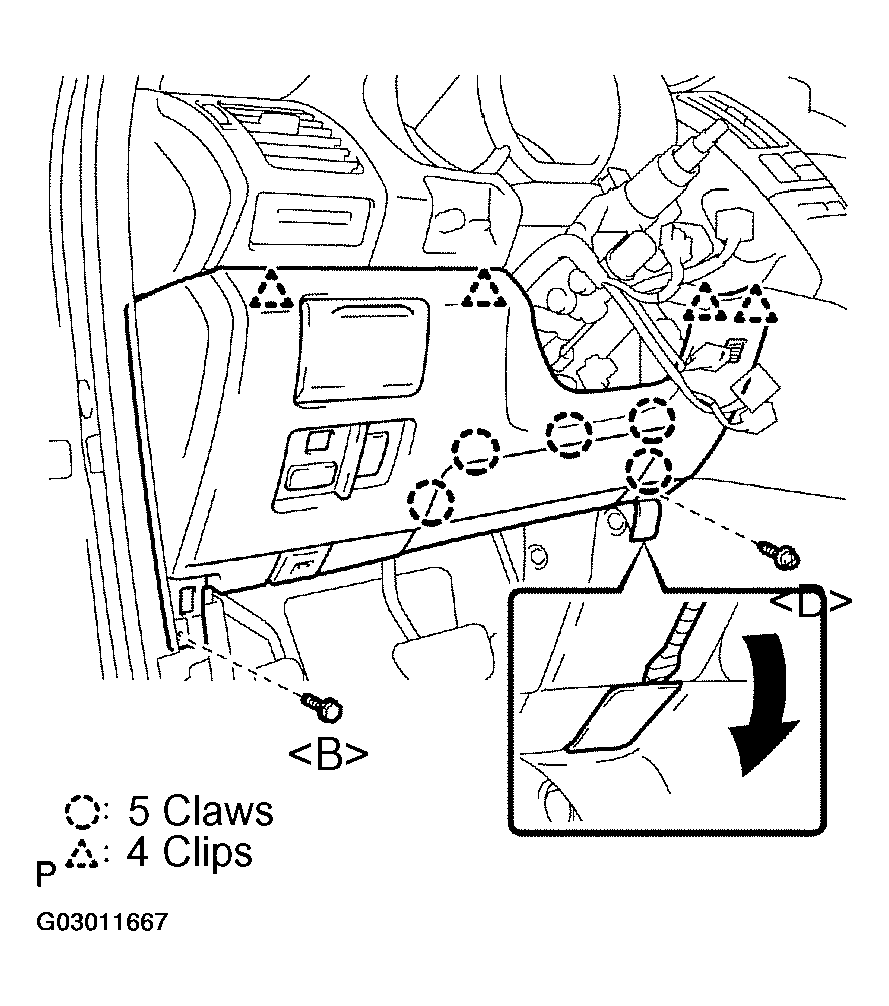

21. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
    1. Remove the bolt < B > and the screw < D >.
    Fig 5: Removing Instrument Panel Finish Panel Sub-Assy Lower
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assy.
    3. Disengage the 5 claws and remove the 4 clips and the instrument panel finish panel sub-assy lower.
    4. Disconnect the connectors.

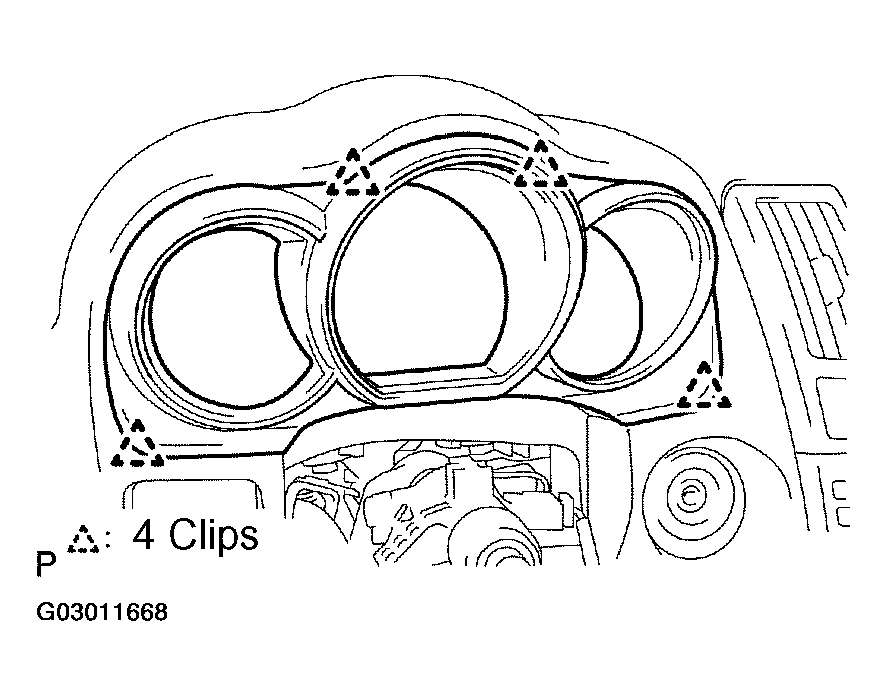

22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
    1. Disengage the 4 clips and remove the instrument cluster finish panel sub-assy.
       Fig 6: Removing Instrument Cluster Finish Panel Sub-Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

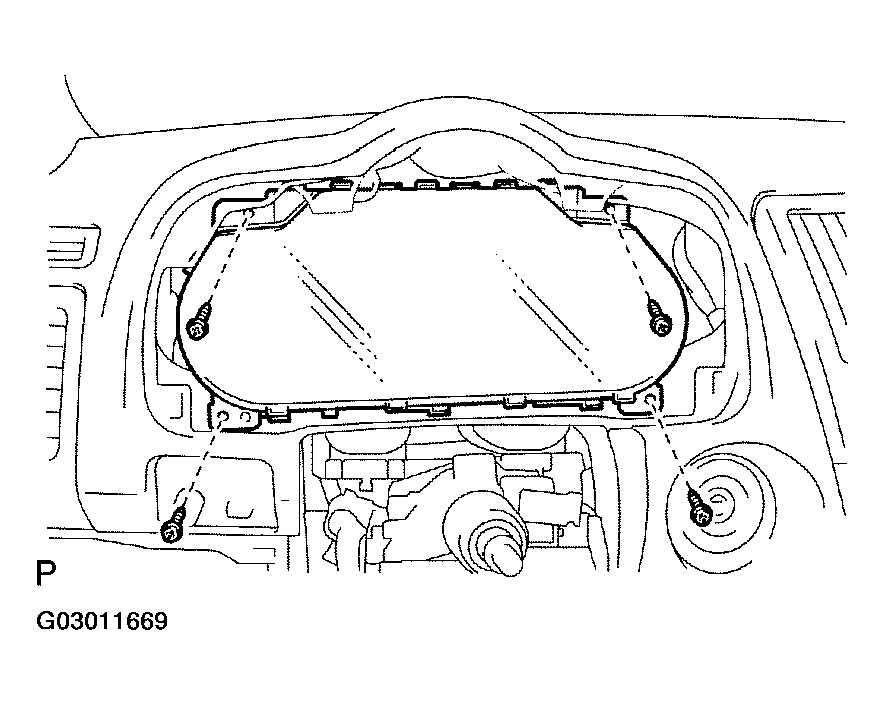

23. REMOVE COMBINATION METER ASSY
    1. Remove the 4 screws < E >.
    2. Pull out the combination meter assy, then disconnect the connectors.
       Fig 7: Removing Combination Meter Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (See  REMOVAL & INSTALLATION  )
25. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
26. REMOVE COWL SIDE TRIM SUB-ASSY RH

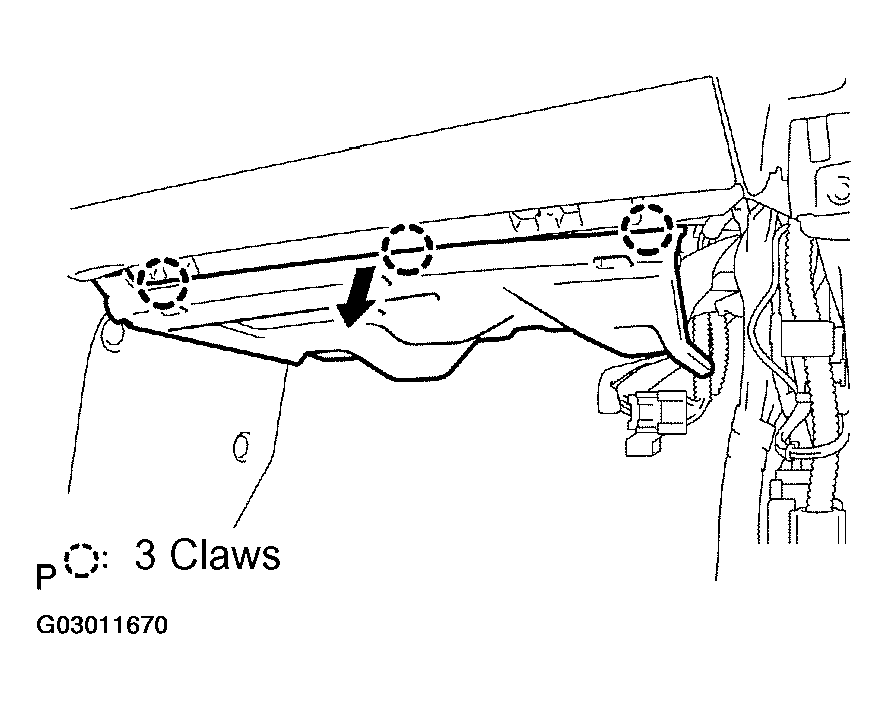

27. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
    1. Disengage the 3 claws, pull the instrument panel under cover sub-assy No.2 in the arrow direction, and remove it.
       Fig 8: Pulling Instrument Panel Under Cover Sub-Assy No. 2

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

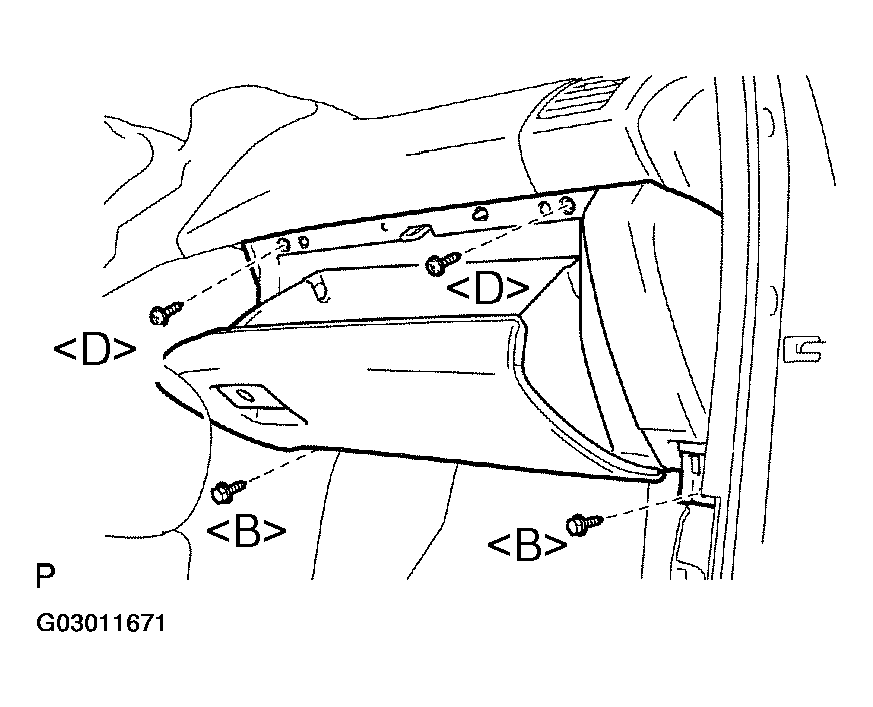

28. REMOVE GLOVE COMPARTMENT DOOR ASSY
    1. Remove the 2 bolts < B > and the 2 screws, < D >.
    Fig 9: Removing Glove Compartment Door Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the glove compartment door assy to the rear to remove it.
    3. Disconnect the connector.
29. REMOVE FLOOR CARPET COVER CENTER LH
    1. Remove the 2 clips from the floor carpet cover center LH.
    Fig 10: Removing Floor Carpet Cover Center LH
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Depress the edge of the floor carpet cover center LH around the claws to disengage the 2 claws below the floor carpet cover center LH.
    3. Slide the floor carpet cover center LH to the front of the vehicle, disengage the 2 claws from the instrument panel finish panel lower center at the floor carpet cover center LH.
    4. Remove the floor carpet cover center LH.
30. REMOVE FLOOR CARPET COVER CENTER RH

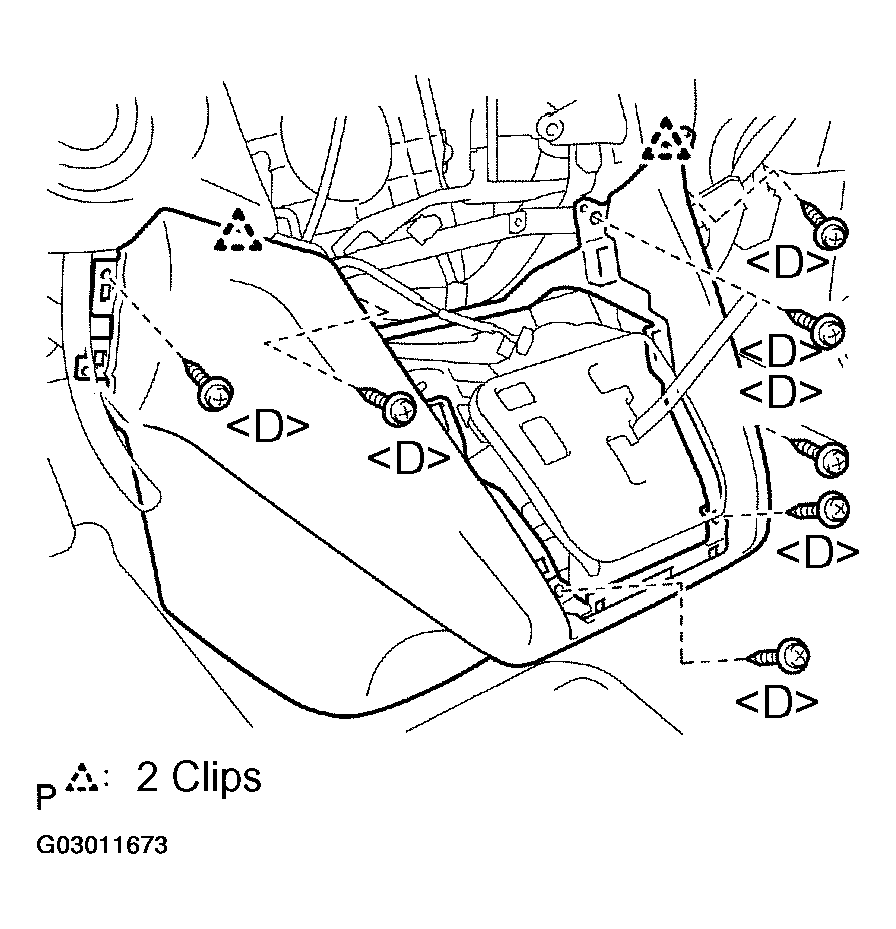

31. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
    1. Remove the 7 screws < D >.
    2. Disengage the 2 clips and remove the instrument panel finish panel lower center.
       Fig 11: Removing Instrument Panel Finish Lower Center

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
32. REMOVE FRONT PILLAR GARNISH LH (See  REPLACEMENT  )
33. REMOVE FRONT PILLAR GARNISH RH (See  REPLACEMENT  )
34. REMOVE INSTRUMENT PANEL FINISH PLATE

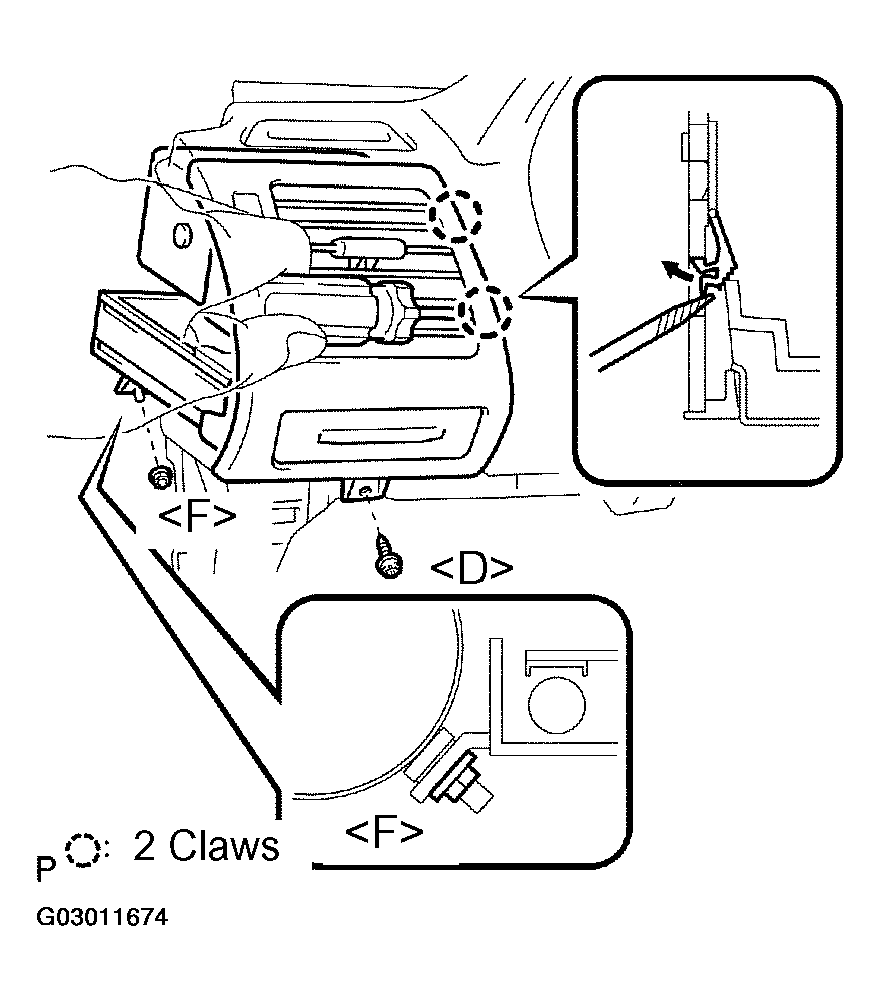

35. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
    1. Remove the screw < D > and nut < F >.
    Fig 12: Removing Instrument Panel Register Assy No. 1
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, lever up the 2 claws on the body from inside of the register.
    3. Remove the instrument panel register assy No.1.

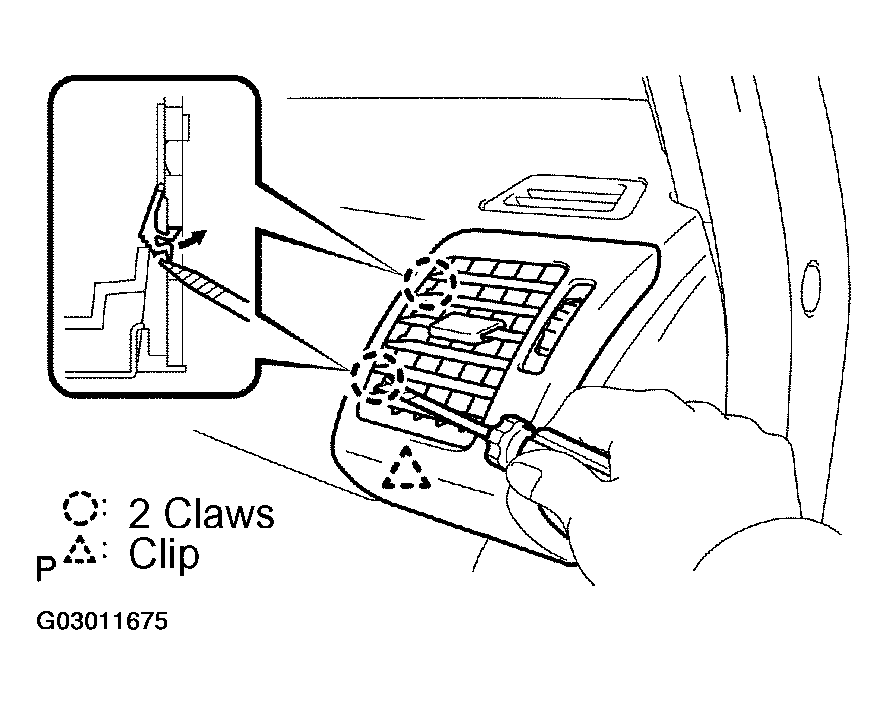

36. REMOVE INSTRUMENT PANEL REGISTER ASSY LOWER NO.1
    1. Using a screwdriver, lever up the 2 claws and on the body from inside of the register.
    2. Disengage the clip and remove the instrument panel register assy lower No.1.
       Fig 13: Removing Instrument Panel Register Assy Lower No. 1

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
37. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
    1. Remove the bolts and nuts as shown in Fig 14 .
    2. Disconnect each of the clamps and the connectors.
    3. Pull the instrument panel safety pad to the rear and check that none of the wire harness is stuck in the body.
       Fig 14: Removing Instrument Panel Safety Pad Sub-Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
38. REMOVE SPEAKER HOLE COVER NO.1 (W/ MARK LEVINSON SPEAKER SYSTEM)
    1. Disengage the 4 clips and remove the speaker hole cover No.1.
       Fig 15: Removing Speaker Hole Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
39. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.1
    1. Disengage the 2 clips and remove the instrument panel speaker panel sub-assy No.1.
       Fig 16: Removing Instrument Panel Speaker Panel Sub-Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
40. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.2
41. REMOVE FRONT NO.2 SPEAKER ASSY (W/ MARK LEVINSON SPEAKER SYSTEM) (See  REPLACEMENT  )
42. REMOVE FRONT NO.2 SPEAKER ASSY (See  REPLACEMENT  )
43. REMOVE FRONT NO.2 SPEAKER ASSY (See  REPLACEMENT  )
44. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.3
    1. Remove the screw < D > and the side defroster nozzle duct No.3.
       Fig 17: Removing Side Defroster Nozzle Duct No. 3

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
45. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.4

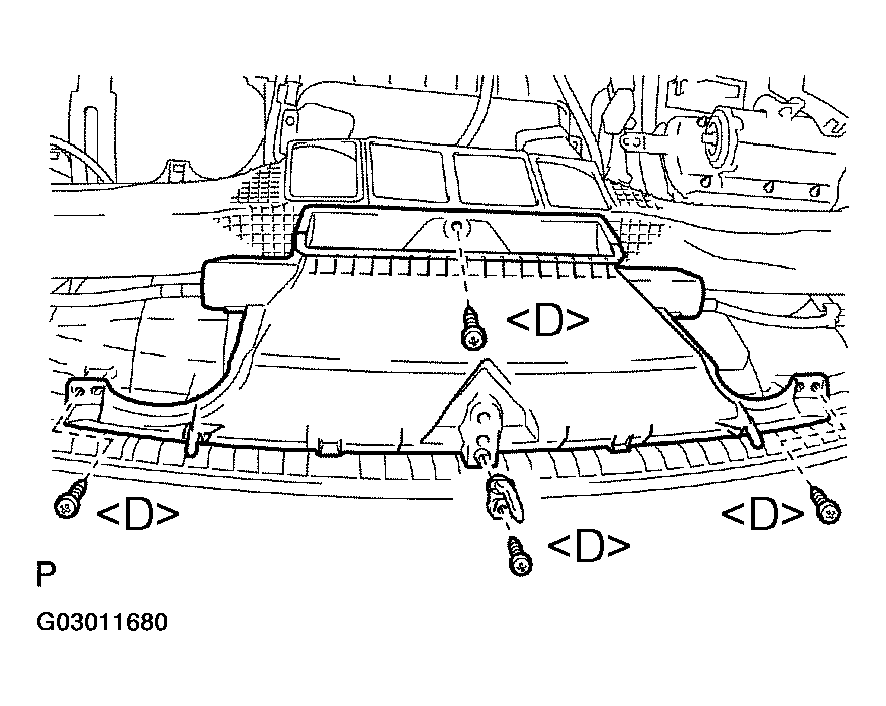

46. REMOVE DEFROSTER NOZZLE ASSY
    1. Remove the 4 screws < D > and the defroster nozzle assy.
       Fig 18: Removing Defroster Nozzle Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

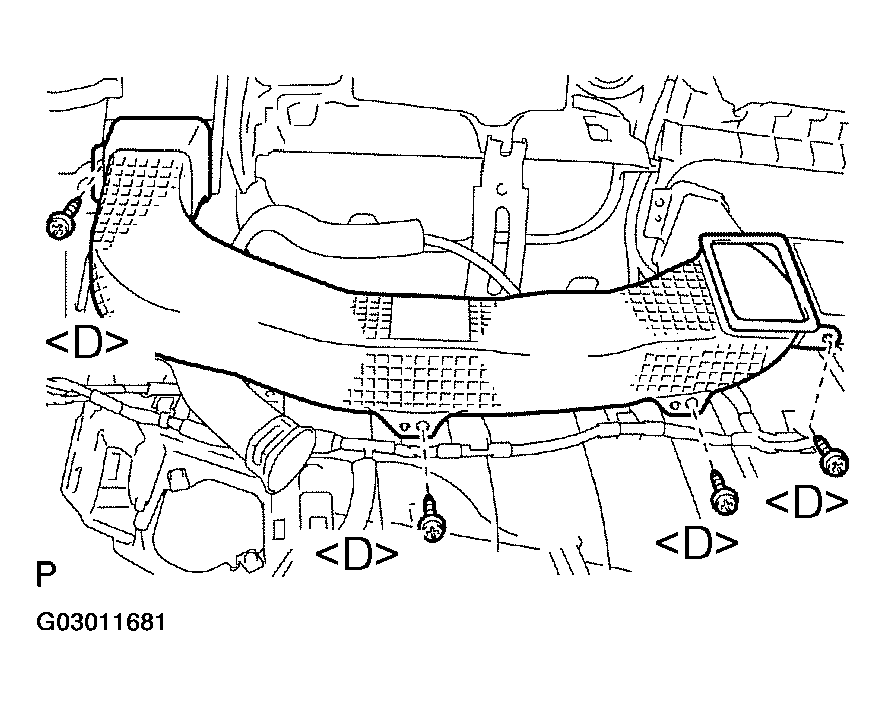

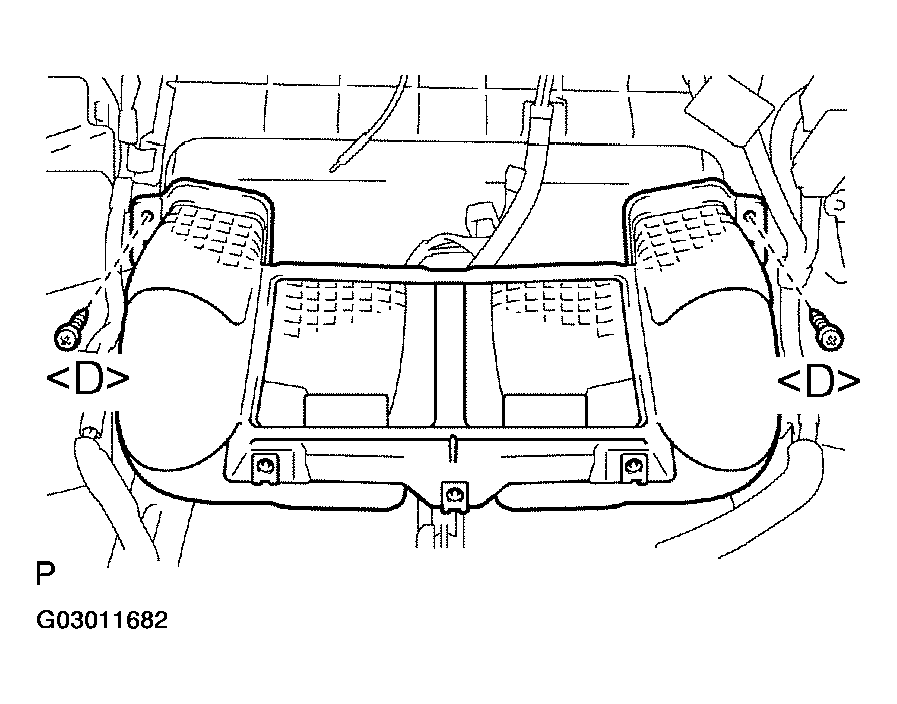

47. REMOVE HEATER TO REGISTER DUCT NO.1
    1. Remove the 4 screws < D > and the heater to register duct No.1.
       Fig 19: Removing Heater To Register Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
48. REMOVE HEATER TO REGISTER DUCT NO.4
49. REMOVE HEATER TO REGISTER CENTER SUB DUCT
    1. Remove the 2 screws < D > and the heater to register center sub duct.
       Fig 20: Removing Heater To Register Center Sub Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

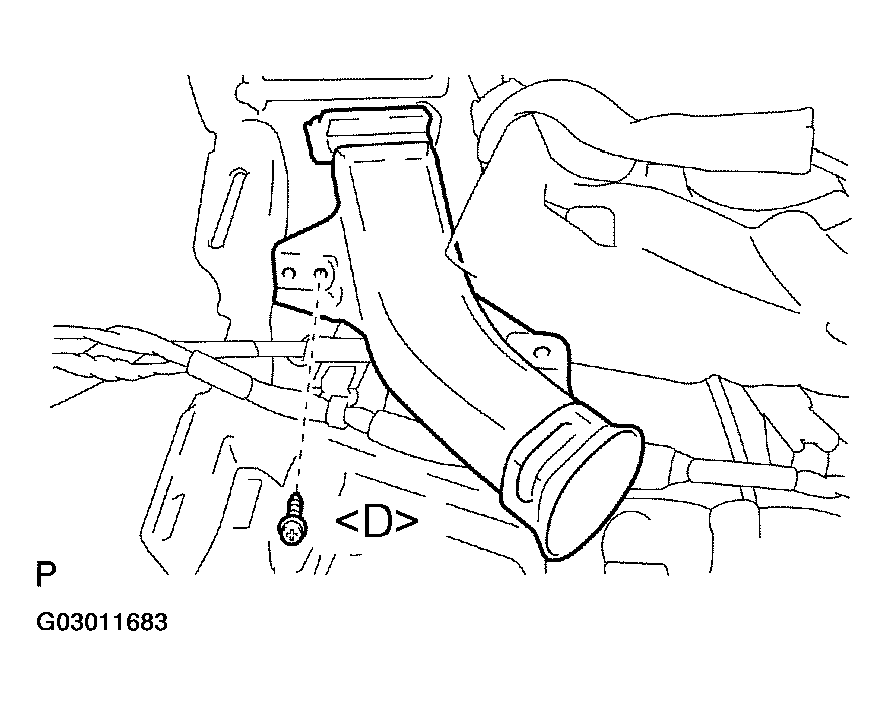

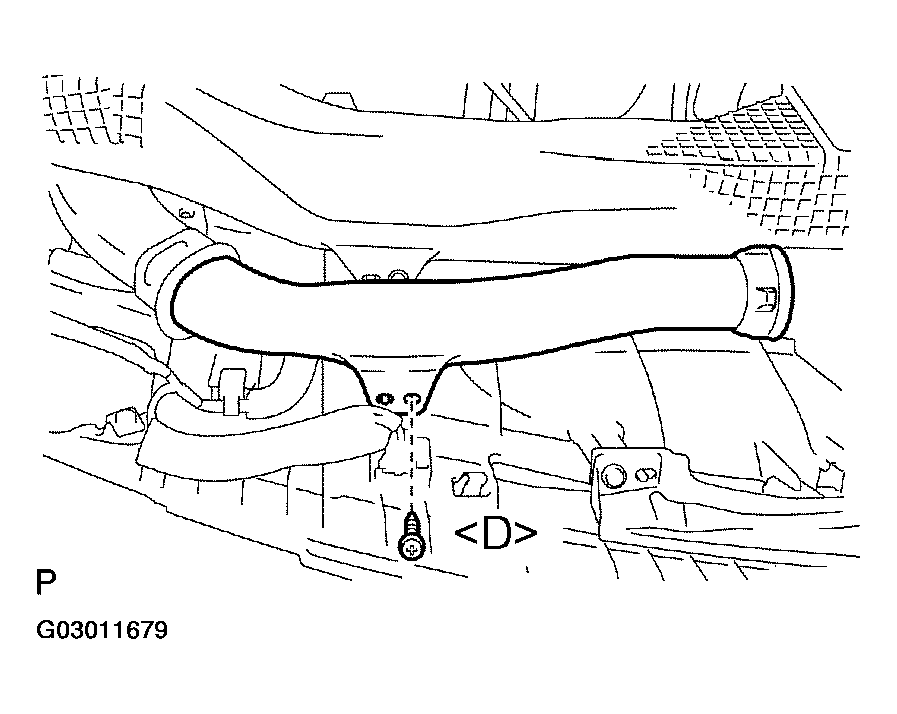

50. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.1
    1. Remove the screw < D > and the side defroster nozzle duct No.1.
       Fig 21: Removing Side Defroster Nozzle Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
51. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.2
52. REMOVE SIDE DEFROSTER NOZZLE NO.1
53. REMOVE SIDE DEFROSTER NOZZLE NO.2

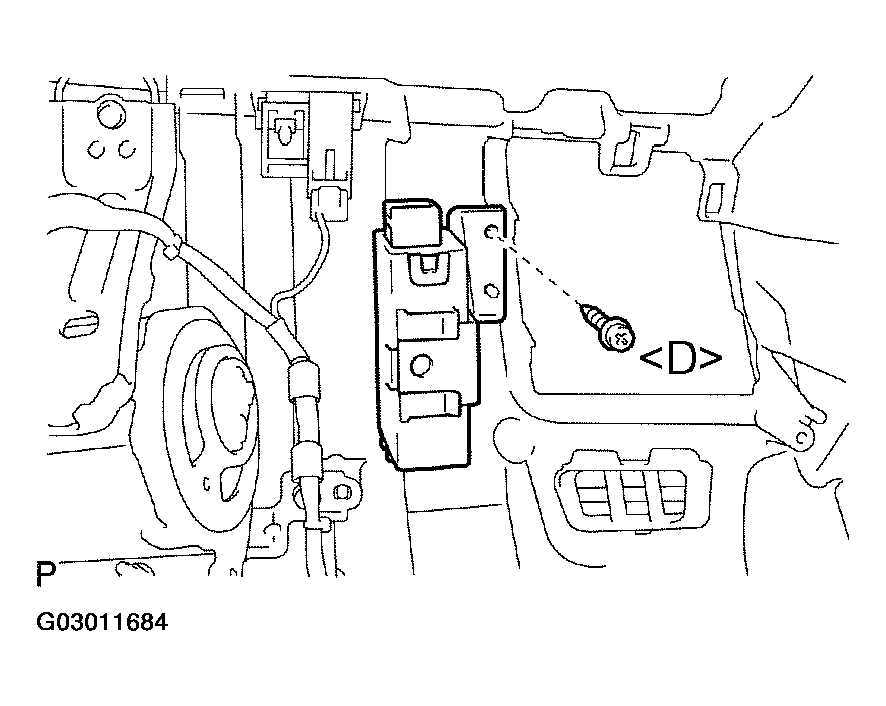

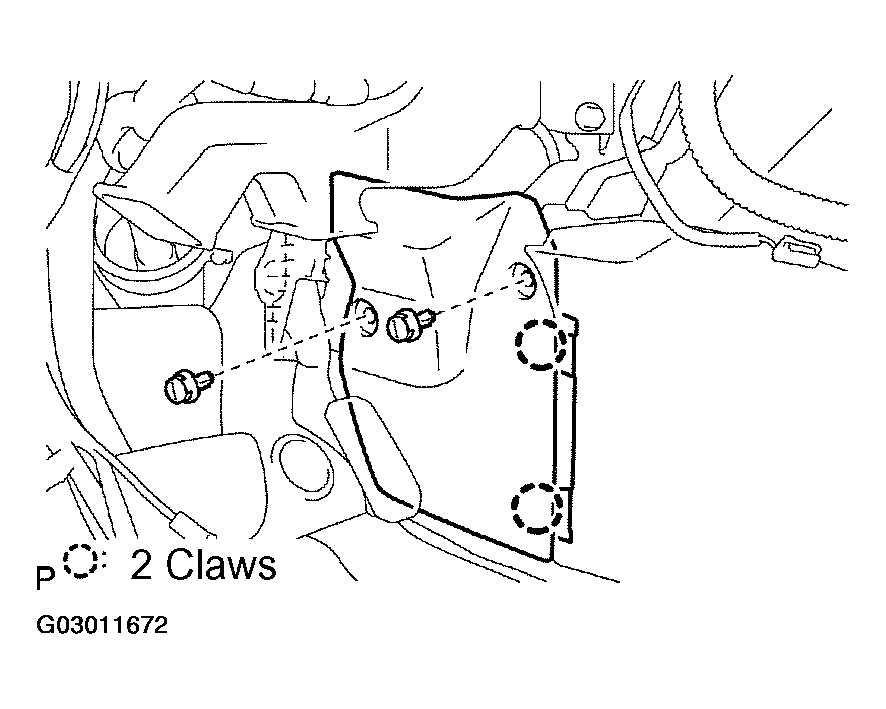

54. REMOVE NETWORK GATEWAY ECU (W/LEXUS NAVIGATION SYSTEM)
    1. Remove the screw < D > and the network gateway ECU.
       Fig 22: Removing Network Gateway ECU

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

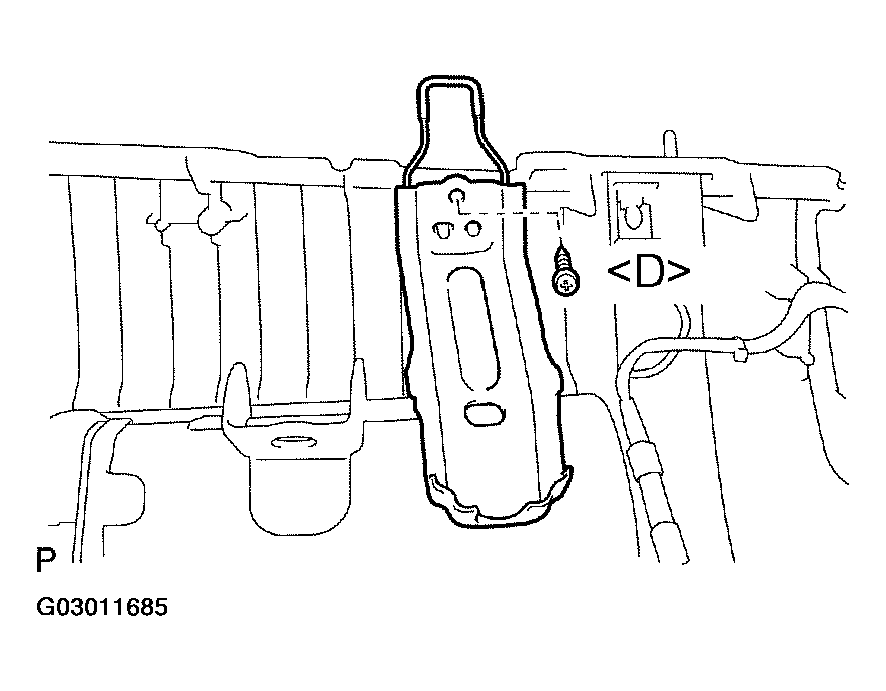

55. REMOVE INSTRUMENT PANEL BRACKET SUB-ASSY CENTER
    1. Remove the screw < D > and the instrument panel bracket sub-assy center.
       Fig 23: Removing Instrument Panel Bracket Sub-Assy Center

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
56. REMOVE GLOVE BOX LAMP ASSY
57. REMOVE NAVIGATION ANTENNA (W/ LEXUS LINK SYSTEM) (See  REPLACEMENT  )
58. REMOVE ANTENNA CORD SUB-ASSY (See  REPLACEMENT  )

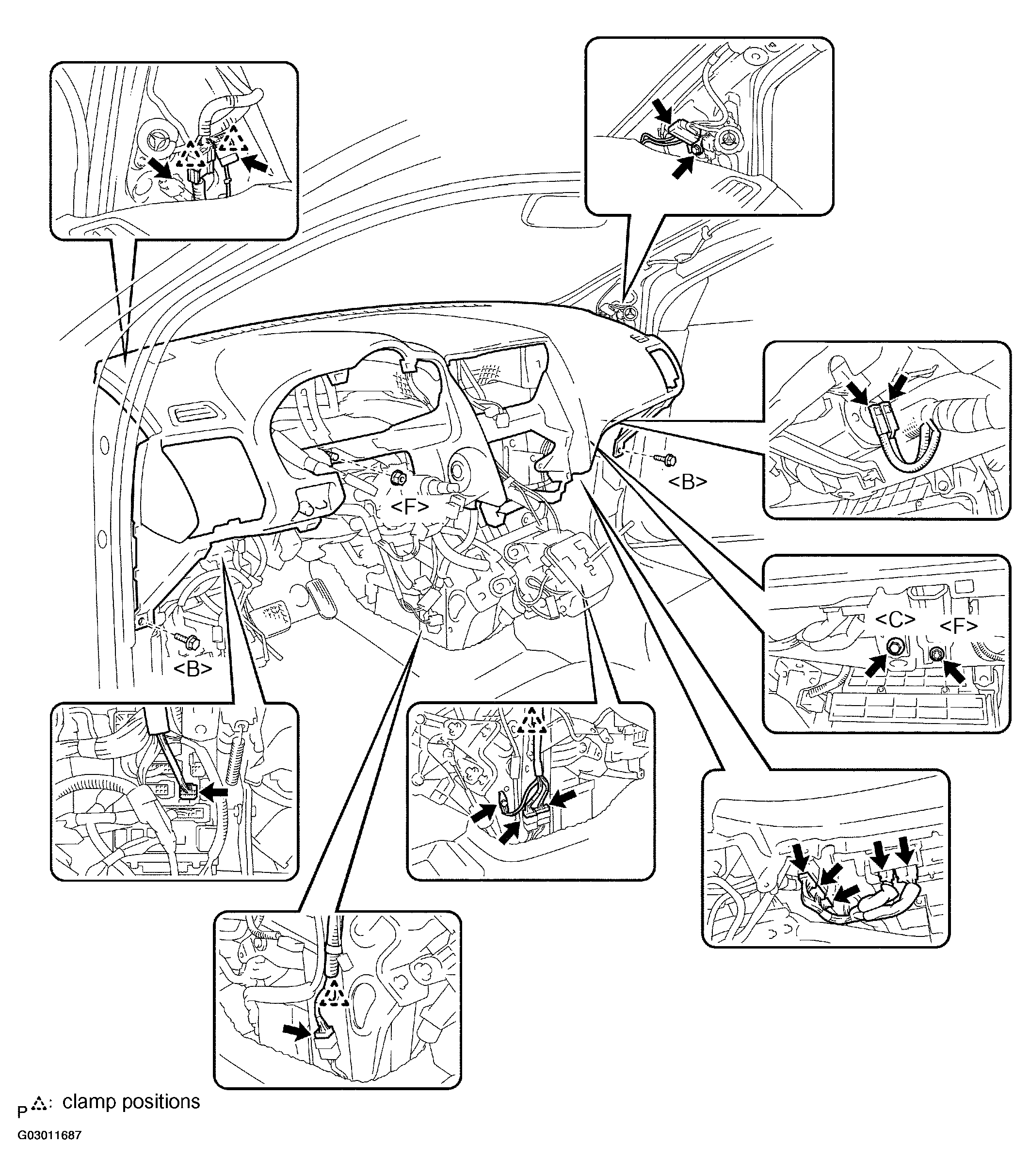

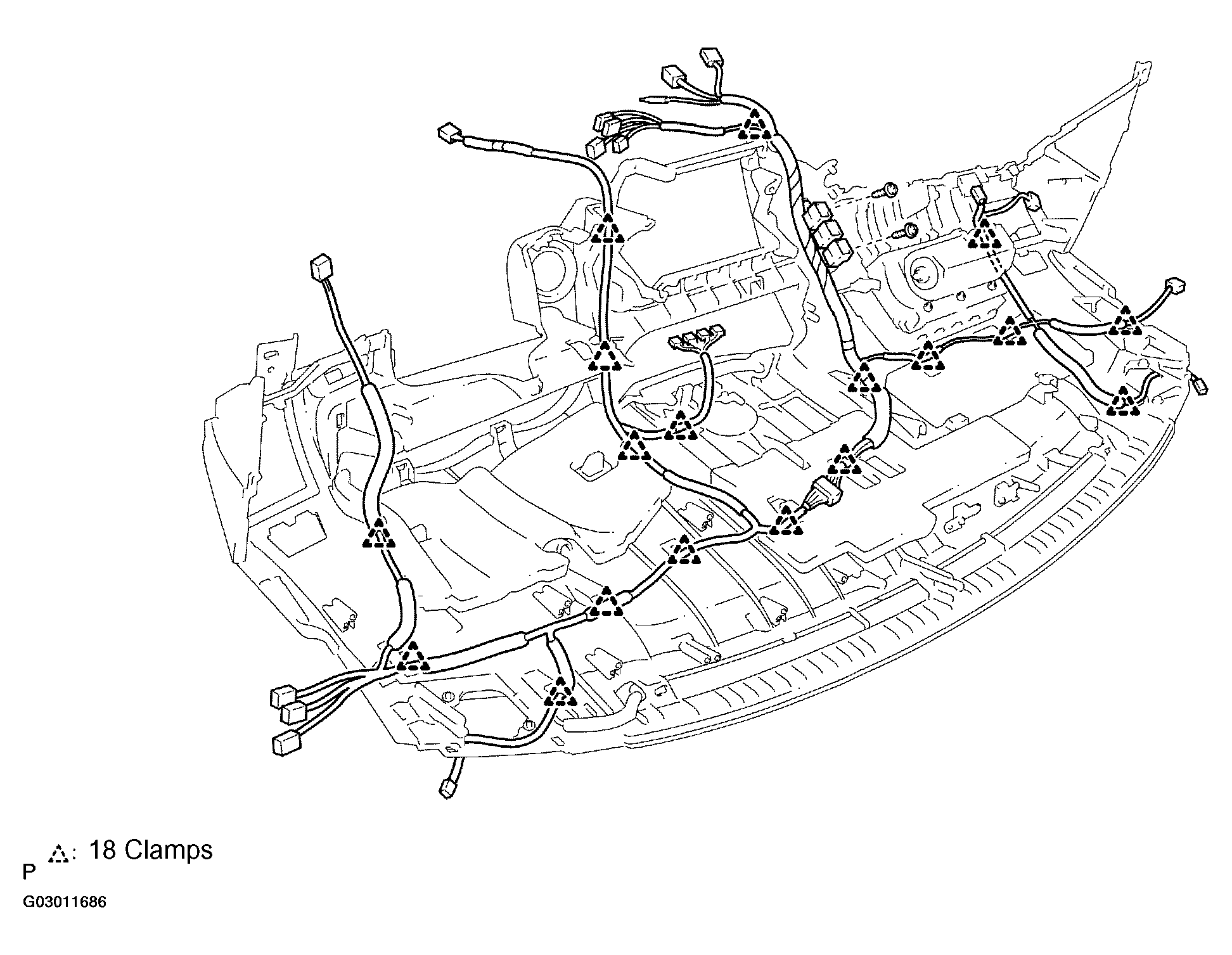

59. REMOVE INSTRUMENT PANEL WIRE NO.2
    1. Remove the 2 screws.
    2. Release the 18 clamps and remove the instrument panel wire No.2.
       Fig 24: Removing Instrument Panel Wire

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
60. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
61. REMOVE DEFROSTER NOZZLE GARNISH NO.1
62. REMOVE INSTR PNL PASS L/DOOR AIR BAG ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
63. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
64. INSTALL INSTR PNL PASS L/DOOR AIR BAG ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
65. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
    1. Using a torque wrench, install the bolt < C >.

       Torque: 20 N.m (204 kgf.cm, 14 ft.lbf)

    2. Install the instrument panel safety pad sub-assy with the bolts and nuts.
       Fig 25: Installing Instrument Panel Safety Pad Sub-Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
66. ADJUST SPIRAL CABLE SUB-ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
67. INSTALL STEERING WHEEL ASSY

    (MANUAL TILT: See  OVERHAUL  )

    (POWER TILT & TELESCOPIC: See  OVERHAUL  )

68. INSTALL HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
69. INSPECT HORN BUTTON ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
70. INSPECT SRS WARNING LIGHT (See  AIR BAG RESTRAINT SYSTEMS  )
