Starting System (3MZ-FE): Inspection

  1. INSPECT STARTER ASSY
    NOTE: These tests must be performed within 3 to 5 seconds to avoid burning out the coil.
    1. Do pull-in test

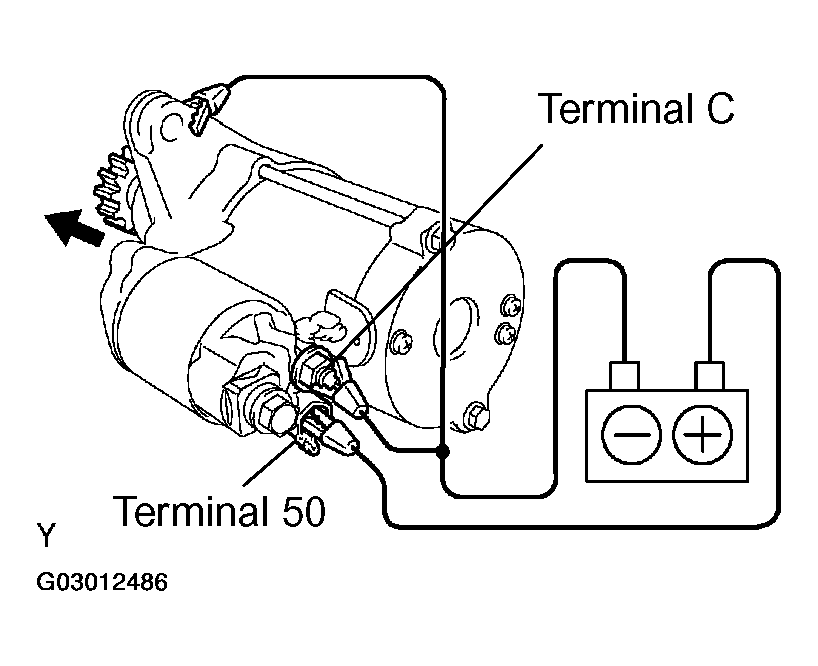

      Fig 1: Inspecting Starter Assy (Pull In Test)
      G03012486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the field coil lead wire from terminal C.
      2. Connect the battery to the magnetic switch as shown in Fig 1 . Check that the clutch pinion gear is extended.

        If the clutch pinion gear does not move, replace the magnetic switch.

    2. Do hold-in test

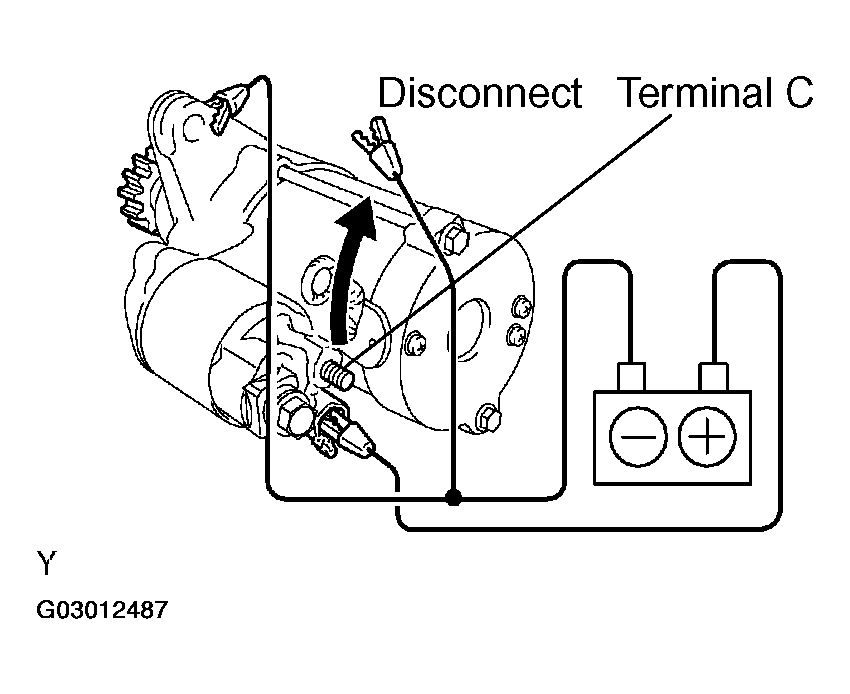

      Fig 2: Inspecting Starter Assy (Hold in Test)
      G03012487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the negative (-) lead from terminal C with the above condition (a) is being maintained.

        Check that the pinion gear remains extended.

        If the clutch pinion gear returns inward, replace the magnetic switch.

    3. Inspect clutch pinion gear return
      Fig 3: Inspecting Clutch Pinion Gear Return
      G03012488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the negative (-) lead from the switch body. Check that the clutch pinion gear returns.

        If the clutch pinion gear does not return, replace the magnetic switch.

    4. Do no-load performance test

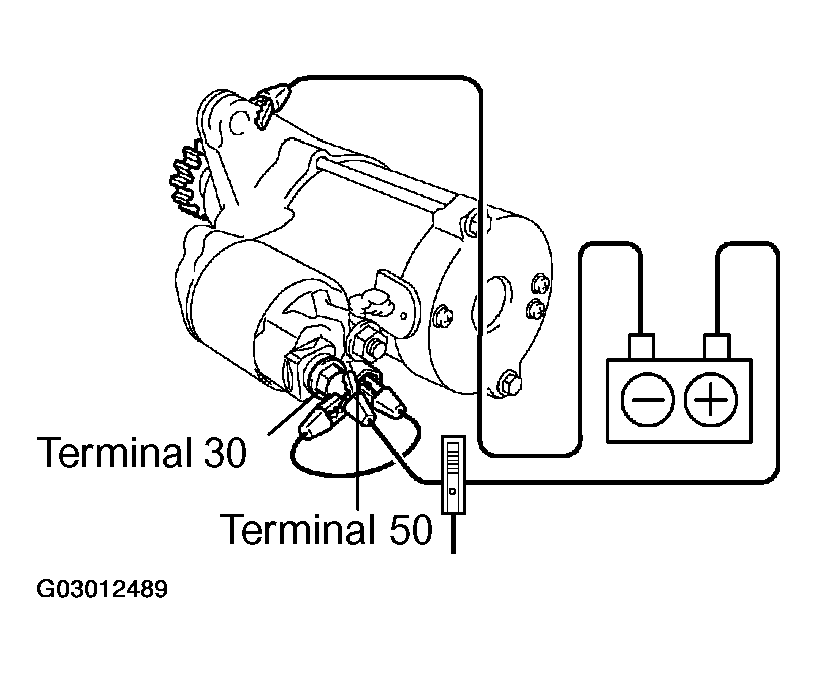

      Fig 4: Performing Starter Assy Operation Test Without Load
      G03012489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the field coil lead wire to terminal C. Make sure that the lead is not grounded.
      2. Clamp the starter in a vise.
      3. Connect the battery and an ammeter to the starter as shown in Fig 4 .
      4. Check that the starter rotates smoothly and steadily with the clutch pinion gear extended. Check that the ammeter reads the specified current.

        Specified current: 90 A or less at 11.5 V

  2. INSPECT STARTER RELAY ASSY
    1. Continuity inspection.
      1. Using an ohmmeter, check for continuity between the terminals.
        Fig 5: Identifying Starter Relay Assy Terminals
        G03012490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Specified condition:

        STARTER RELAY ASSY SPECIFIED CONDITION

        Terminals Specified condition
        1 - 2 Continuity
        3 - 5 No continuity
        3 - 5 Continuity (Apply battery voltage terminals 1 and 2)
