Generator ASSY (3MZ-FE): Replacement

REMOVE GENERATOR ASSY

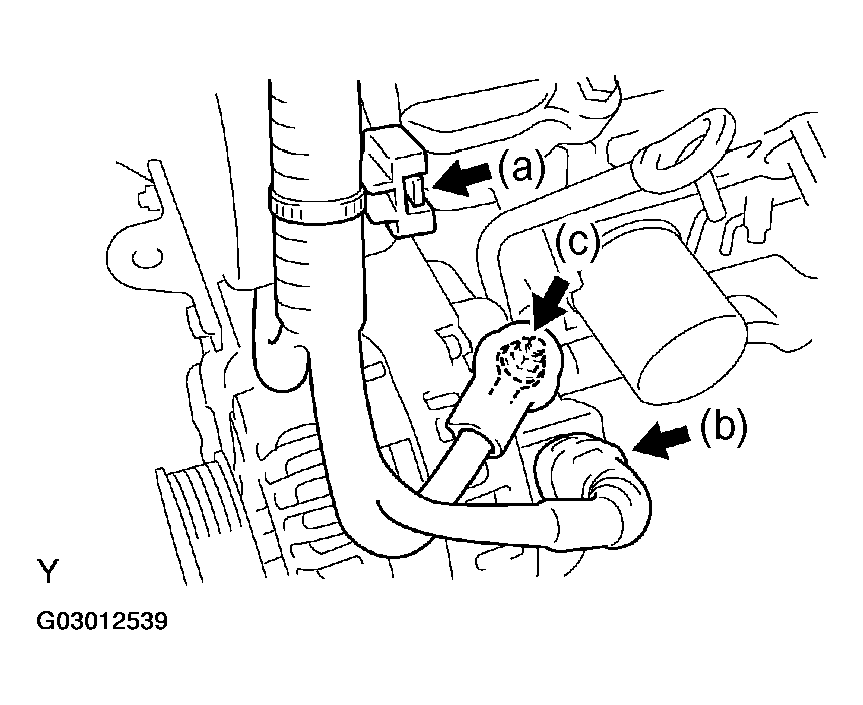

1. Remove the wire harness clamp.
2. Disconnect the generator connector.
3. Open the terminal cap, remove the nut and disconnect the generator wire.
4. Loosen bolts A and B.
5. Loosen bolt C to lessen the tension of the V belt No.1.

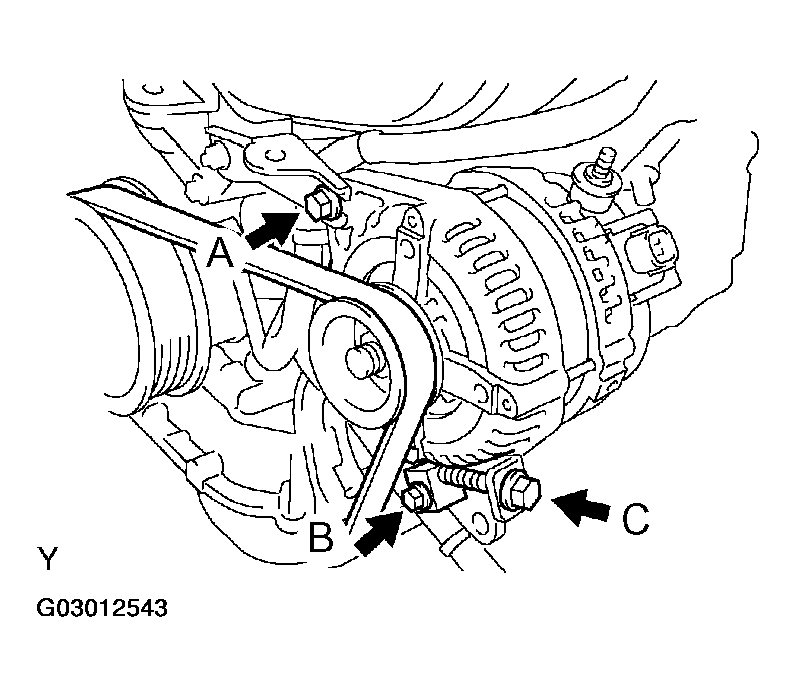

  Fig 2: Removing Generator Assy Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove bolts A and B, and then remove the generator.

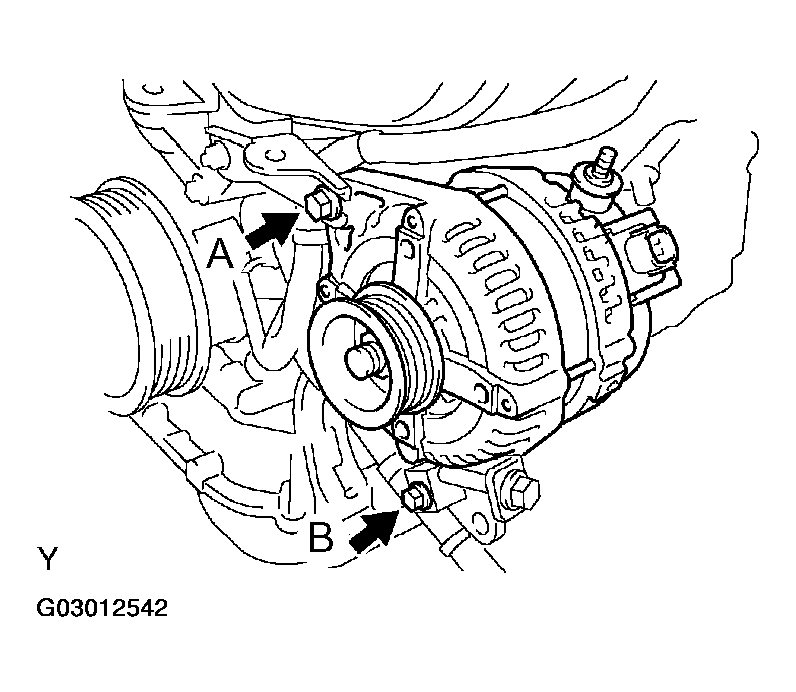

  Fig 3: Removing Generator Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GENERATOR ASSY
1. Temporarily install the generator with bolts A and B.

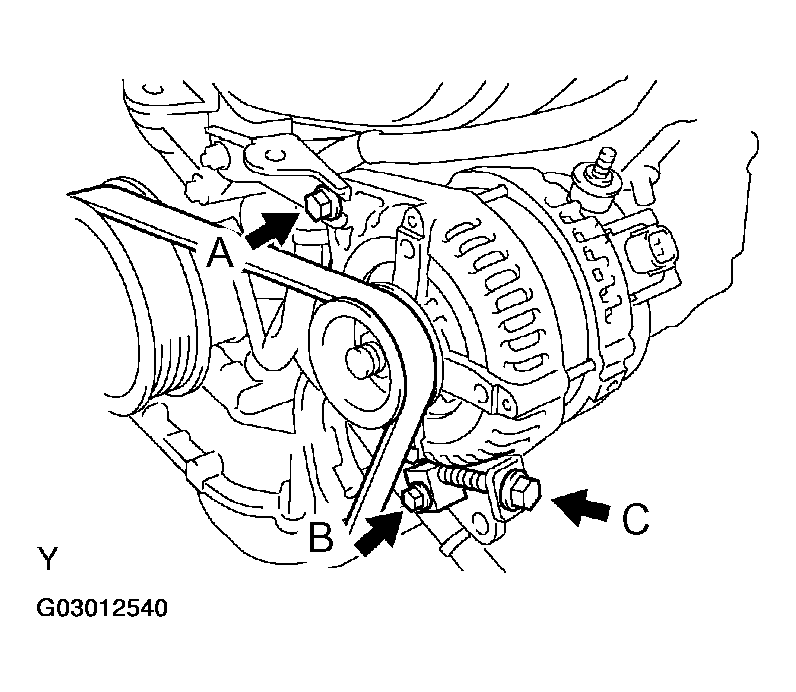

  Fig 4: Installing Generator Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the V belt No. 1 tension by tightening bolt C.

  Fig 5: Adjusting V Belt Tension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  (See INSPECTION )
3. Tighten bolts A and B
  Torque:

  58 N.m (592 kgf.cm, 43 ft.lbf) for bolt A

  18 N.m (184 kgf.cm, ft.lbf) for bolt B
4. Install the generator wire with the nut.
  Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)
5. Connect the generator connector.
6. Install the wire harness clamp.
INSPECT DRIVE BELT (See INSPECTION )
