Auto Up/Down Function Does Not Operate On Passenger Side: Wiring Diagram

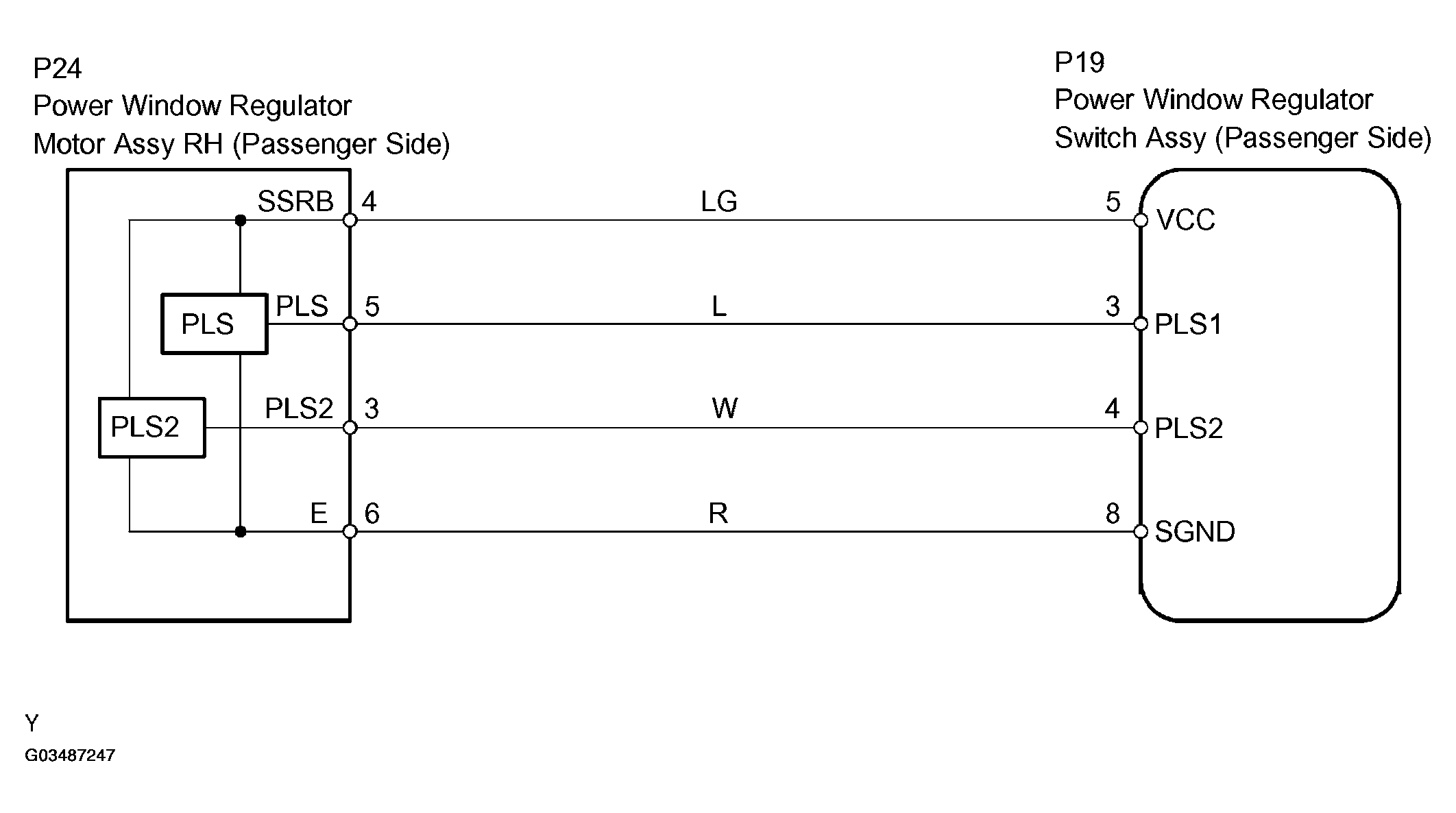

Fig 1: Wiring Diagram - Auto UP/DOWN Function Not Operate On Passenger Side

G03487247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
