Auto Up/Down Function Does Not Operate At Rear LH: Wiring Diagram

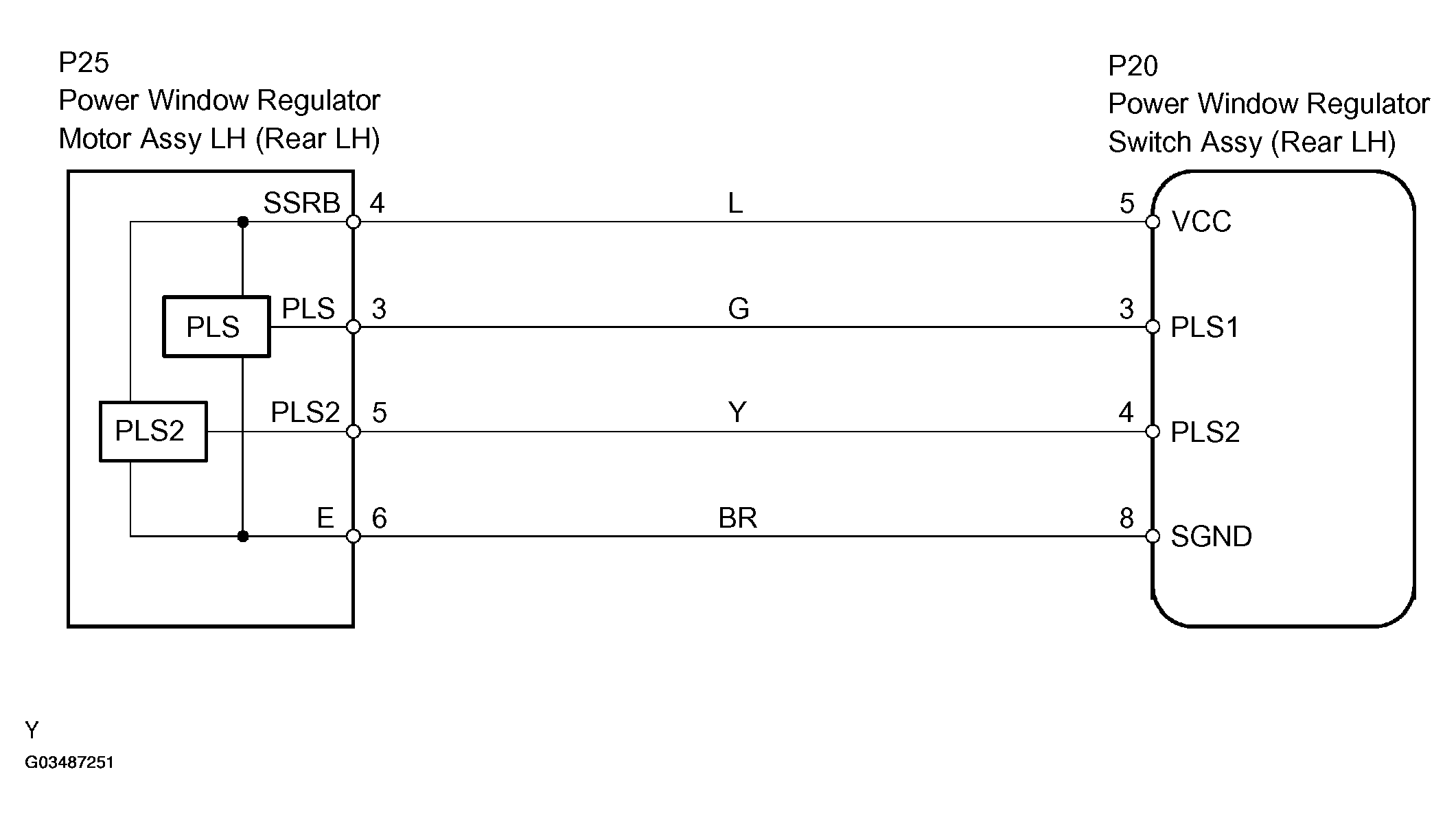

Fig 1: Wiring Diagram - Auto UP/DOWN Function Not Operate At Rear LH

G03487251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
