Torque Specification

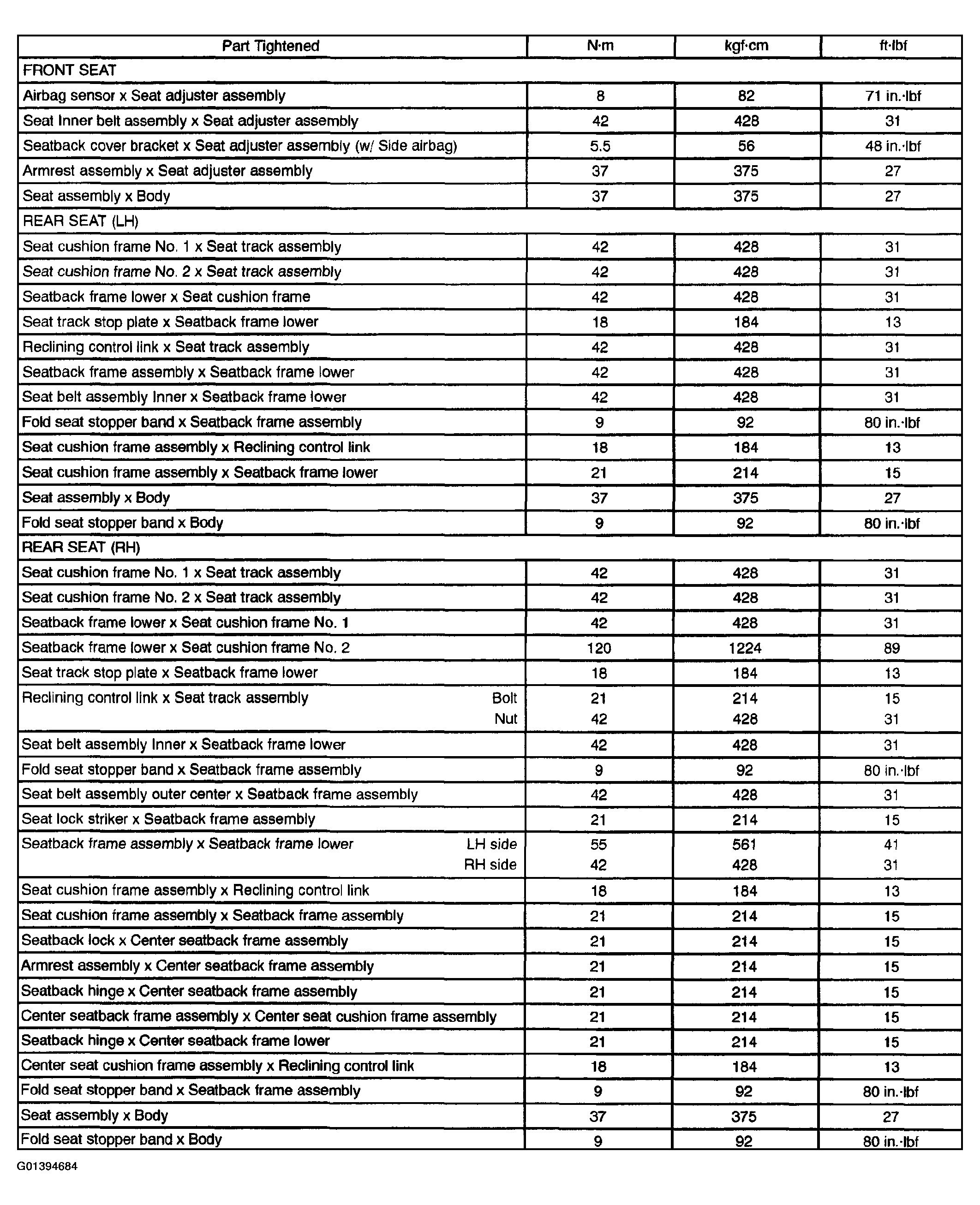

Fig 1: Seat Torque Specification Table

G01394684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
