Power Back Door: Components

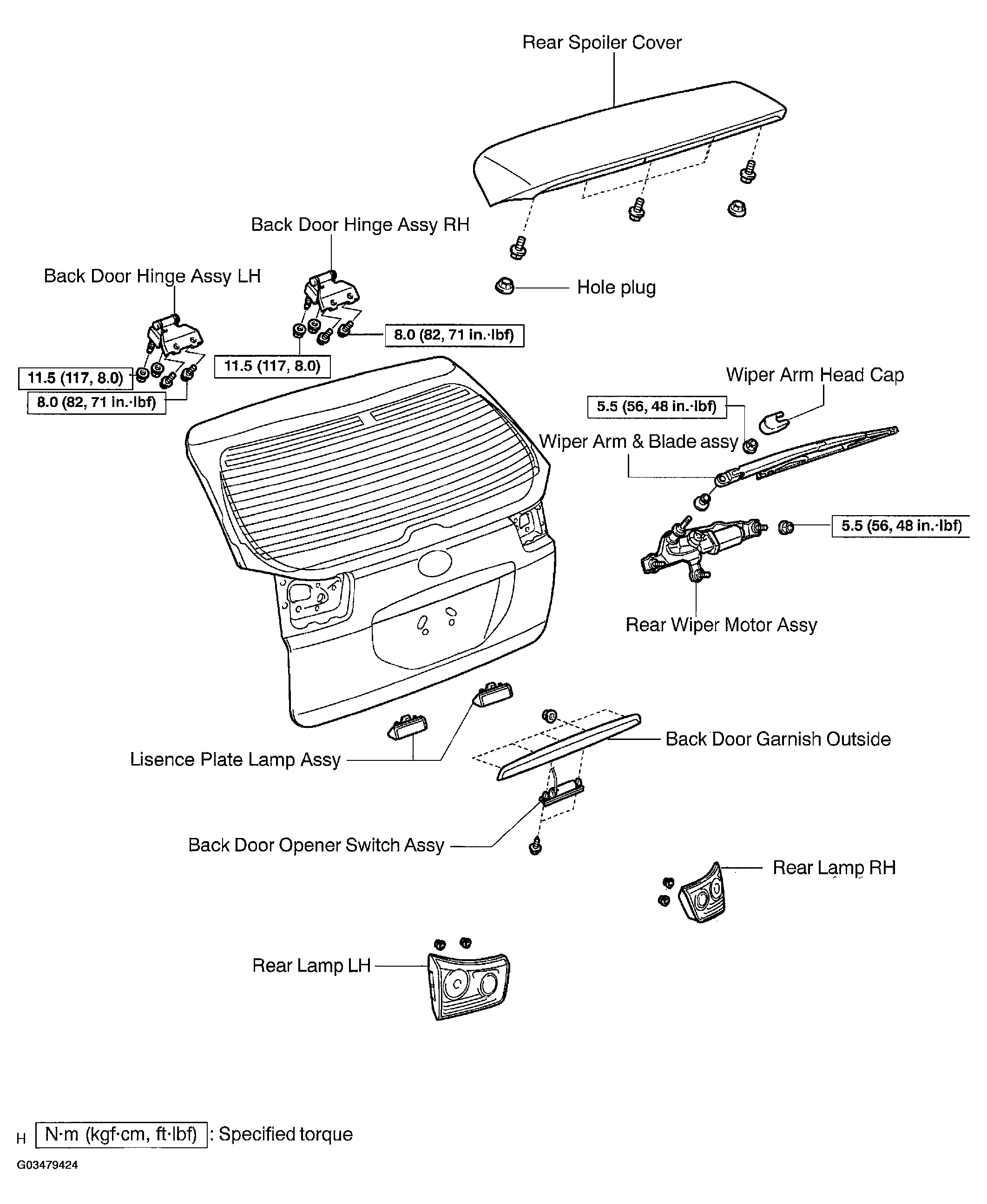

Fig 1: Exploded View Of Power Back Door Components (1 Of 3)
G03479424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

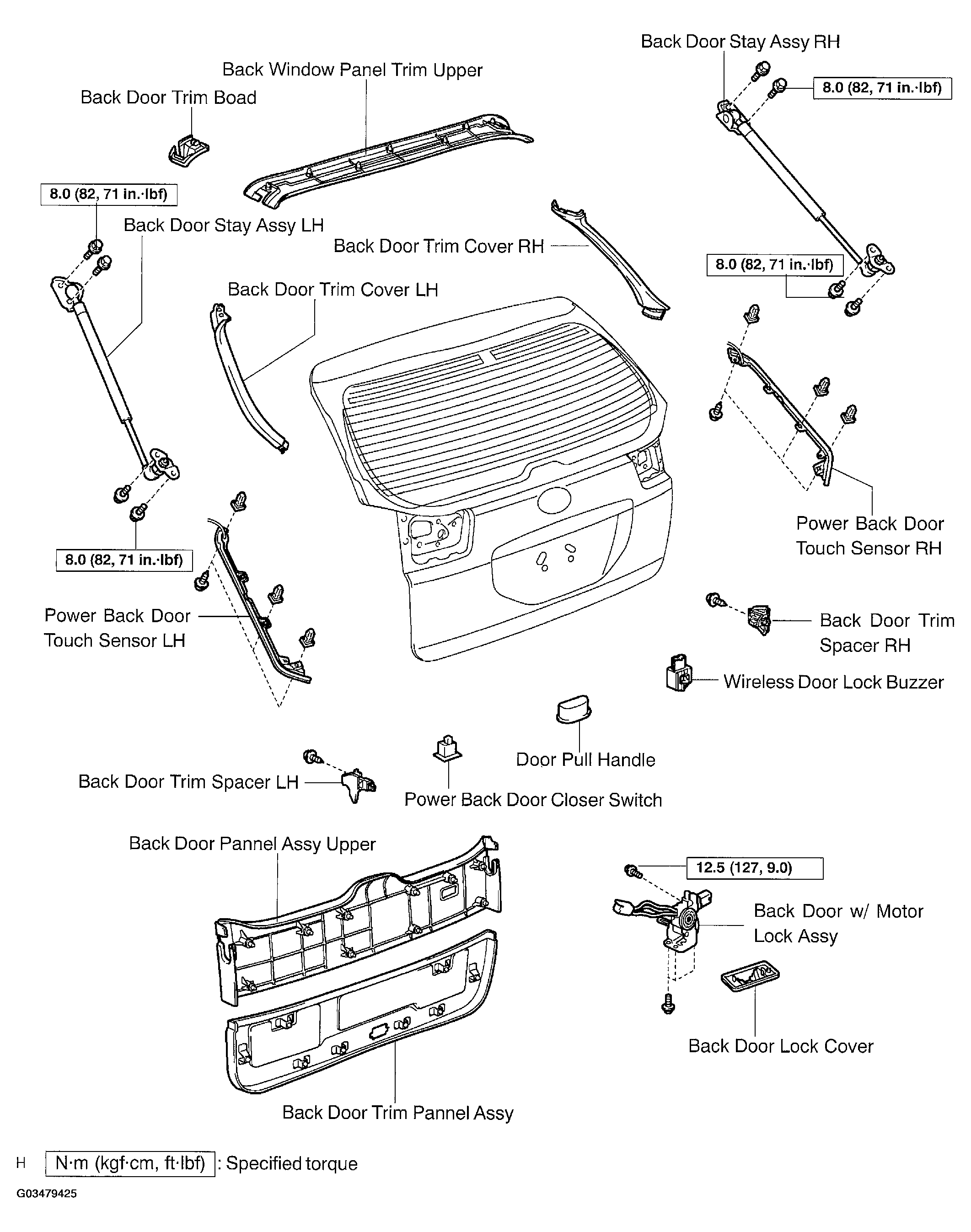

Fig 2: Exploded View Of Power Back Door Components (2 Of 3)
G03479425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

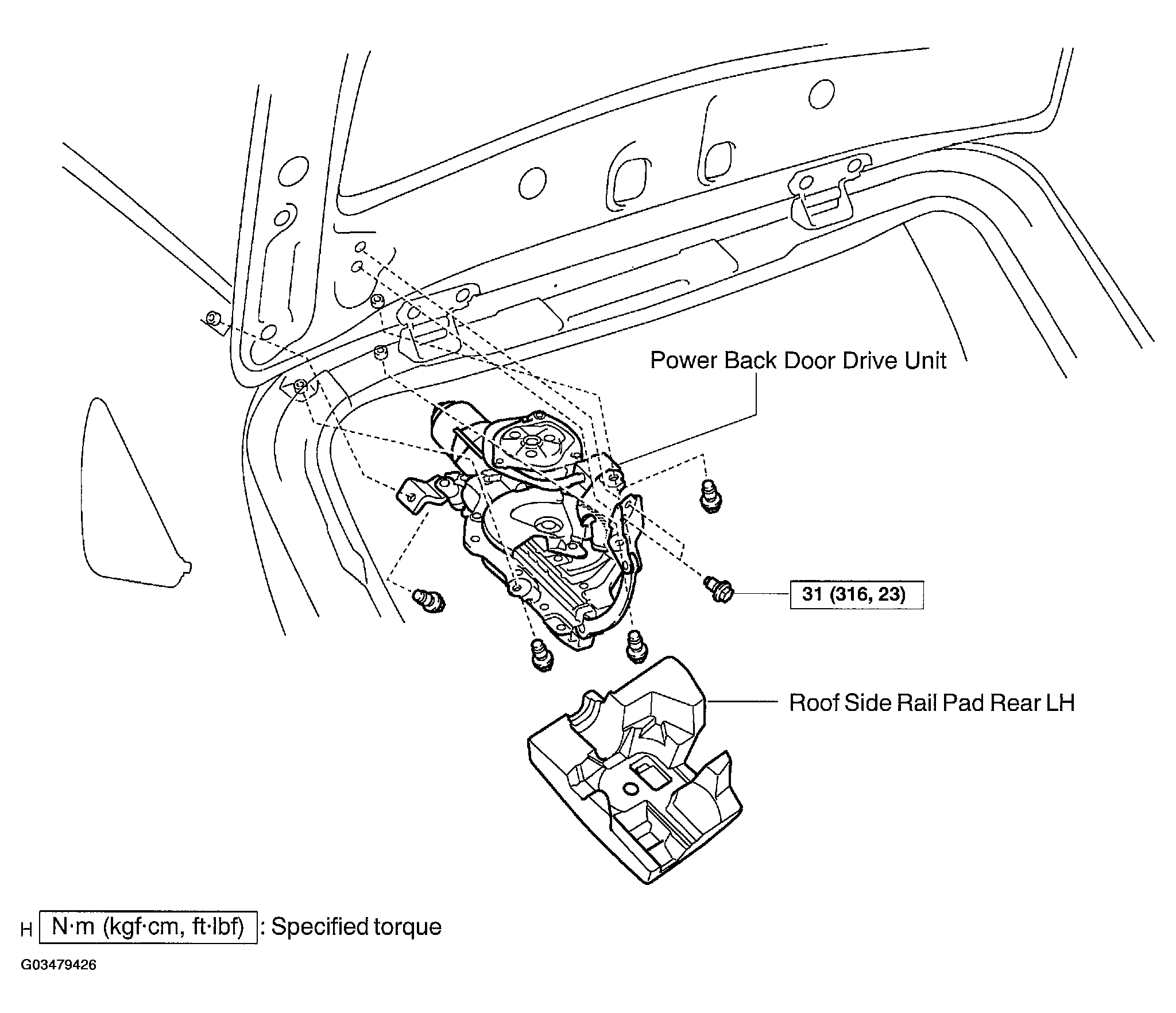

Fig 3: Exploded View Of Power Back Door Components (3 Of 3)
G03479426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
