Power Back Door: Adjustment

HINT:

• Use the same procedures on the RH side as on the LH side.
• Since a centering bolt is used as a door hinge mounting bolt on the body side and the door side, the door can not be adjusted with them on. Substitute a bolt with a washer for the centering bolt.

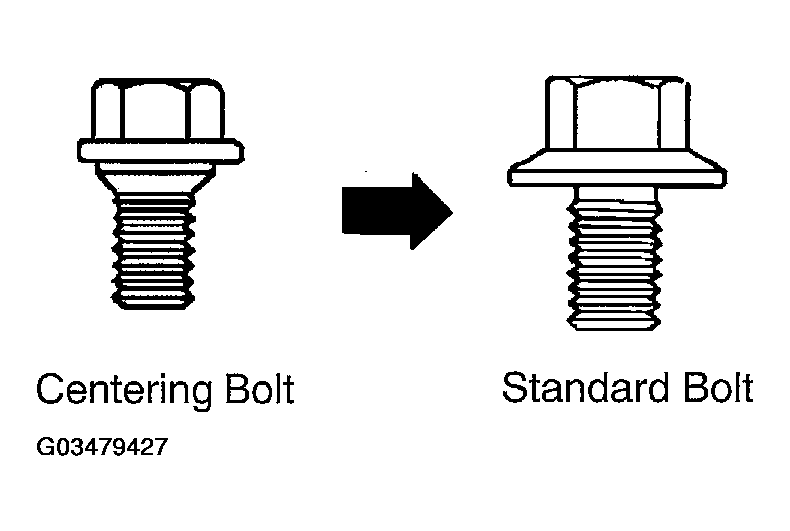

  Fig 1: Identifying Standard Bolt & Centering Bolt

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSPECT BACK DOOR PANEL SUB-ASSY
   1. Check that the clearance is within the standard range.

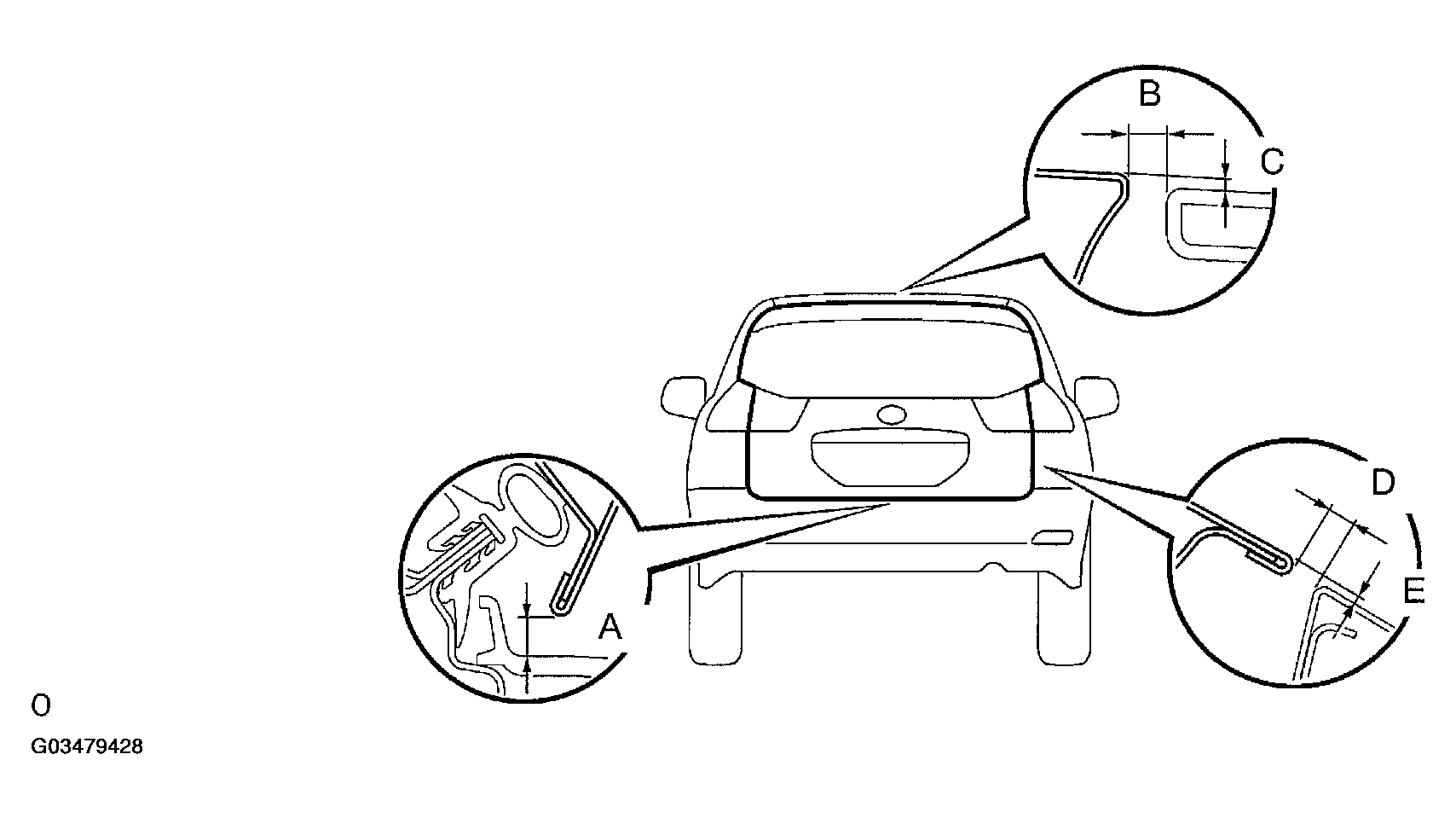

      Fig 2: Checking Back Door Panel Clearance Sub-Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard range:

   CLEARANCE STANDARD RANGE



   A	6.5 +/- 2.0 mm (0.256 +/- 0.078 in.)
   B	8.1 +/- 2.0 mm (0.319 +/- 0.078 in.)
   C	1.0 +/- 2.0 mm (0.394 +/- 0.078 in.)
   D	5.5 +/- 1.5 mm (0.217 +/- 0.059 in.)
   E	0 +/- 1.5 mm (0 +/- 0.059 in.)

2. ADJUST BACK DOOR PANEL SUB-ASSY
   1. Remove roof headlining (See ROOF HEADLINING ASSY ).
   2. Adjust the door horizontally and forward/rearward by loosening the body side hinge nuts.
   3. Tighten the body side hinge nuts after the adjustment.

      Torque: 11.5 N.m (117 kgf.cm, 8 ft.lbf)

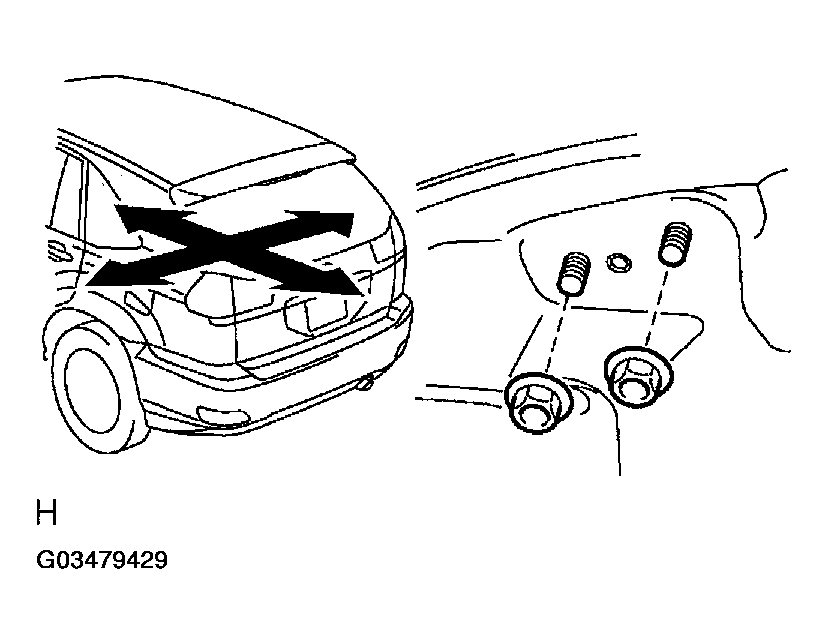

      Fig 3: Adjusting The Door Horizontally And Forward/Rearward

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Horizontally and vertically adjust the back door by loosening the back door side hinge bolts.
   5. Tighten the back door side hinge bolts after the adjustment.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

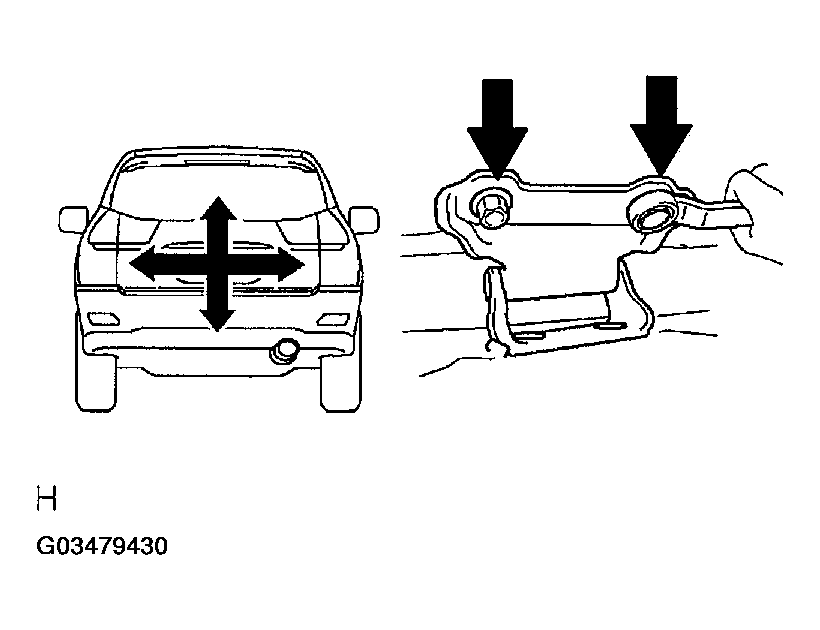

      Fig 4: Adjusting The Door Horizontally And Vertically

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
   7. Tighten the striker mounting screws after the adjustment.

   Torque: 23.0 N.m (235 kgf.cm, 17 ft.lbf)

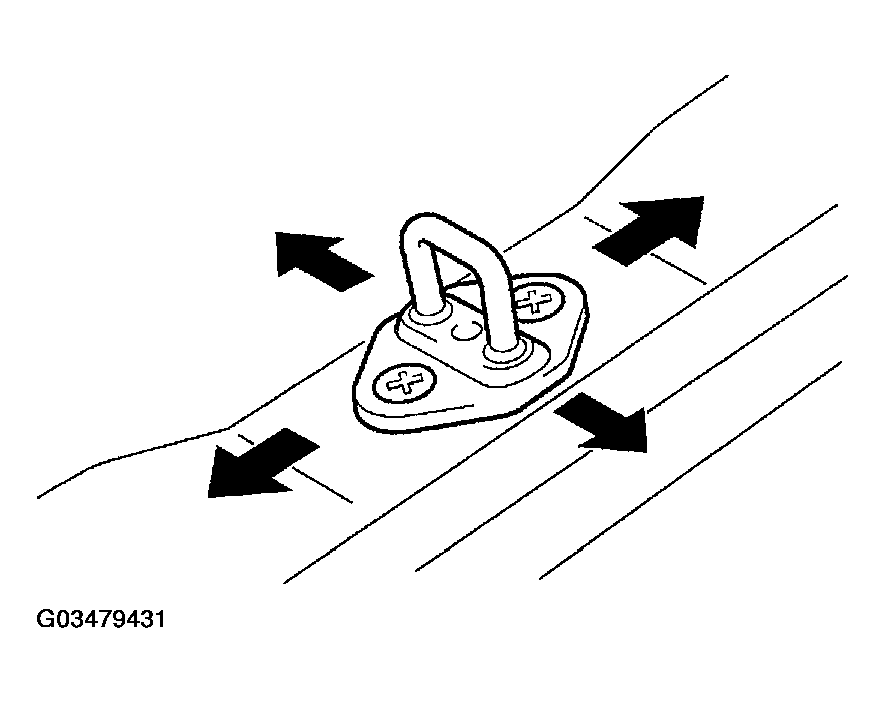

   Fig 5: Adjusting Striker Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
