Home >> Lexus >> 2004 >> RX 330 AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Back Door System >> Location

Power Back Door System: Location

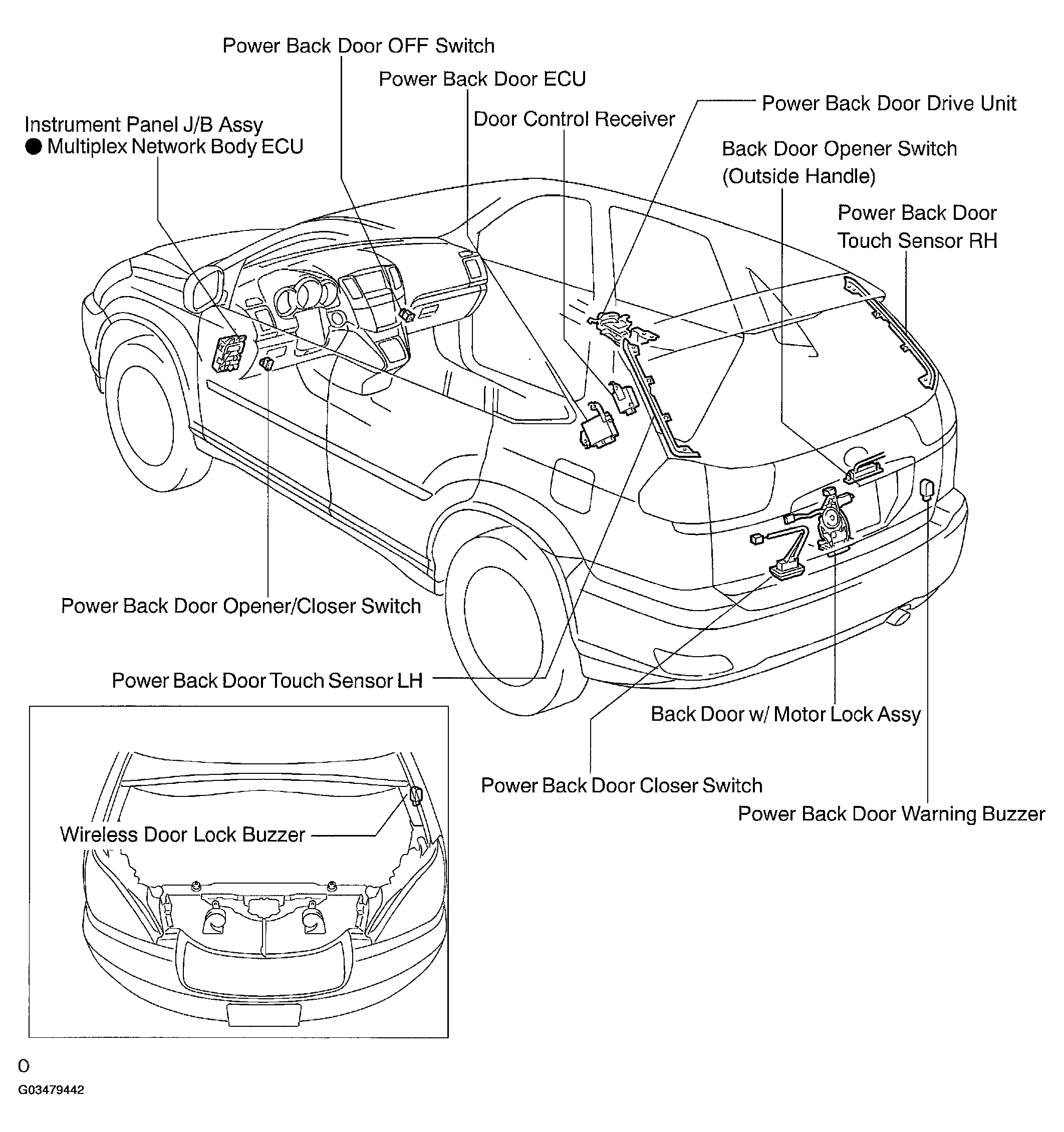

Fig 1: Locating Power Back Door System Components

G03479442

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
