Home >> Lexus >> 2004 >> RX 330 AWD >> Repair and Diagnosis (Single Page) >> Transmission >> Transfer Case >> Transfer System >> Transfer (4WD) >> Components

Transfer (4WD): Components

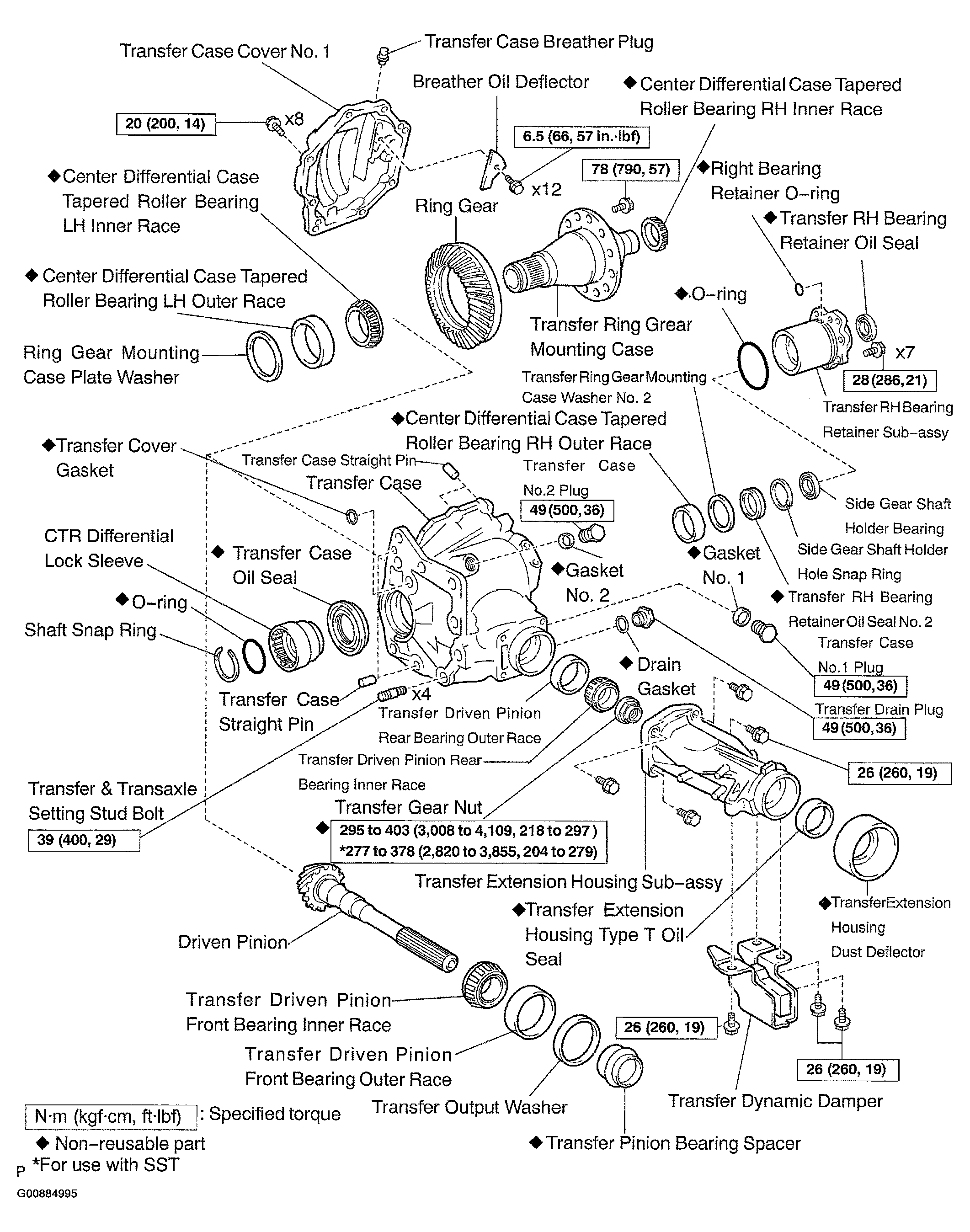

Fig 1: Exploded View Of Transfer Components

G00884995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
