Home >> Lexus >> 2004 >> RX 330 AWD >> Repair and Diagnosis (Single Page) >> Suspension >> Electronic Suspension >> Suspension Control System >> Height Control Compressor ASSY >> Components

Height Control Compressor ASSY: Components

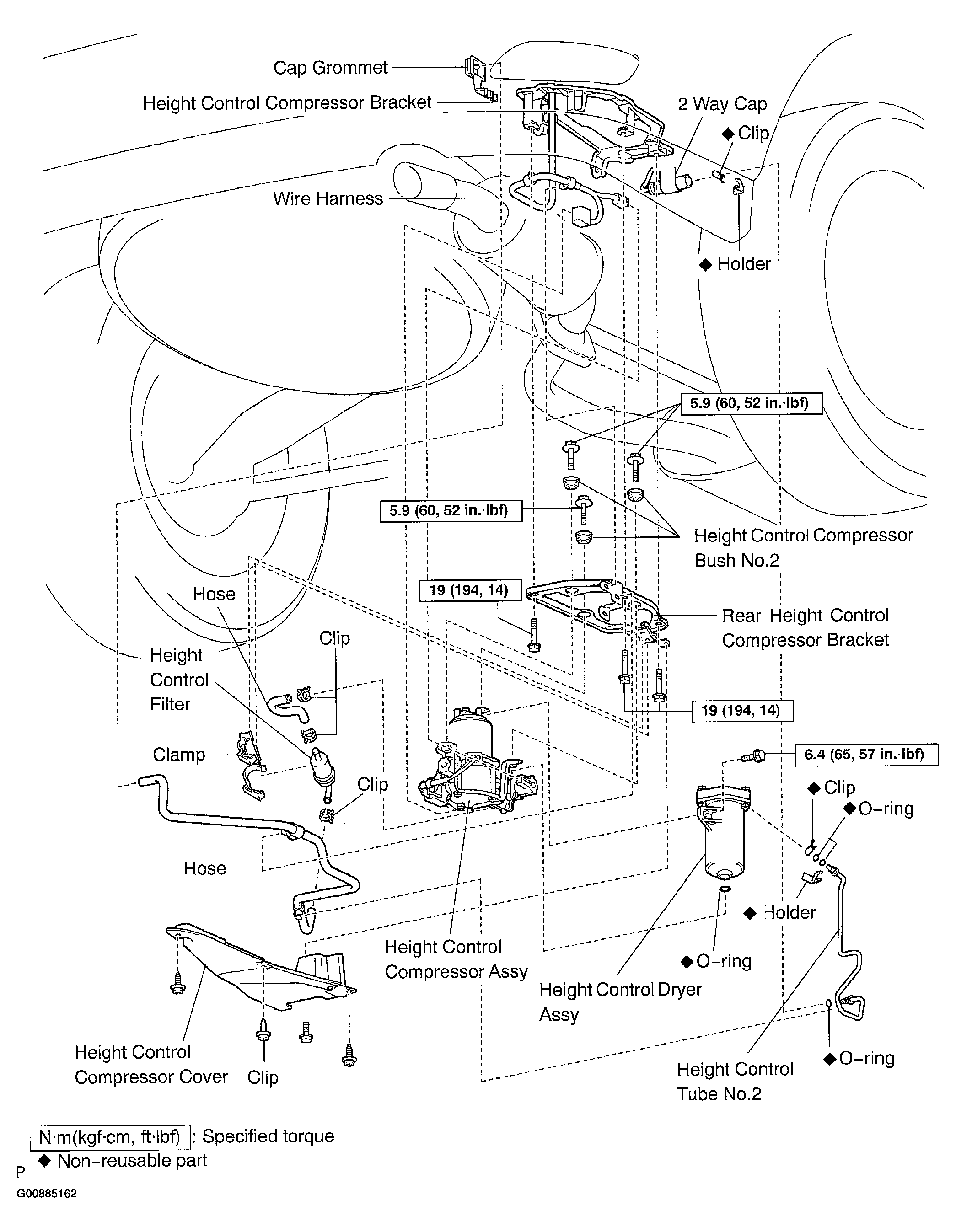

Fig 1: Exploded View Of Height Control Compressor Assy

G00885162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
