Fuel Lid Lock Control: Components

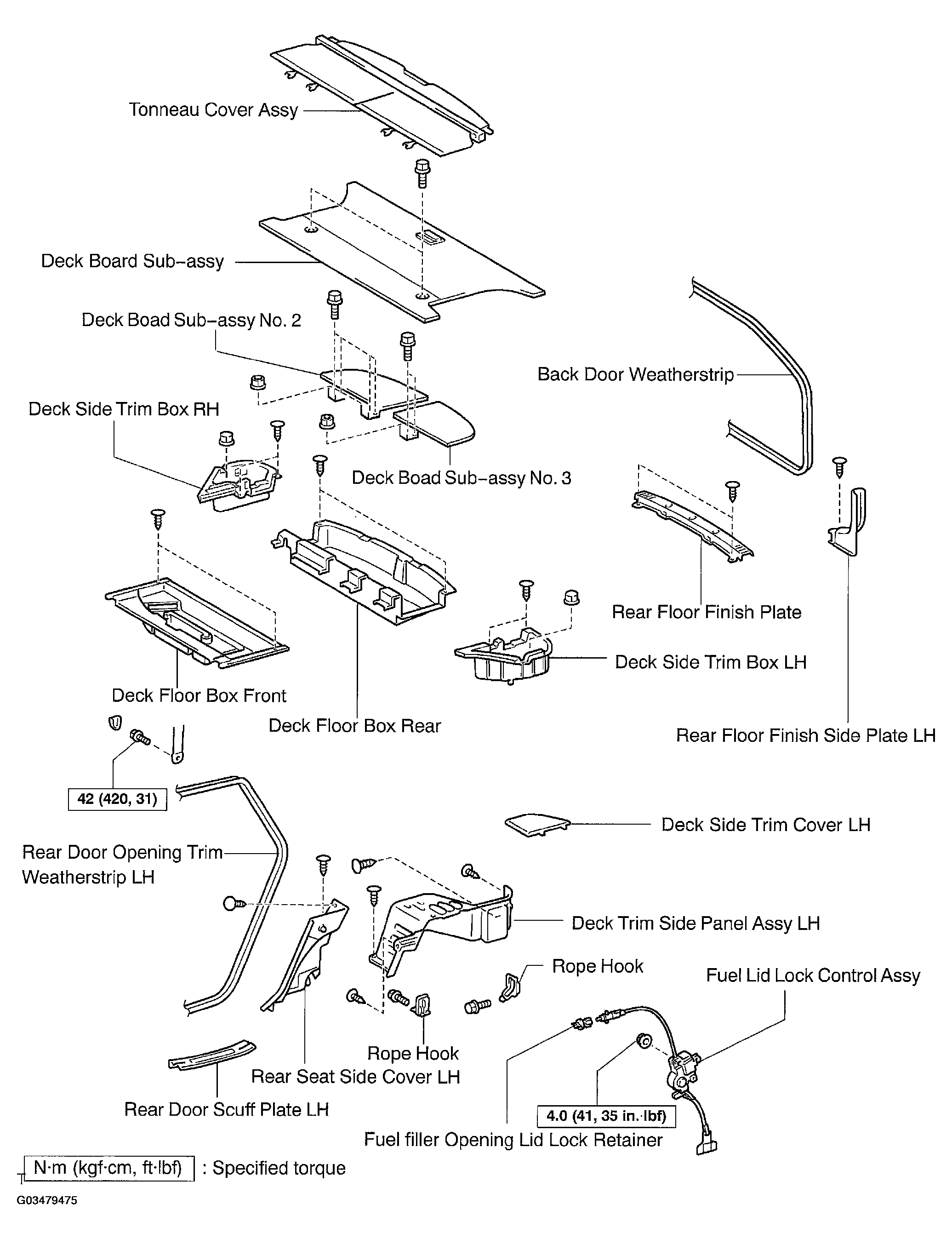

Fig 1: Identifying Fuel Lid Lock Control Assembly Components

G03479475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
