Terminals Of ECM

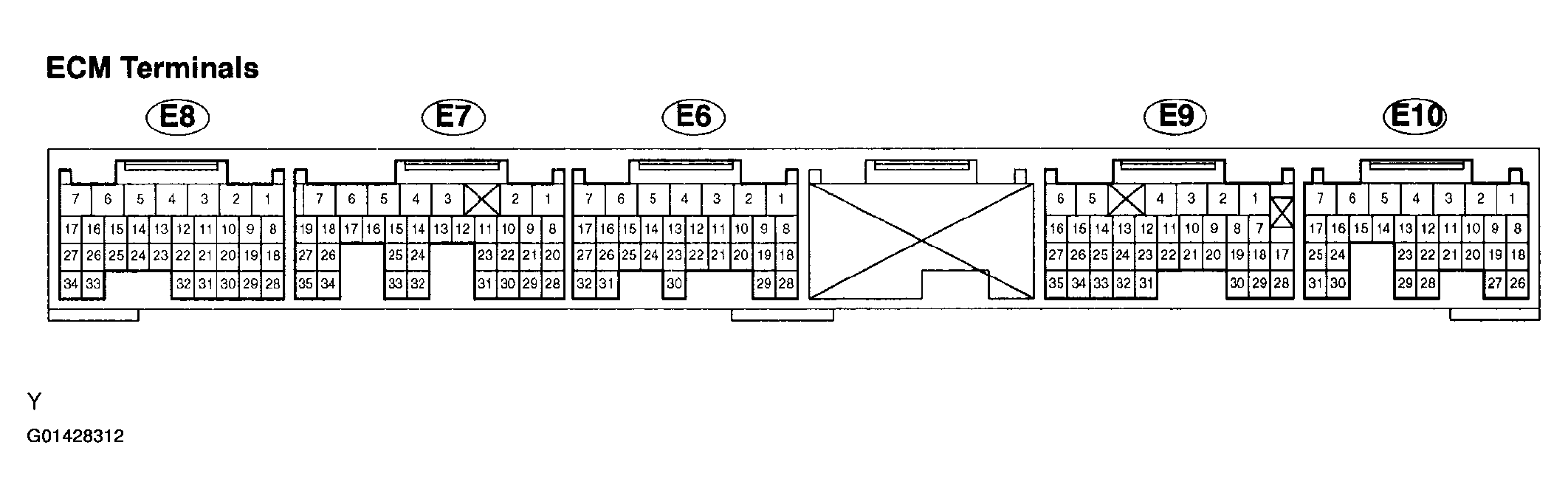

Fig 1: Identifying ECM Terminal

G01428312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

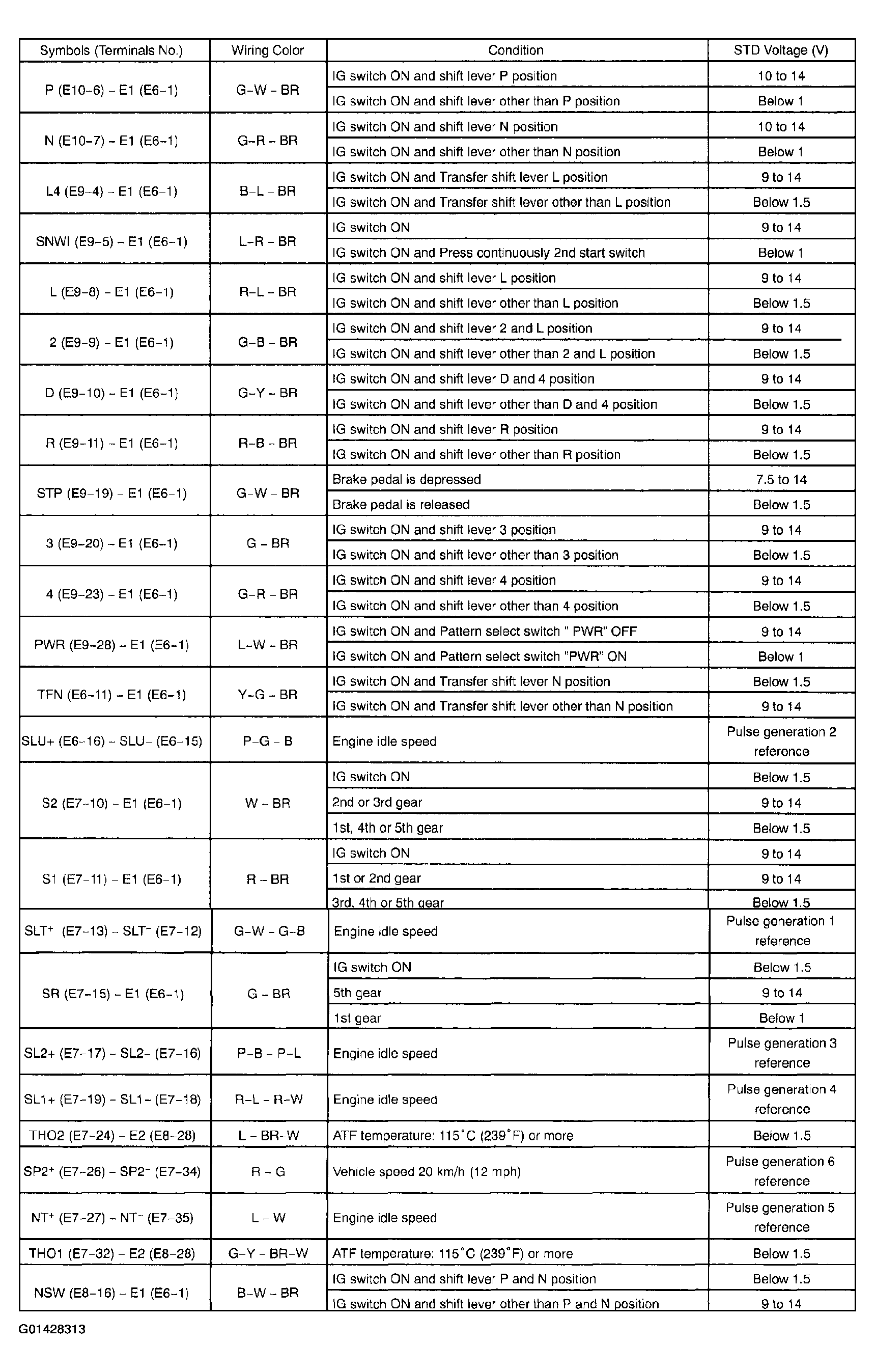

Fig 2: Wiring Colour Table

G01428313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 1

Reference:

Fig 3: Pulse Generation 1 Reference Table

G01428314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Pulse Generation 1

G01428315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 2

Reference:

Fig 5: Pulse Generation 2 Reference Table

G01428316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Pulse Generation 2

G01428317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 3

Reference:

Fig 7: Pulse Generation 3 Reference Table

G01428318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Pulse Generation 3

G01428319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 4

Reference:

Fig 9: Pulse Generation 4 Reference Table

G01428320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Pulse Generation 4

G01428321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 5

Reference:

Fig 11: Pulse Generation 5 Reference Table

G01428322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Identifying Pulse Generation 5

G01428323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 6

Reference:

Fig 13: Pulse Generation 6 Reference Table

G01428324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Identifying Pulse Generation 6

G01428325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
