On-Vehicle Repair

  1. REMOVE ENGINE NO. 2 UNDER COVER
  2. DRAIN ATF
  3. REMOVE OIL PAN

    NOTICE:

    Some fluid will remain in the oil pan.

    1. Remove the 20 bolts.
    2. Remove the oil pan gasket.

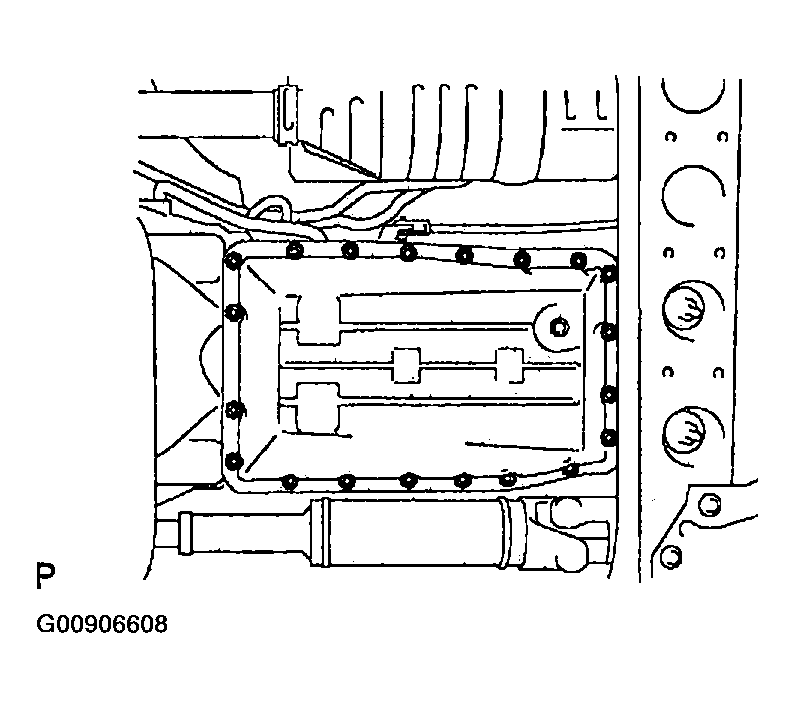

    Fig 1: Identifying Oil Pan Bolts
    G00906608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. EXAMINE PARTICLES IN PAN

    Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in transmission.

    Steel (magnetic)...bearing, gear and clutch plate wear Brass (non-magnetic)...bushing wear

  5. Fig 2: Removing Magnet & Checking Foreign Matter
    G00906609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OIL STRAINER

    Remove the 4 bolts, the oil strainer and the O-ring.

    NOTICE:

    Be careful as some fluid will come out with the oil strainer.

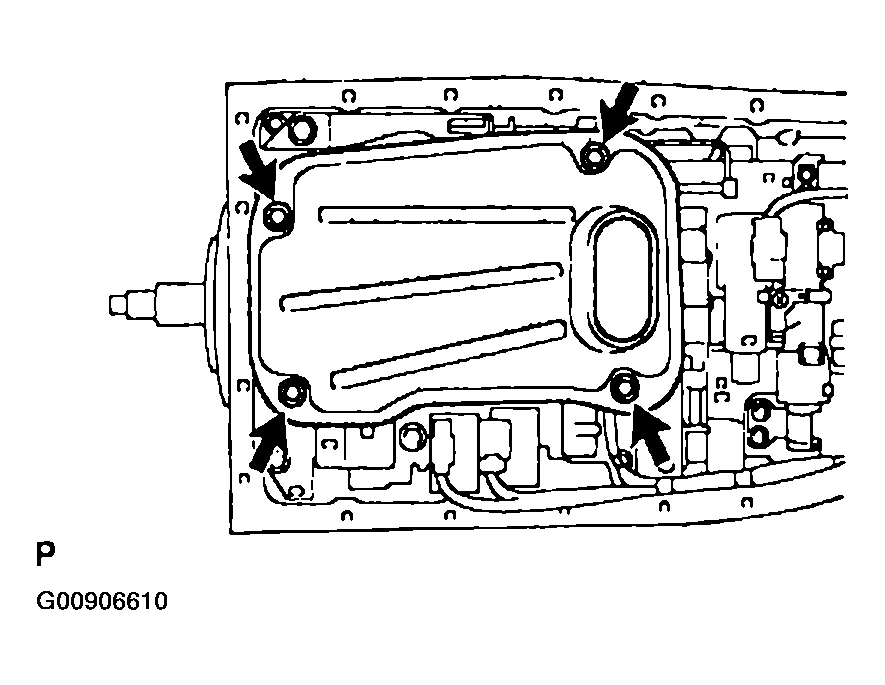

  7. Fig 3: Locating Oil Strainer Bolts
    G00906610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT TEMPERATURE SENSOR
    1. Disconnect the 7 solenoid connectors.
    2. Remove 2 bolts and the 2 temperature sensors clamp from the valve body.
    3. Disconnect the 2 temperature sensor from the valve body

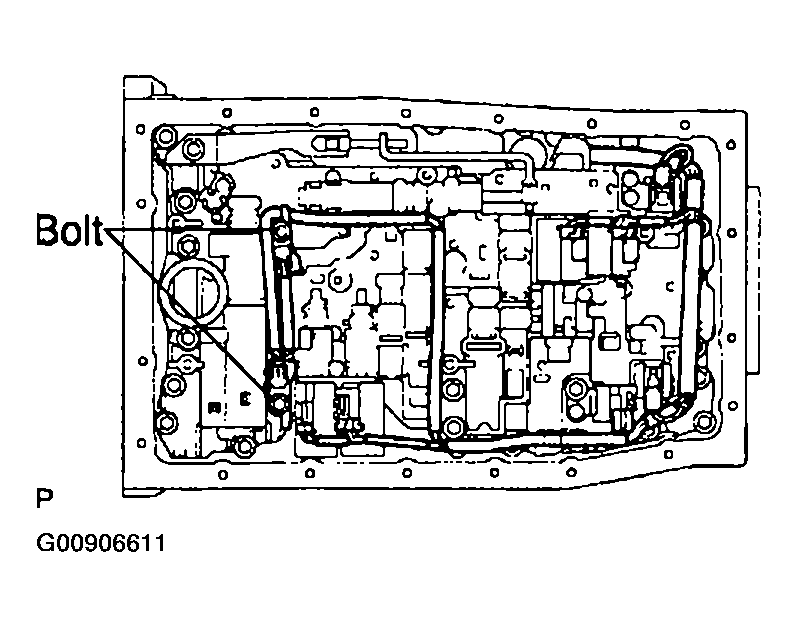

  9. Fig 4: Locating Bolts & Clamps Of Valve Body
    G00906611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT 7 CONNECTORS FROM SHIFT SOLENOID VALVES
  11. REMOVE VALVE BODY
    1. Remove the 19 bolts and the valve body.
    2. Remove the 3 drum seal gaskets.

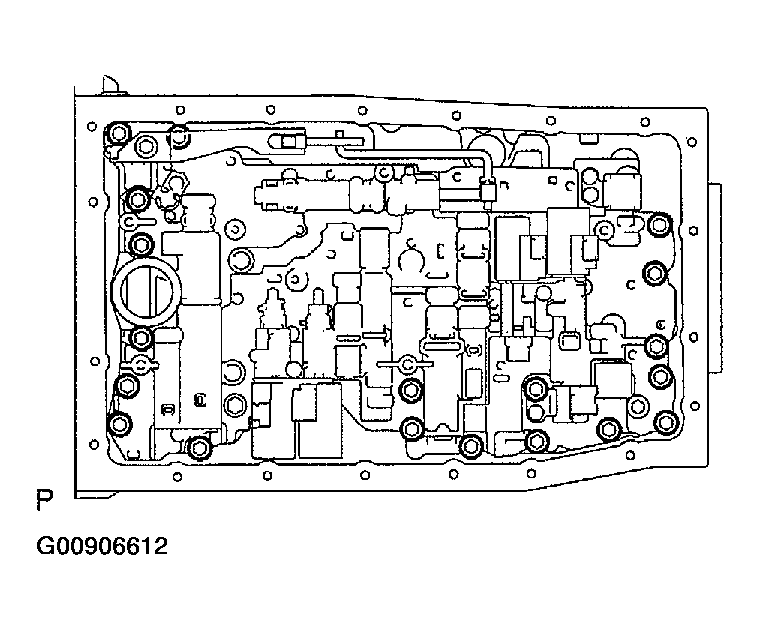

  12. Fig 5: Identifying Valve Body Bolts
    G00906612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE SOLENOID VALVE
    1. Remove the 2 bolts and the shift solenoid valve SR.
    2. Remove the 3 bolts and the shift solenoid valve S1 and S2.
    3. Remove the 2 bolts, 2 solenoid lock plates and the 4 straight pins.
    4. Remove the shift solenoid SL2 and the shift solenoid valve SLU.
    5. Remove the shift solenoid SL1 and the shift solenoid valve SLT.
    6. Remove the O-ring from the solenoid valve S2.

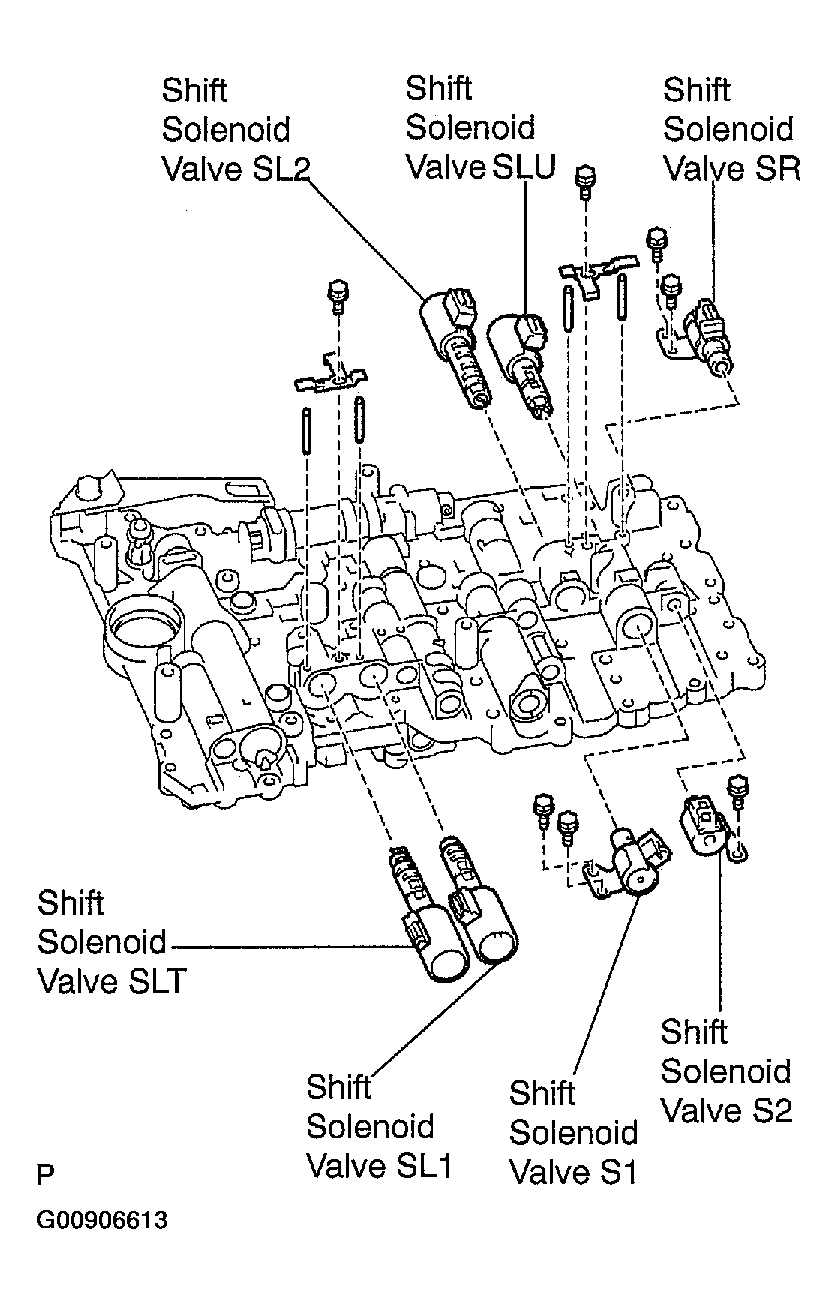

    7. Fig 6: Removing Solenoid Valve
      G00906613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL SOLENOID VALVE
    1. Install a new O-ring to shift solenoid valve S2.
    2. Install the shift solenoid SL1 and the shift solenoid valve SLT.
    3. Install the shift solenoid SL2 and the shift solenoid valve SLU.
    4. Install the 4 straight pins and the 2 solenoid lock plates with the 2 bolts.
      1. Torque: 6.4 N.m (65 kgf.cm, 57 in.lbf)
    5. Install the shift solenoid valve S1 and S2 with the 2 bolts.
      1. Torque: 6.4 N.m (65 kgf.cm, 7 ft.lbf)
    6. Install the shift solenoid valve SR with the 2 bolts.
      1. Torque: 6.4 N.m (65 kgf.cm, 5.7 ft.lbf)
  15. INSTALL VALVE BODY

    HINT:

    Align the groove of the manual valve with the pin of the lever.

    1. Install the 3 new drum seal gaskets to the transmission case.

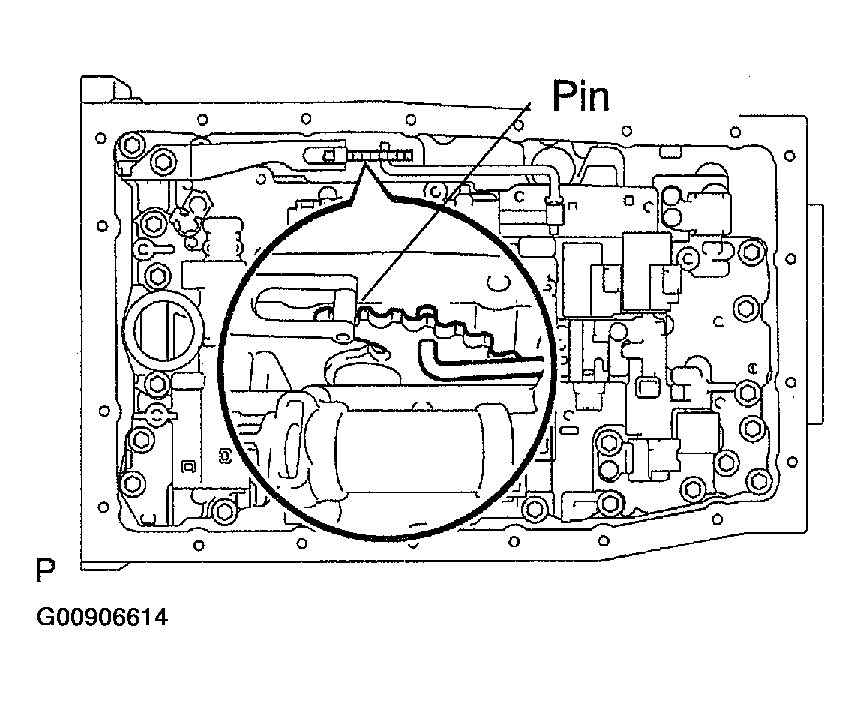

    2. Fig 7: Installing Valve Body & Aligning Groove Of Manual Valve With Pin Of Lever
      G00906614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 19 bolts and the valve body.

      Torque:

      1. Bolt A & B: 11 N.m (110 kgf.cm, 8 ft.lbf)
      2. Bolt length:
      3. Bolt A: 25 mm (0.98 in.)
      4. Bolt B: 36 mm (1.42 in.)

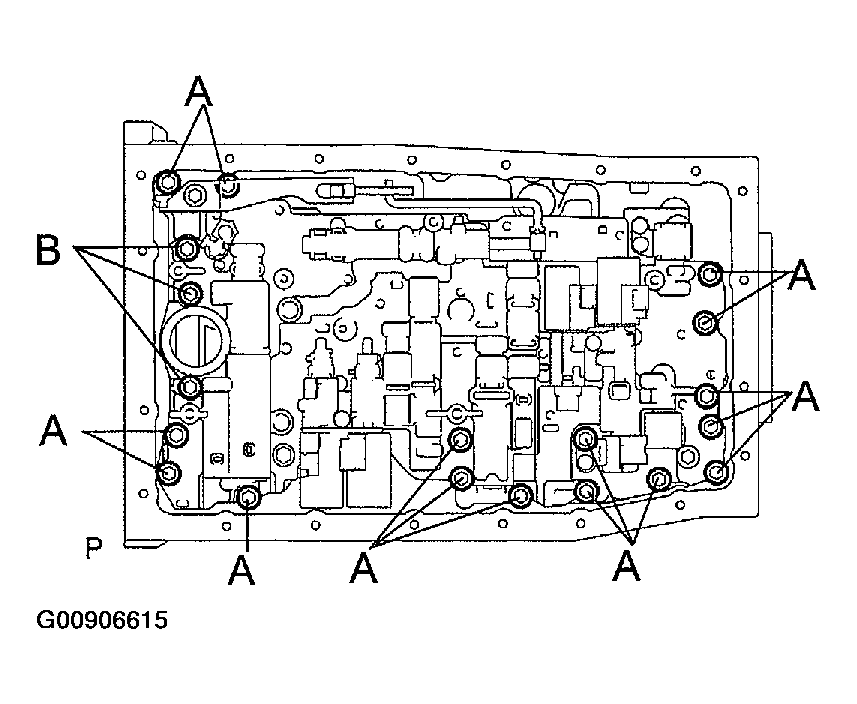

  16. Fig 8: Installing Valve Body Bolts
    G00906615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. CONNECT TEMPERATURE SENSOR

    Connect the 2 temperature sensors to the valve body, and install the 2 temperature sensors clamp with the 2 bolts.

    Torque:

    1. A: 11 N.m (112 kgf.cm, 8 ft.lbf)
    2. B: 10 N.m (100 kgf.cm, 7 ft.lbf)
    3. Bolt length:
    4. Bolt A: 36 mm (1.42 in.)
    5. Bolt B: 12 mm (0.47 in.)

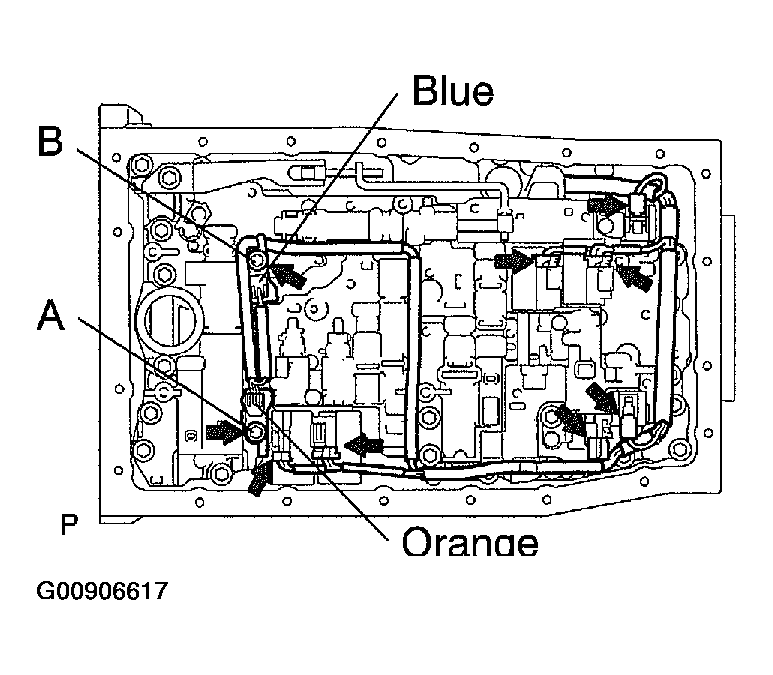

    6. Fig 9: Installing 2 Temperature Sensors Clamp
      G00906617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Sensor wire harness:

    Fig 10: Wiring Harness & Color Identification Table
    G00906616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. CONNECT 7 CONNECTORS TO SHIFT SOLENOID VALVES
  19. INSTALL OIL STRAINER
    1. Install a new O-ring.
    2. Install the oil strainer with the 4 bolts.
      1. Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

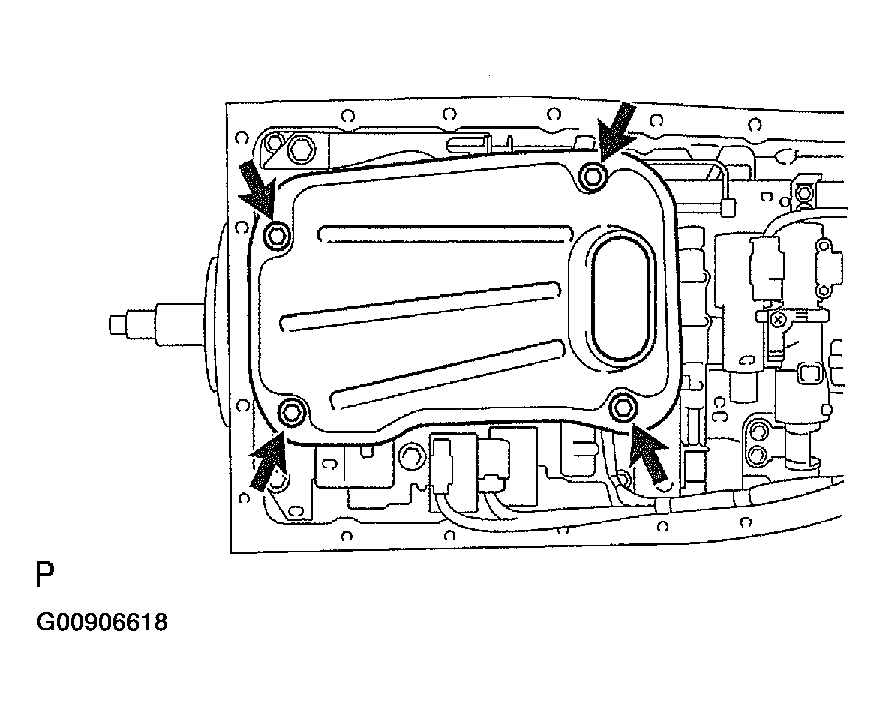

  20. Fig 11: Installing Oil Strainer Bolts
    G00906618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL OIL PAN

    HINT:

    Remove any packing material, and be careful not to spill oil on the contacting surfaces of the transmission case and the oil pan.

    1. Install a new gasket and oil pan.
    2. Install the 20 bolts and oil pan.
      1. Torque: 4.4 N.m (45 kgf.cm, 39 in.lbf)

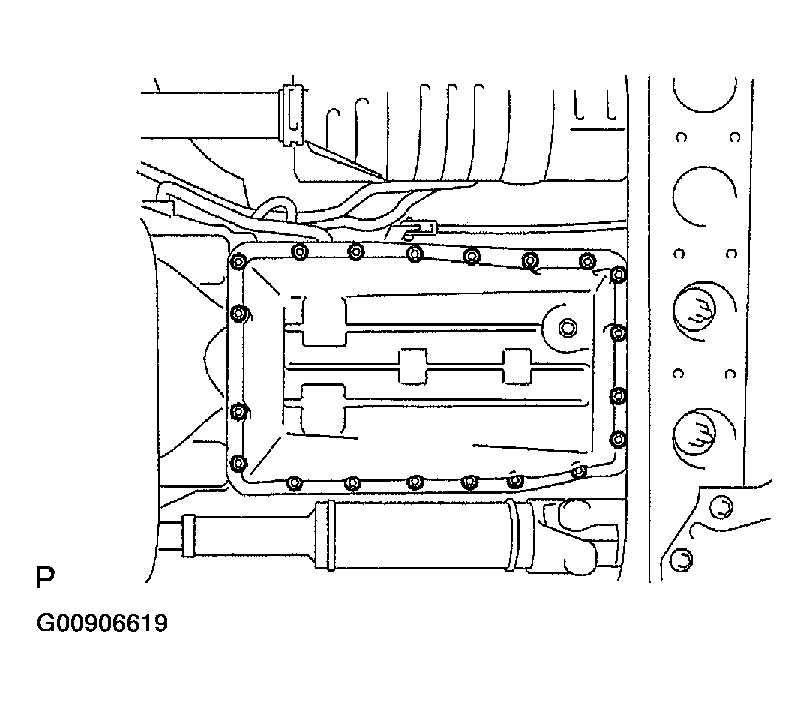

  22. Fig 12: Installing Oil Pan Bolts
    G00906619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. FILL ATF AND CHECK ATF LEVEL
    1. Install a new gasket and a drain plug.
      1. Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
    2. Remove the refill plug.
    3. Fill new fluid through the refill hole (See PRE-CHECK ).
  24. INSTALL ENGINE NO. 2 UNDER COVER
