Floor Shift Assembly: Removal

  1. REMOVE TRANSFER SHIFT LEVER KNOB
  2. REMOVE UPPER CONSOLE PANEL (See  INSTRUMENT PANEL  )
  3. SEPARATE NO. 1 FLOOR SHIFT GEAR SHIFTING ROD
    1. Shift into the N position.
    2. Remove the nut and separate the No. 1 floor shift gear shifting rod from the connecting rod swivel.
    4. Fig 1: Locating Floor Shift Gear Shifting Rod Nut
    G00906639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FLOOR SHIFT LEVER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 6 bolts.
      1. Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
    3. Remove the floor shift lever assembly.

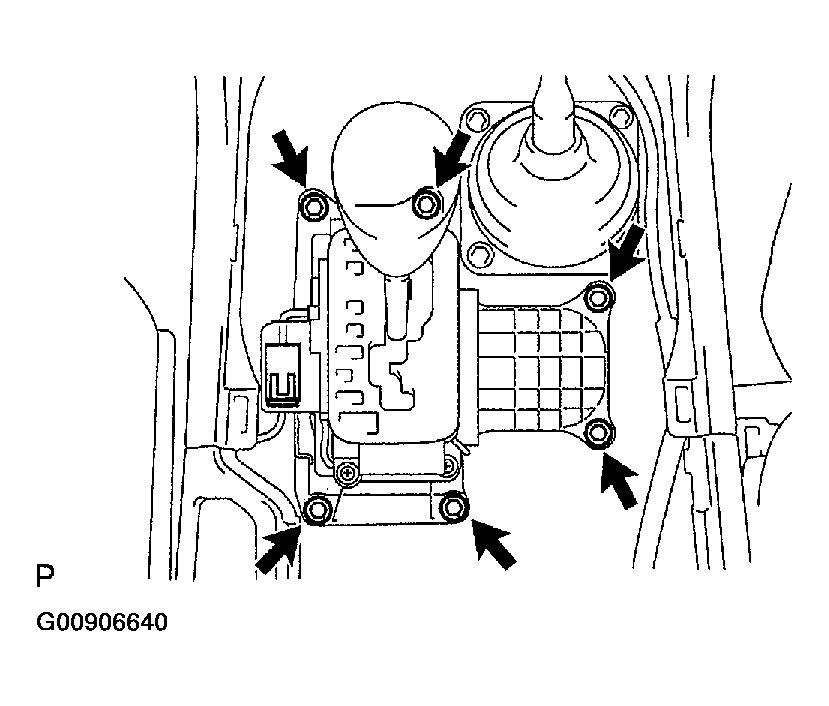

    5. Fig 2: Locating Floor Shift Lever Assembly Bolts
    G00906640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
