Floor Shift Assembly: Installation

  1. INSTALL FLOOR SHIFT LEVER ASSEMBLY
    1. Install the floor shift lever assembly with the 6 bolts.
      1. Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
    2. Connect the connector to the floor shift lever assembly.

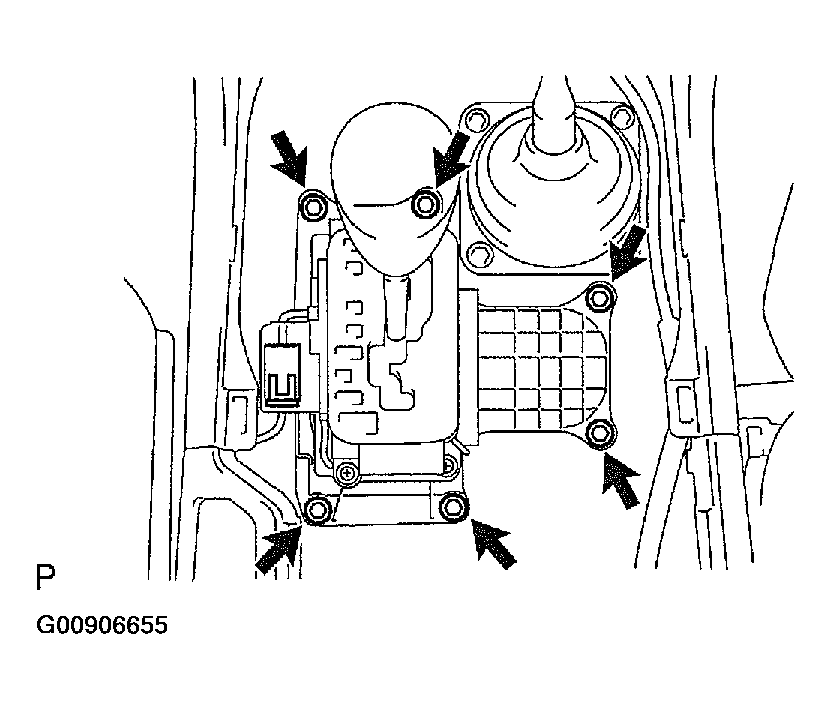

    2. Fig 1: Locating Bolts Floor Shift Lever Assembly
    G00906655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FLOOR SHIFT GEAR SHIFTING ROD
    1. Shift into the N position.
    2. Connect the No. 1 floor shift gear shifting rod and the connecting rod swivel with the nut.
      1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
  3. INSTALL UPPER CONSOLE PANEL (See  INSTRUMENT PANEL  )
  4. INSTALL TRANSFER SHIFT LEVER KNOB
    5. Fig 2: Locating Nut
    G00906656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
