Automatic Transmission Unit: Installation

CHECK TORQUE CONVERTER CLUTCH INSTALLATION
Using calipers and a straight edge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.
1. Correct distance: More than 17.1 mm (0.0673 in.)
TRANSMISSION INSTALLATION
Installation is in the reverse order of removal (See REMOVAL ).

HINT:
- Transmission control rod and park/neutral position switch (See PRE-CHECK )
- ATF level (See PRE-CHECK )
- Conduct the road test of the vehicle (See PRE-CHECK )

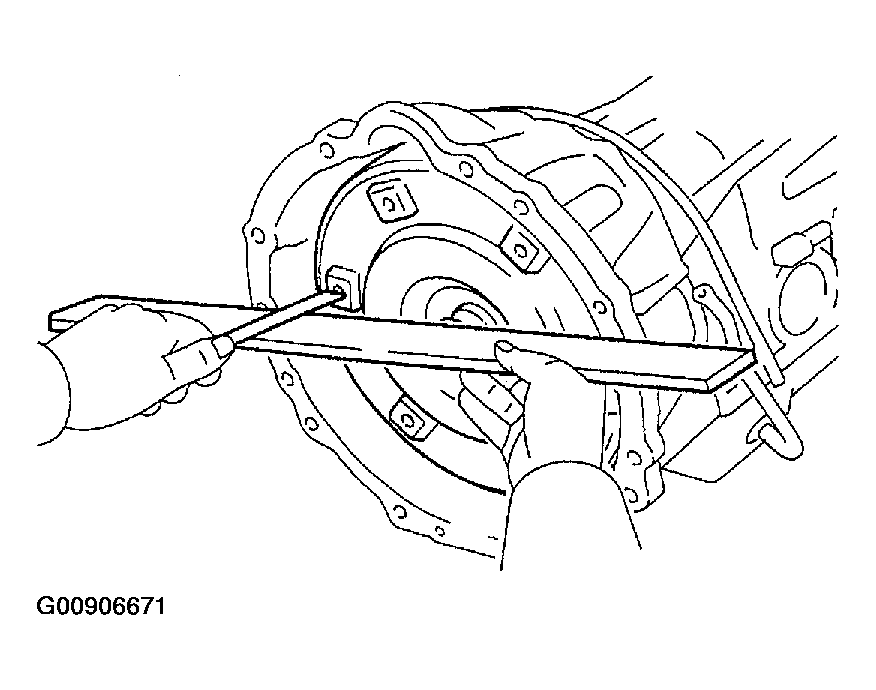

Fig 1: Measuring Distance From Surface Of Transmission Housing To Surface Of Torque Converter Clutch
