Control Valve Assembly: Removal

DISCONNECT CONNECTOR

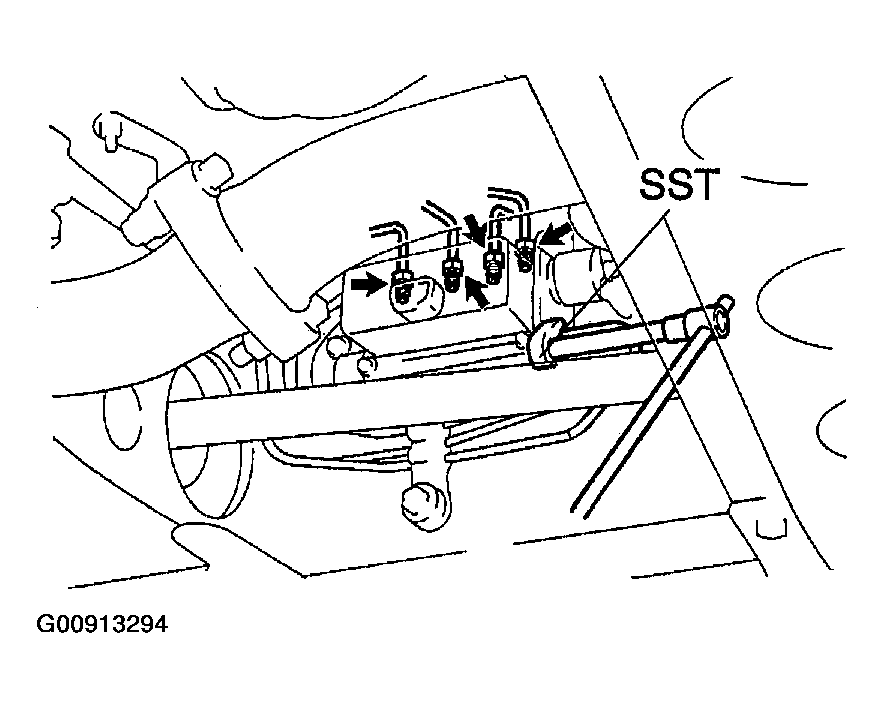

Fig 1: Disconnecting 5 AHC Fluid Lines From Control Valve Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT AHC FLUID LINES
Using SST, disconnect the 5 AHC fluid lines from the control valve assembly.
1. SST 09023-00100
2. Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
REMOVE CONTROL VALVE ASSEMBLY
1. Remove the 3 nuts and control valve assembly.
  1. Torque: 5.5 N.m (55 kgf.cm, 48 in.lbf)
2. Remove the 3 holders, cushions and cushion bolts from the control valve assembly.
  1. Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
3. Remove the 4 bolts and cover.
  1. Torque: 4.4 N.m (45 kgf.cm, 38 in.lbf)
4. Remove the gasket.
  HINT:

  At the time of installation, replace the used gasket with a new one.
