Power Steering Vane Pump: Installation

  1. INSTALL PS VANE PUMP ASSEMBLY

    Torque the 3 bolts.

    1. Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)
  2. INSTALL PRESSURE FEED TUBE

    Install new gaskets on each side of the tube and torque the union bolt.

    1. Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

    HINT:

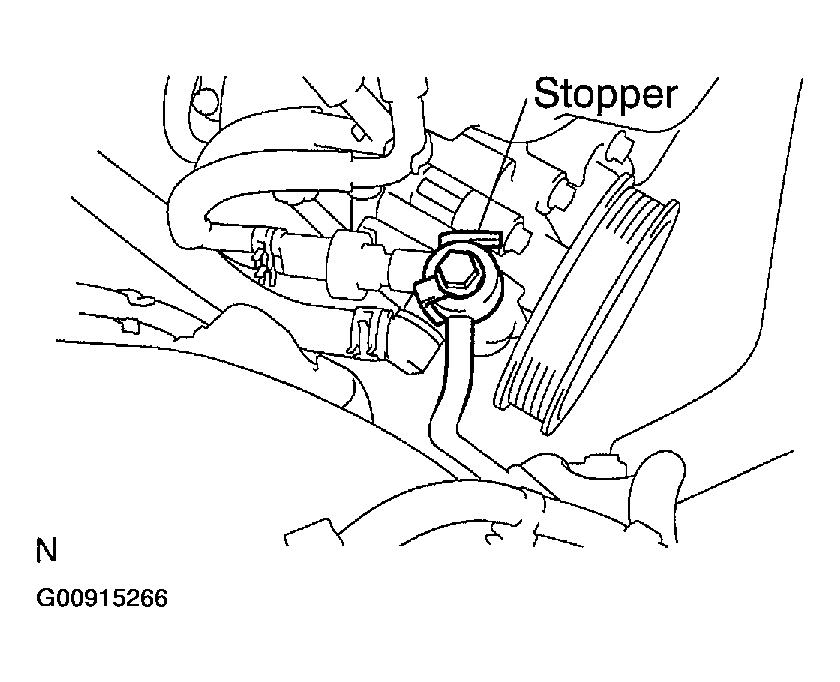

    Make sure that the stopper of the tube touches the PS vane pump body as shown in Fig 1 , then torque the bolt.

    Fig 1: Installing Pressure Feed Tube
    G00915266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT RETURN HOSE

    Install the clip.

  4. CONNECT 2 VACUUM HOSES

    Install the 2 clips.

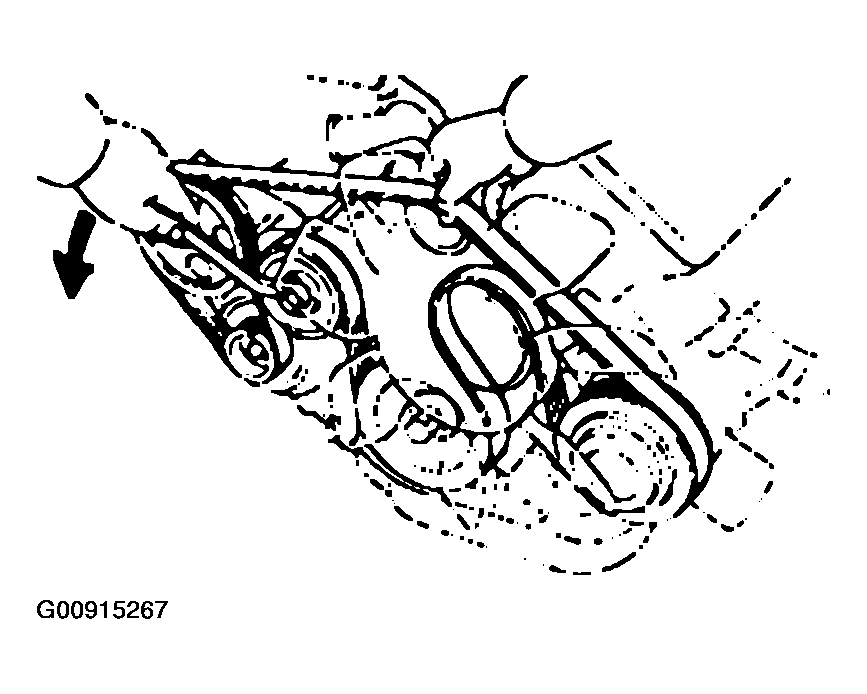

    Fig 2: Installing Drive Belt
    G00915267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL DRIVE BELT

    Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.

  6. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    1. Tighten the 3 bolts.
    2. Tighten the clamp.
    3. Connect the hose.
    4. Connect the MAF meter connector.
  7. INSTALL NO. 2 ENGINE UNDER COVER

    Tighten the 8 bolts.

  8. INSTALL NO. 1 ENGINE UNDER COVER

    Tighten the 6 bolts.

  9. BLEED POWER STEERING SYSTEM (See  BLEEDING  )
