Service Data

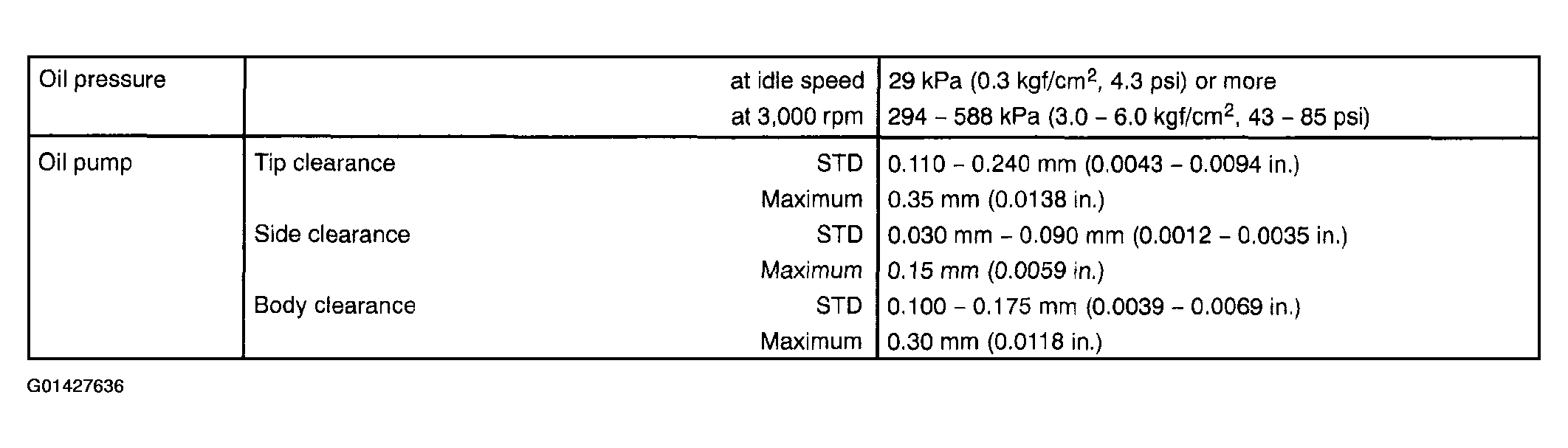

Fig 1: Lubrication Service Specifications

G01427636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
