Troubleshooting No. 3

DRIVE MONITOR FUNCTION MALFUNCTION
1. Check that the battery positive voltage is 10 - 16 V.
  If voltage is not as specified, replace the battery.
2. Troubleshoot the drive monitor function as follows.
  HINT:

  Inspect the connector on the wire harness side.

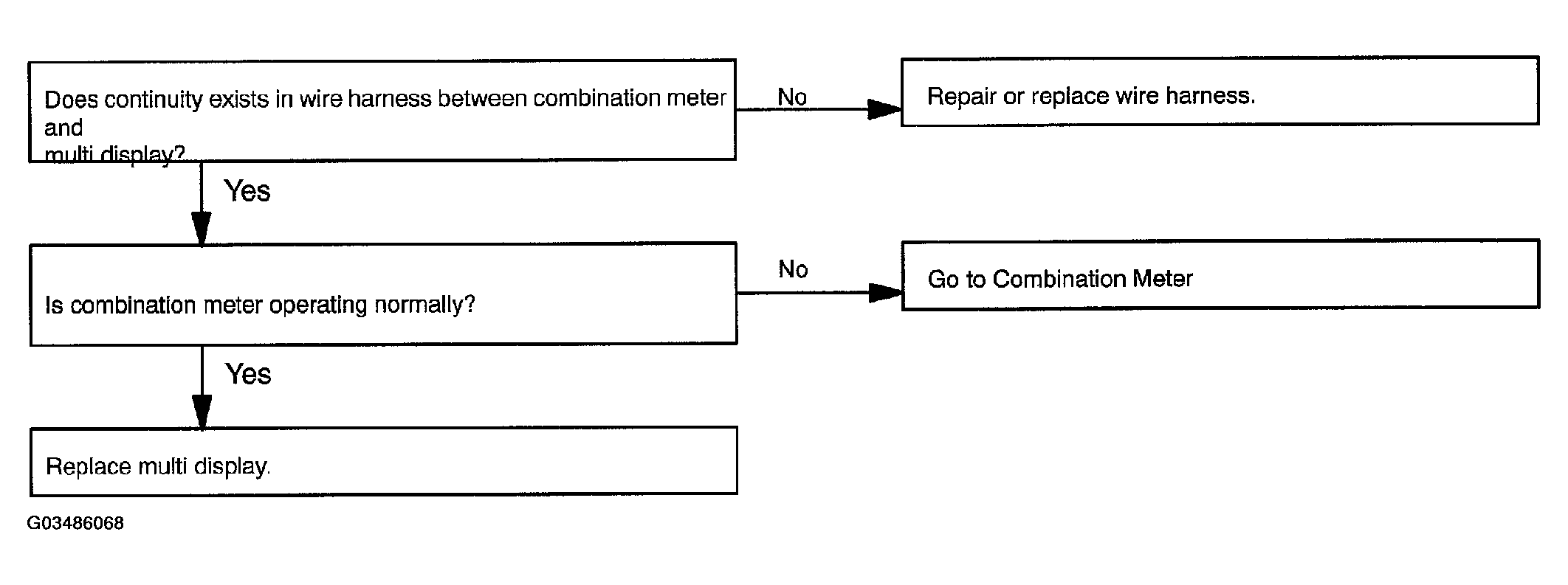

  Fig 1: Drive Monitor Function Malfunction Flow Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
